Instrument Cluster

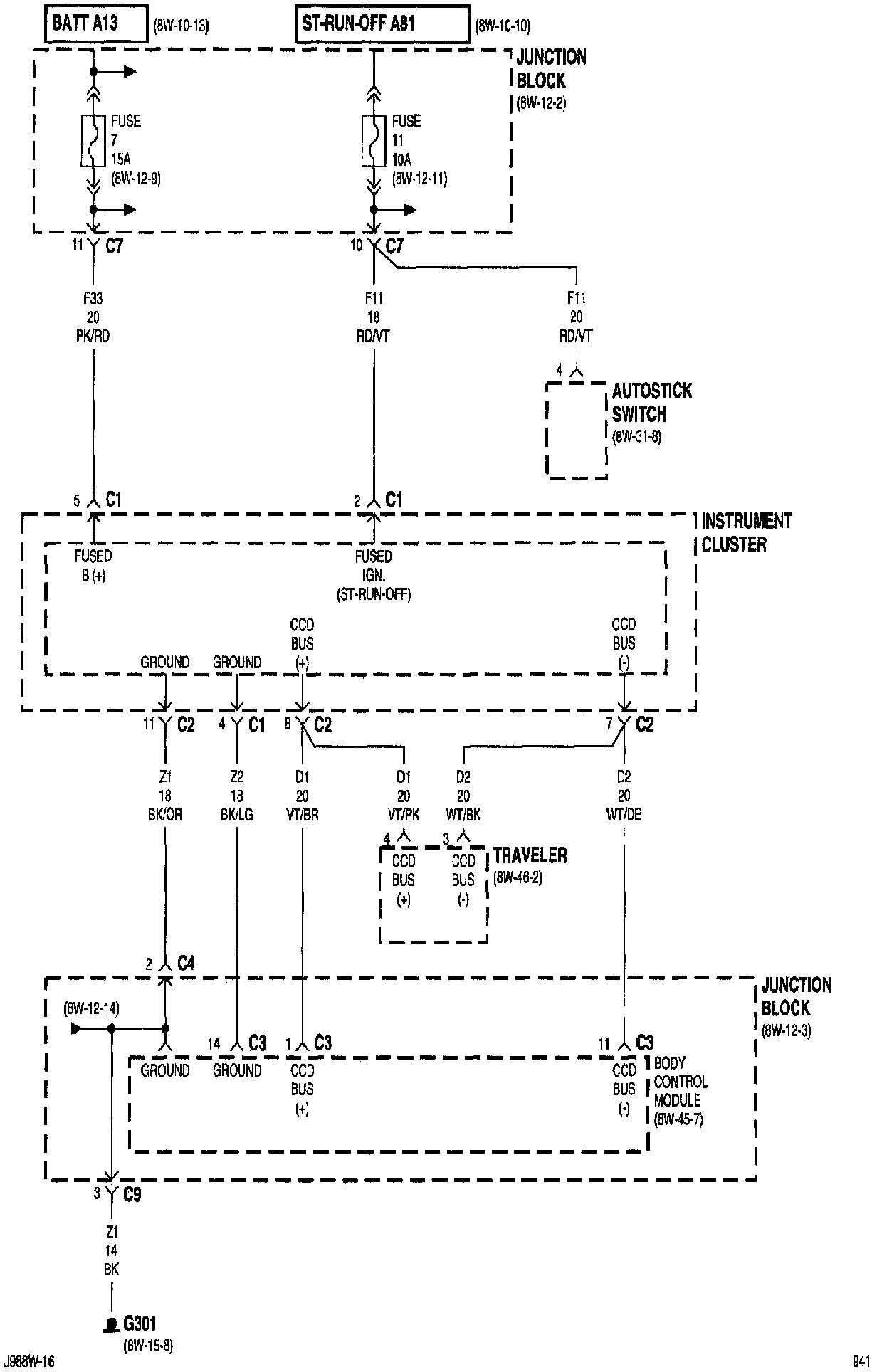

Instrument Cluster (Part 1 Of 7):

Autostick Switch
Body Control Module
Fuse 7 (JB)
Fuse 11 (JB)
G301
Instrument Cluster
Junction Block
Traveler

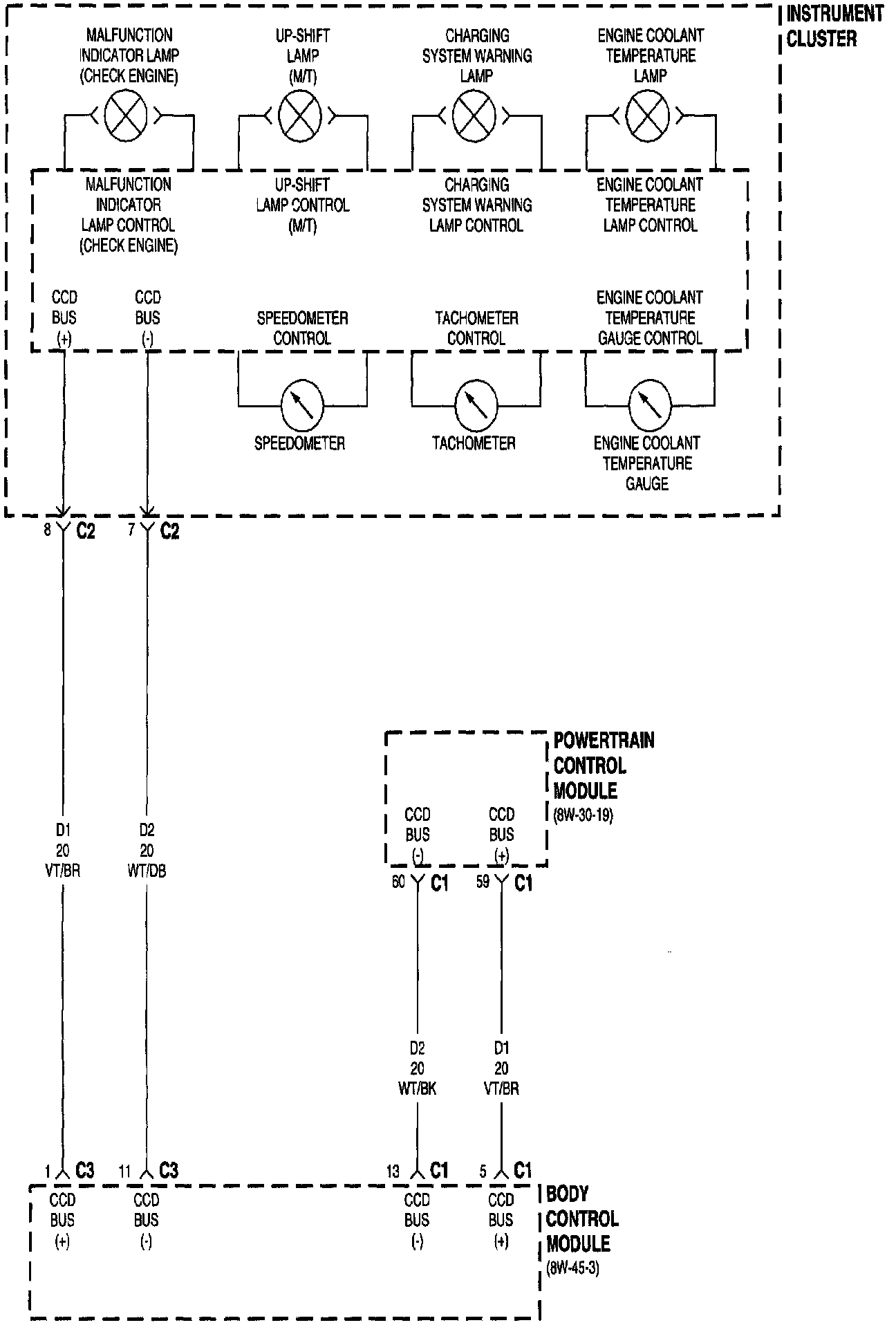

Instrument Cluster (Part 2 Of 7):

Body Control Module
Charging System Warning Lamp
Engine Coolant Temperature
Gauge
Instrument Cluster
Lamp
Malfunction Indicator Lamp (Check Engine)
Powertrain Control Module
Speedometer
Tachometer
Up-Shift Lamp

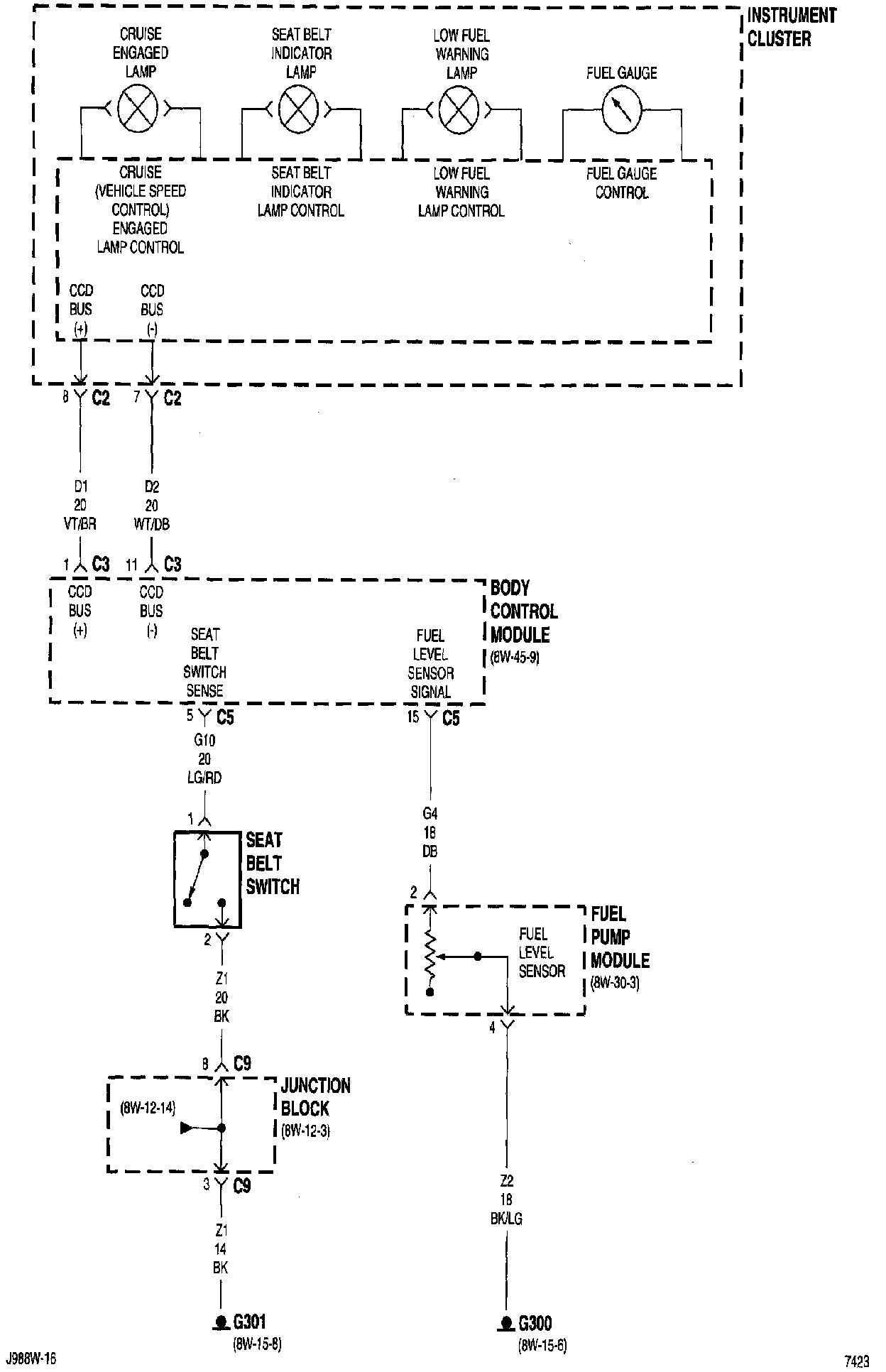

Instrument Cluster (Part 3 Of 7):

Body Control Module
Cruise Engaged Lamp
Fuel Gauge
[1][2]Fuel Level Sensor
Fuel Pump Module
G300
G301
Instrument Cluster
Junction Block
Low Fuel Warning Lamp
Seat Belt Indicator Lamp
Seat Belt Switch

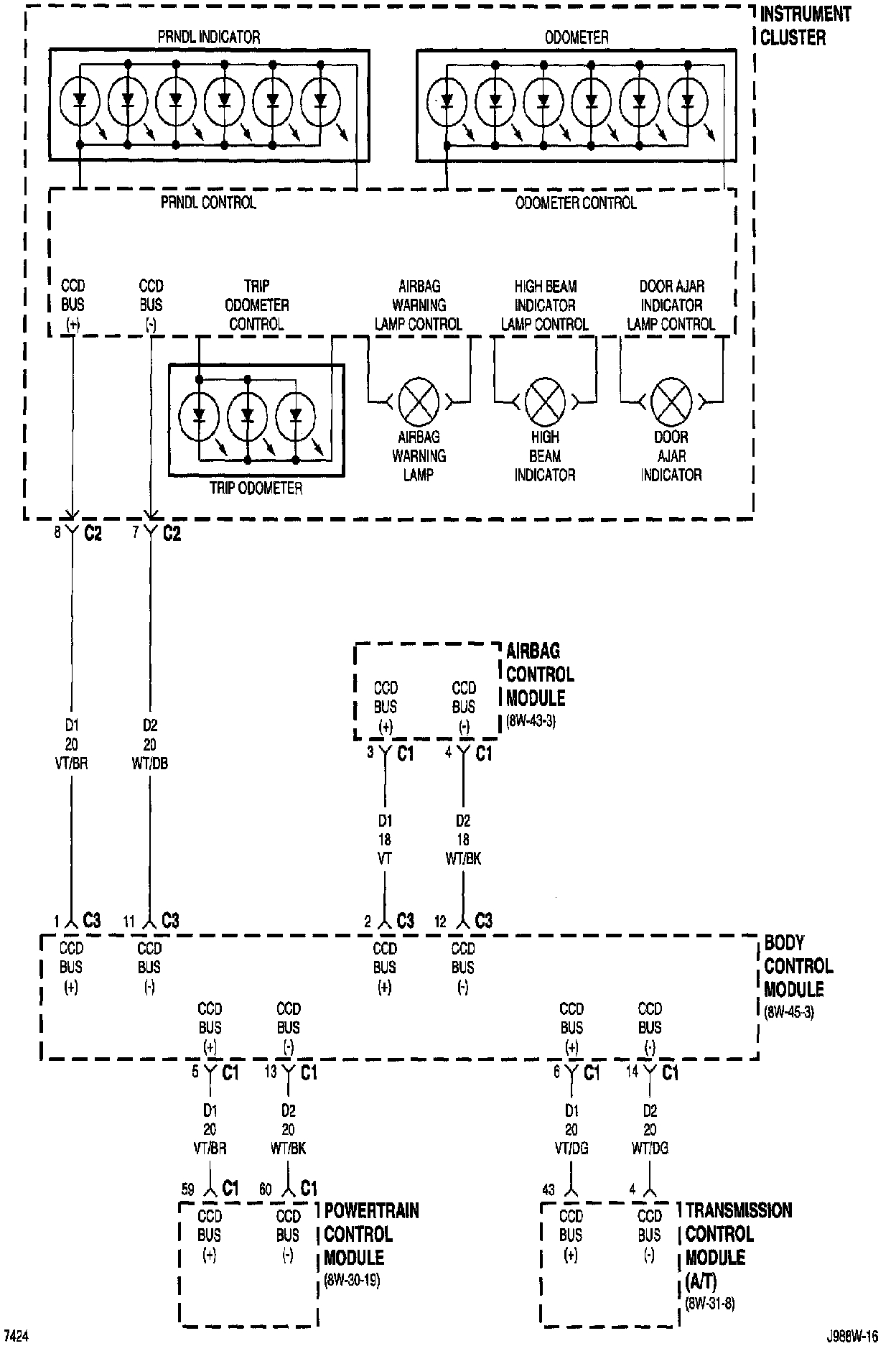

Instrument Cluster (Part 4 Of 7):

Airbag Control Module
Airbag Warning Lamp
Body Control Module
Door Ajar Indicator
High Beam Indicator
Instrument Cluster
Odometer
Powertrain Control Module
PRNDL Indicator
Transmission Control Module
Trip Odometer

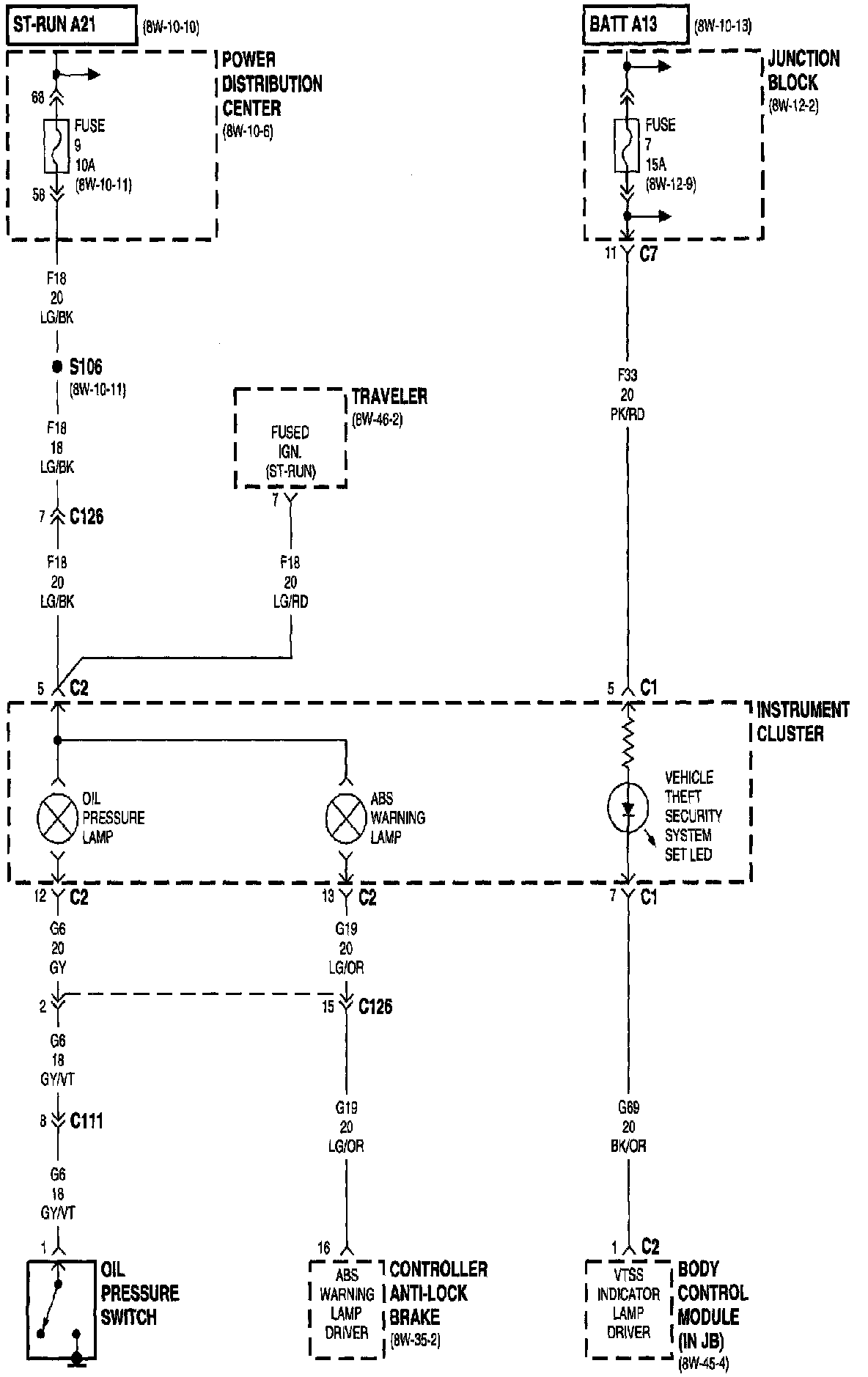

Instrument Cluster (Part 5 Of 7):

ABS Warning Lamp
Body Control Module
Controller Anti-Lock Brake
Fuse 7 (JB)
Fuse 9 (PDC)
Instrument Cluster
Junction Block
Oil Pressure Lamp
Oil Pressure Switch
Power Distribution Center
Traveler
Vehicle Theft Security System Set Led

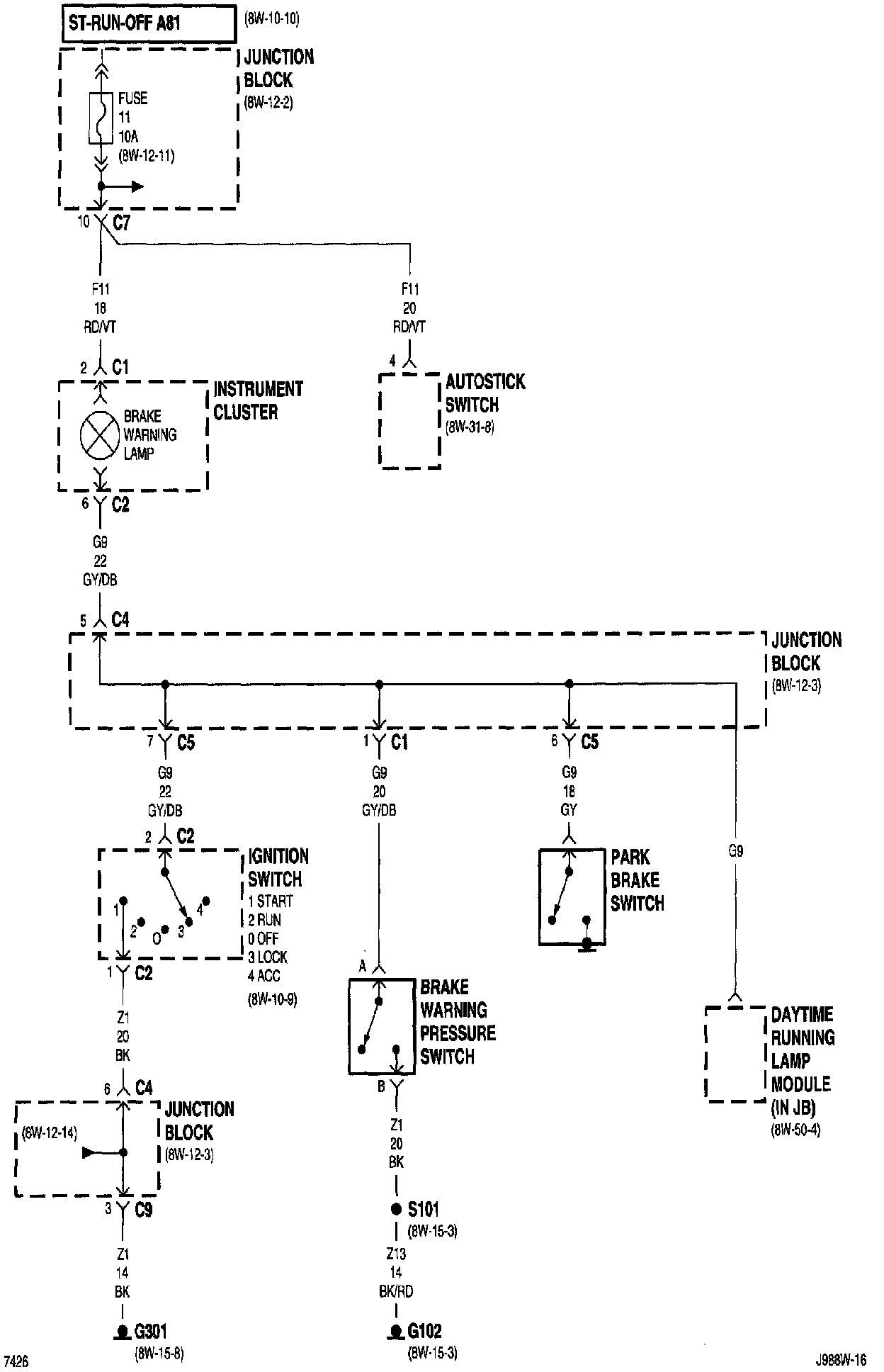

Instrument Cluster (Part 6 Of 7):

Autostick Switch
Brake Warning Lamp
Brake Warning Pressure Switch
Daytime Running Lamp Module
Fuse 11 (JB)
G102
G301
Ignition Switch
Instrument Cluster
Junction Block
Park Brake Switch

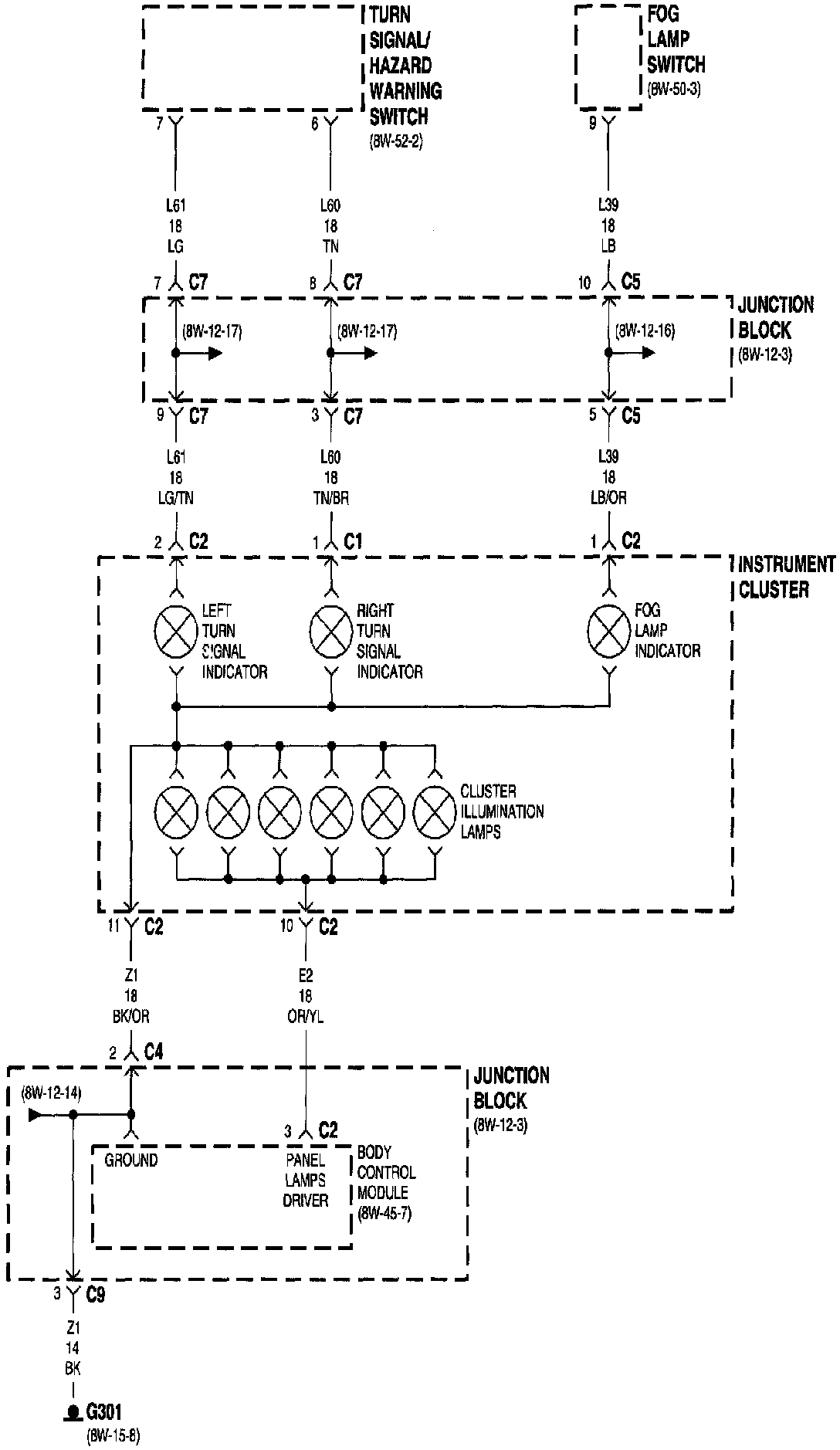

Instrument Cluster (Part 7 Of 7):

Body Control Module
Cluster Illumination Lamps
Fog Lamp Indicator
Fog Lamp Switch
G301
Instrument Cluster
Junction Block
Left Turn Signal Indicator
Right Turn Signal Indicator
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
