Front Crankshaft Seal: Service and Repair
REMOVALCrankshaft Damper-Removal:

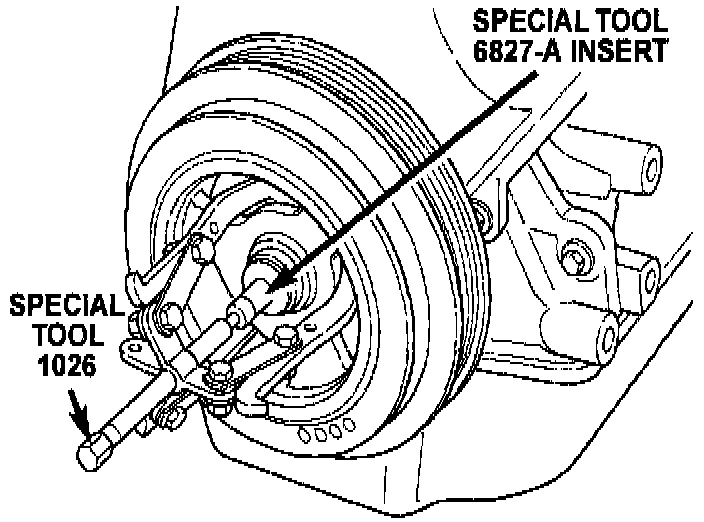

1. Using Special Tool 1026 and Insert 6827--A remove crankshaft damper.
2. Remove outer timing belt cover and timing belt.
Crankshaft Sprocket-Removal:

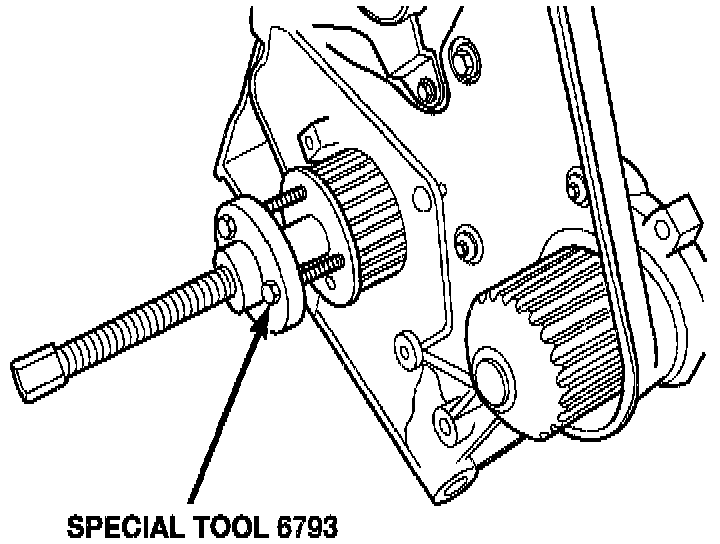

3. Remove crankshaft sprocket using Special Tool 6793 and insert C-4685-C2.
CAUTION: Do not nick shaft seal surface or seal bore.
Front Crankshaft Oil Seal-Removal:

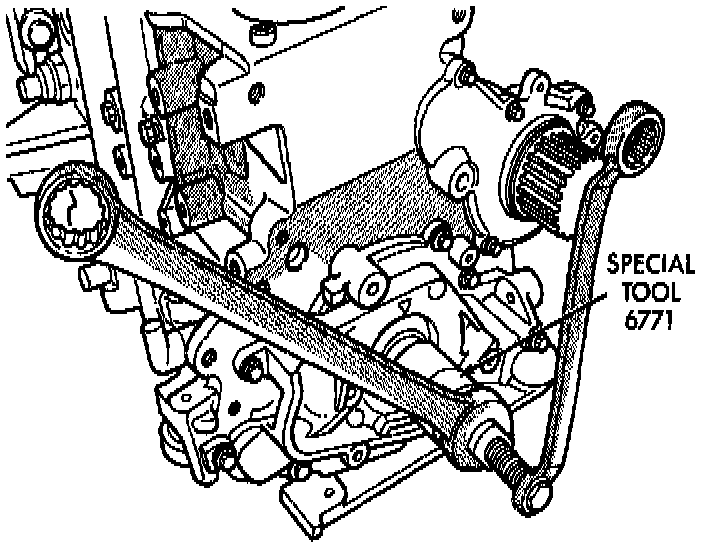

4. Using Tool 6771 to remove front crankshaft oil seal. Do not damage the seal contact area in the crankshaft.
INSTALLATION
Front Crankshaft Oil Seal-Installation:

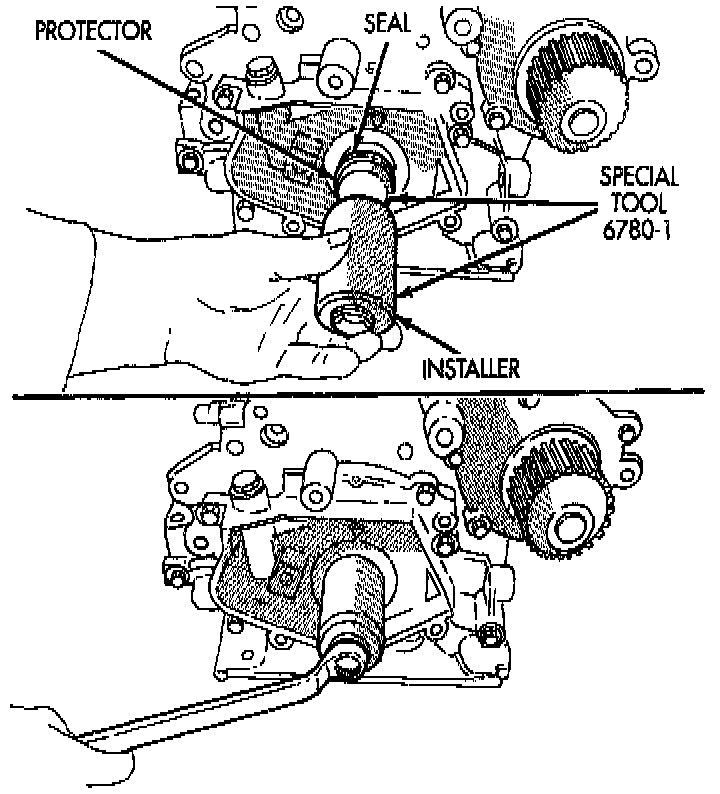

1. Install new seal by using Tool 6780-1.
2. Place seal into opening with seal spring towards the inside of engine. Install seal until flush with cover.
Crankshaft Sprocket-Installation:

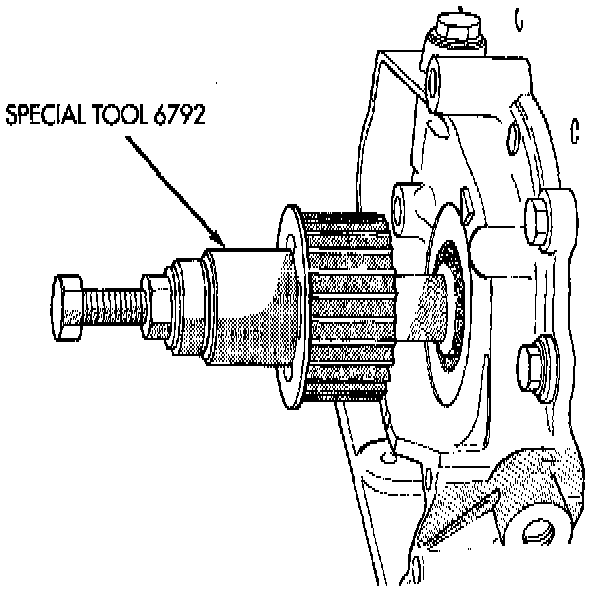

3. Install crankshaft sprocket. Using Special Tool 6792.
NOTE: Make sure the word "front" on the sprocket is facing you.
4. Install timing belt and covers.
Crankshaft Damper-Installation:

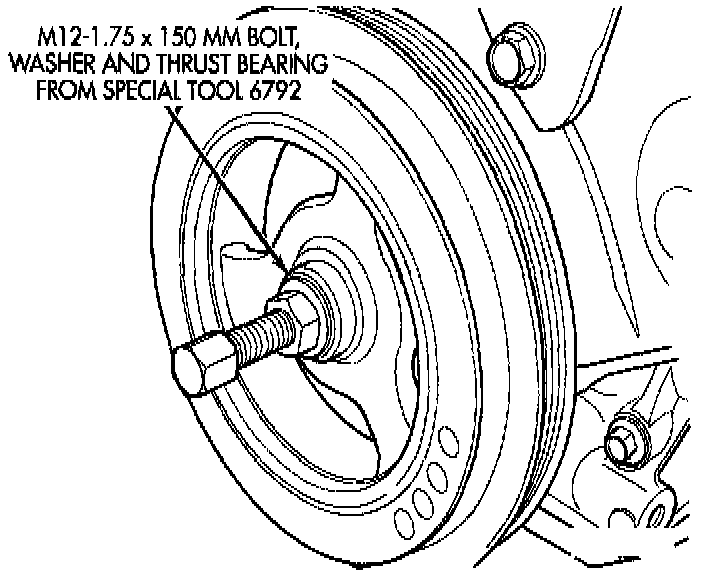

5. Install crankshaft damper. Use thrust bearing/washer and 12M-1.76 x 150 mm bolt from Special Tool 6792. Install crankshaft damper bolt and tighten to 142 Nm (105 ft. lbs.).
