Left Mount

NOTE: If centering or adjusting the engine/transmission assembly is needed.

The left side engine mount is a Hydro-Mount and may show surface cracks. This will not effect it's performance and should not be replaced. Only replace the Hydro-Mount when it's leaking fluid.

REMOVAL
1. Support the transmission with a transmission jack.

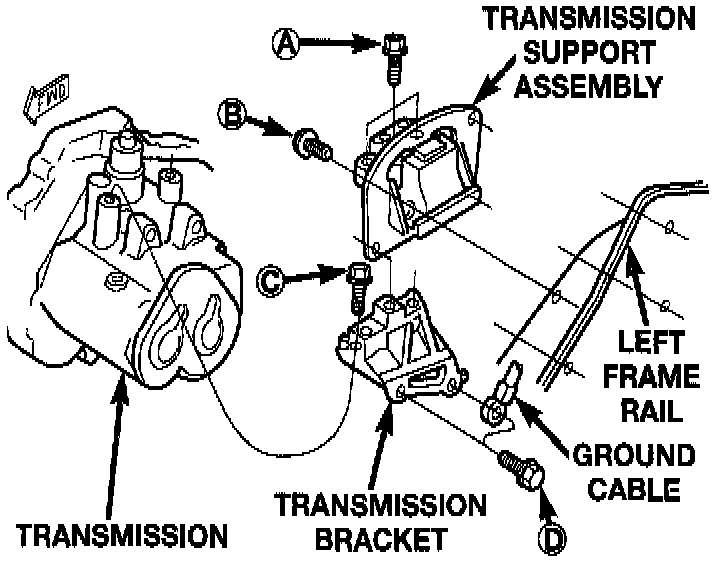

Left Side Mount-Typical:

2 Remove the three vertical bolts (A) from the mount to the transmission bracket.
3 Remove the mount to frame rail fasteners (B) and remove mount.

INSTALLATION

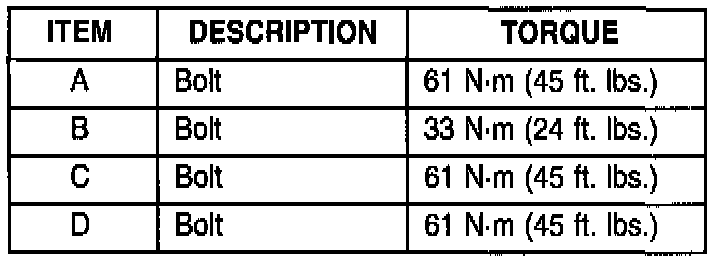

1. Install mount. Tighten mount to frame rail fasteners (B) to 33 Nm (24 ft. lbs.).
2 Install mount to transmission bracket vertical bolts (A). Tighten to 61 Nm (45 ft. lbs.).
