Home >> Dodge >> 1998 >> Stratus L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Standard Radio

Standard Radio

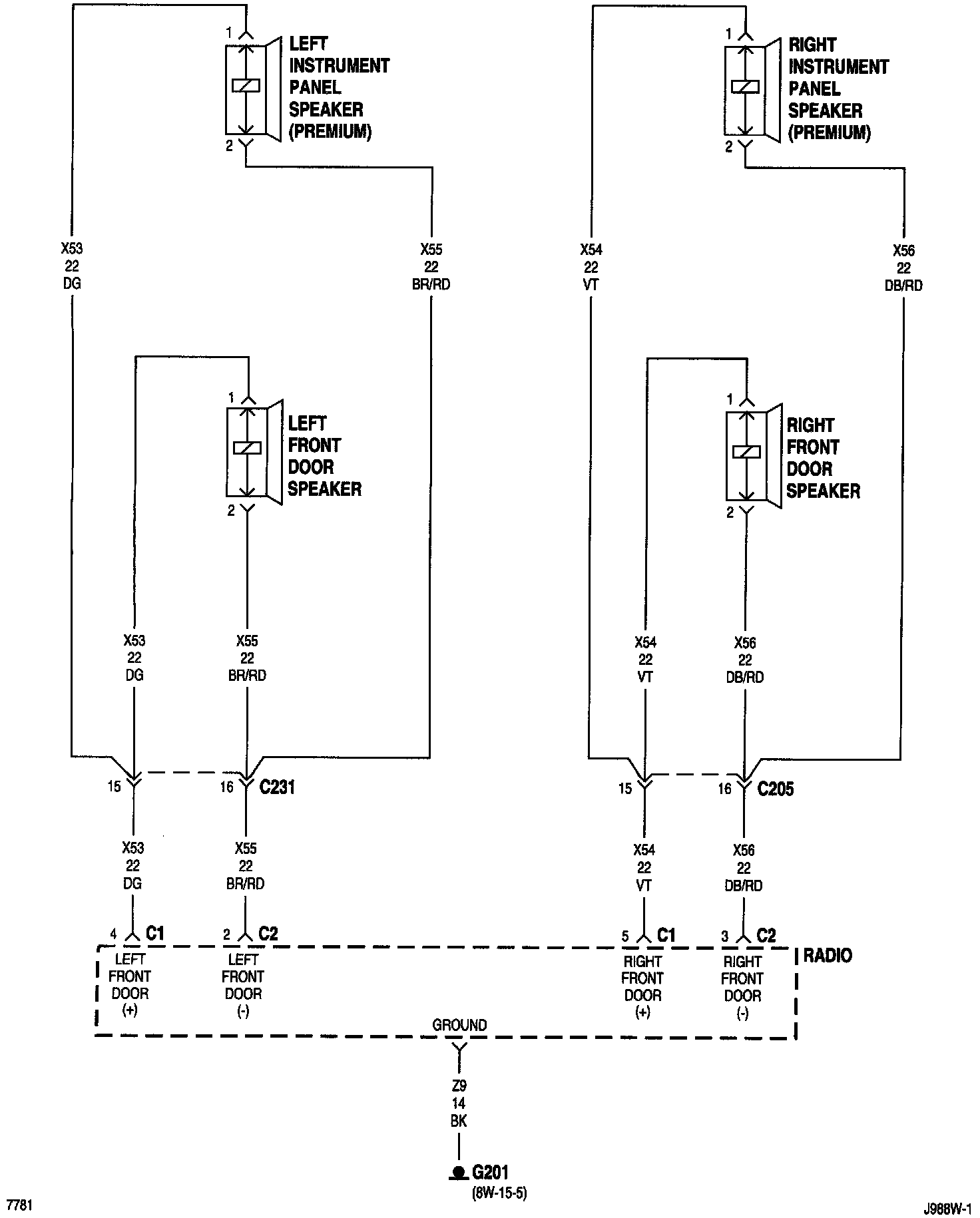

Audio Systems (Part 2 Of 3):






NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
