Power Distribution: Diagrams

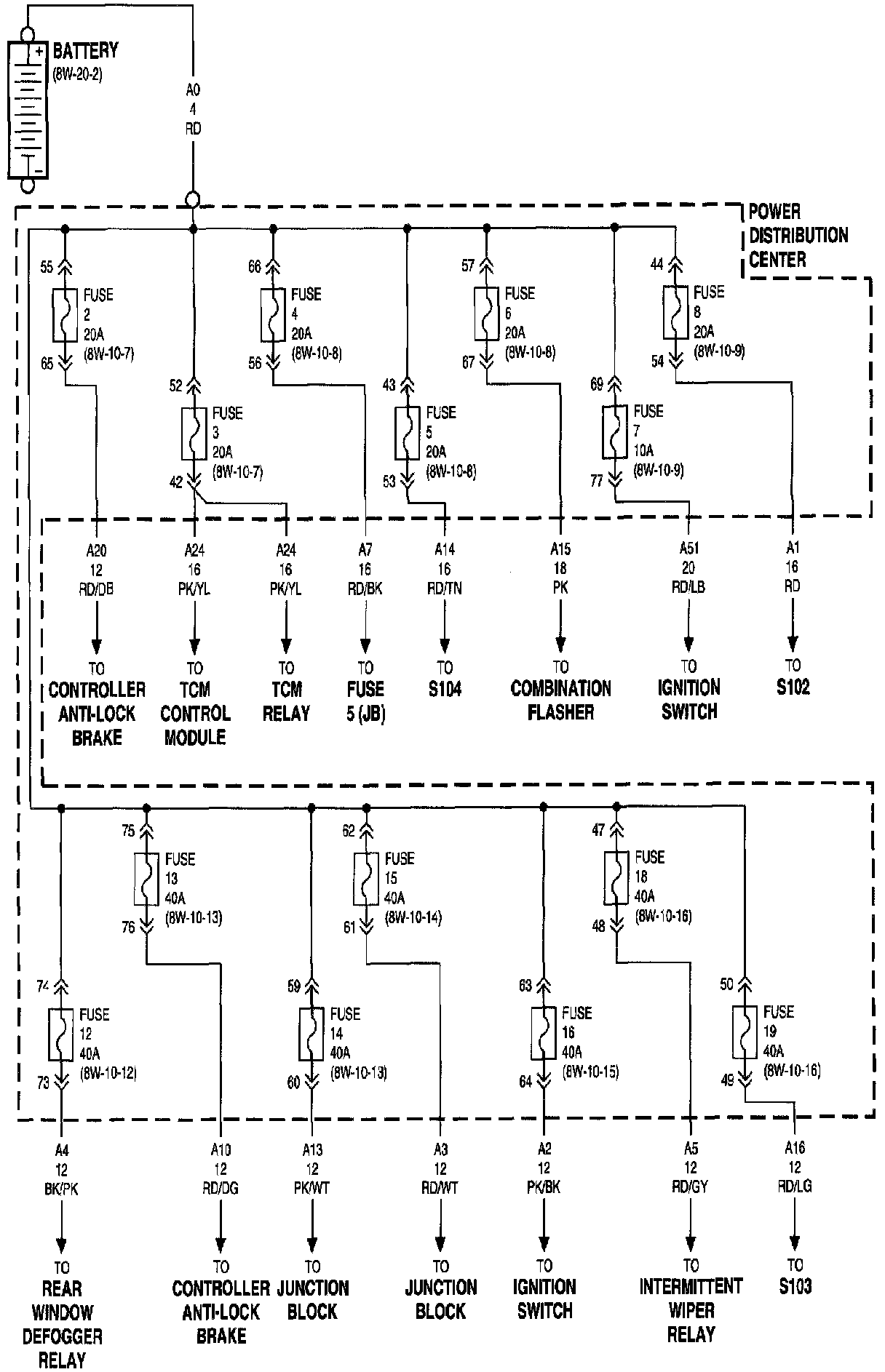

Power Distribution (Part 1 Of 11):

Battery
Fuse 2 ([1][2]PDC)
Fuse 3 ([1][2]PDC)
Fuse 4 ([1][2]PDC)
Fuse 5 ([1][2]PDC)
Fuse 6 ([1][2]PDC)
Fuse 7 ([1][2]PDC)
Fuse 8 ([1][2]PDC)
Fuse 12 ([1][2]PDC)
Fuse 13 ([1][2]PDC)
Fuse 14 ([1][2]PDC)
Fuse 15 ([1][2]PDC)
Fuse 16 ([1][2]PDC)
Fuse 18 ([1][2]PDC)
Fuse 19 ([1][2]PDC)
Power Distribution Center

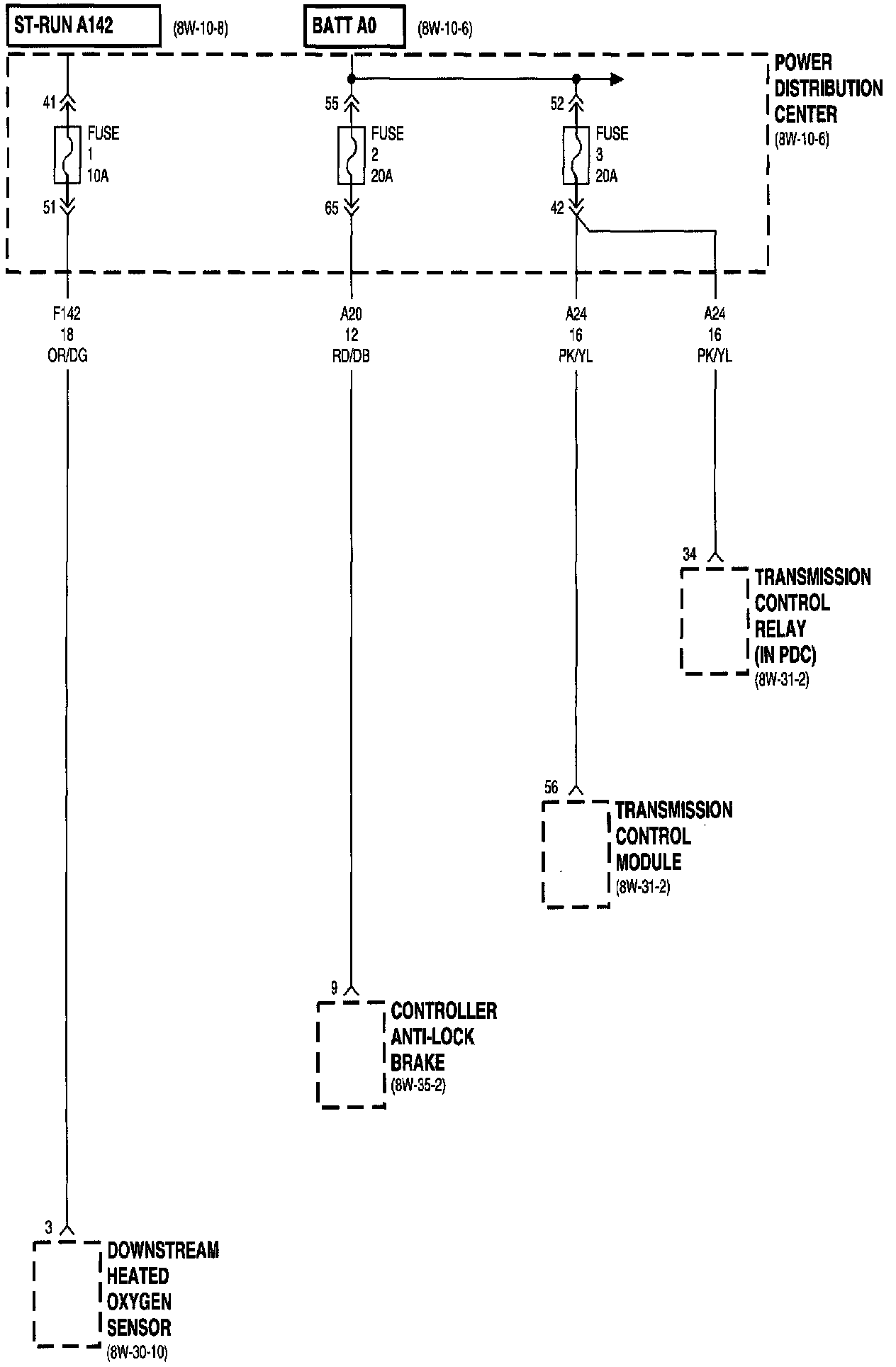

Power Distribution (Part 2 Of 11):

Controller Anti-Lock Brake
Downstream Heated Oxygen Sensor
Fuse 1 ([1][2]PDC)
Fuse 2 ([1][2]PDC)
Fuse 3 ([1][2]PDC)
Power Distribution Center
Transmission Control Module
Transmission Control Relay

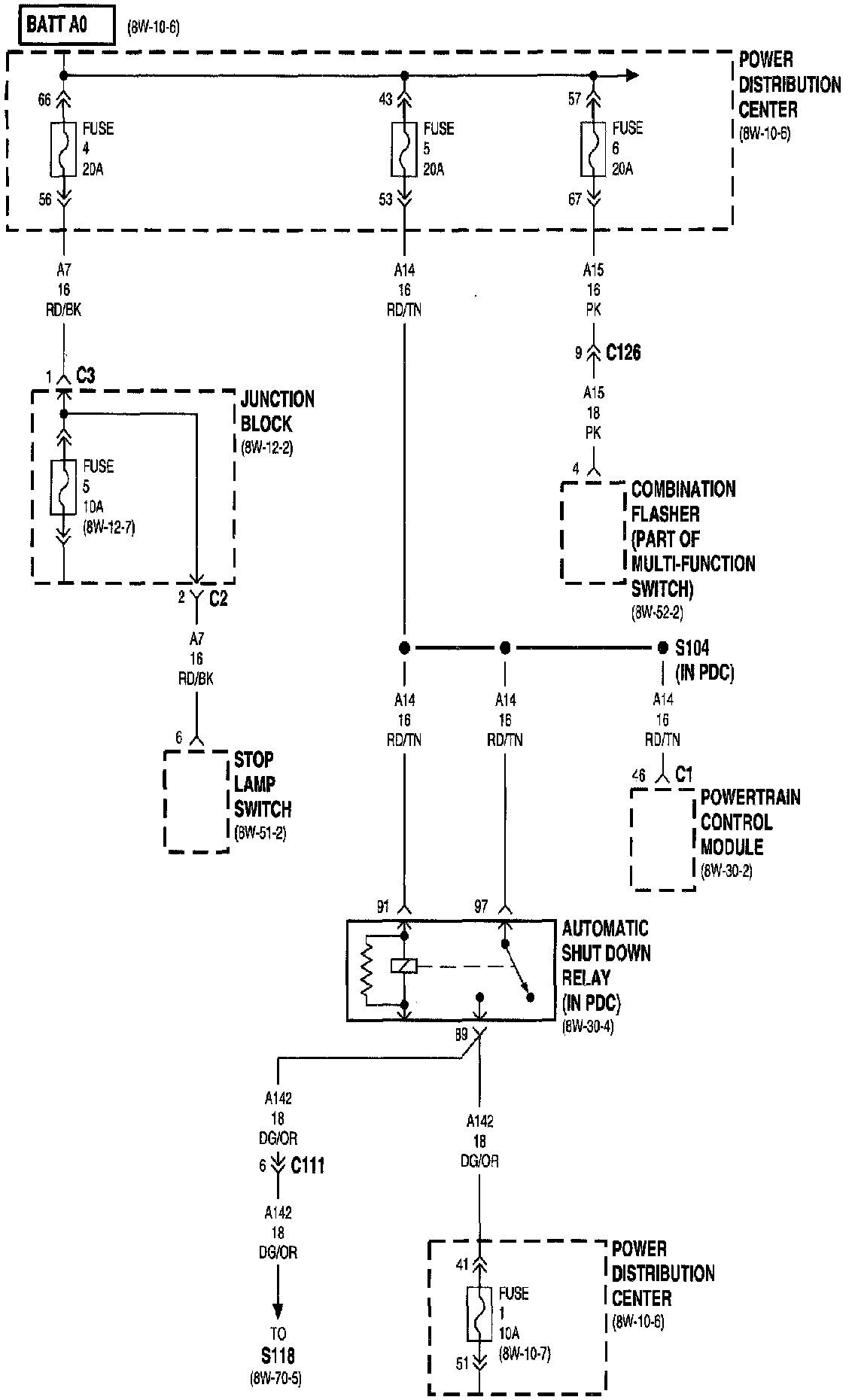

Power Distribution (Part 3 Of 11):

Automatic Shut Down Relay
Combination Flasher
Fuse 1 ([1][2]PDC)
Fuse 4 ([1][2]PDC)
Fuse 5 (JB)
Fuse 5 ([1][2]PDC)
Fuse 6 ([1][2]PDC)
Junction Block
Power Distribution Center
Powertrain Control Module
Stop Lamp Switch

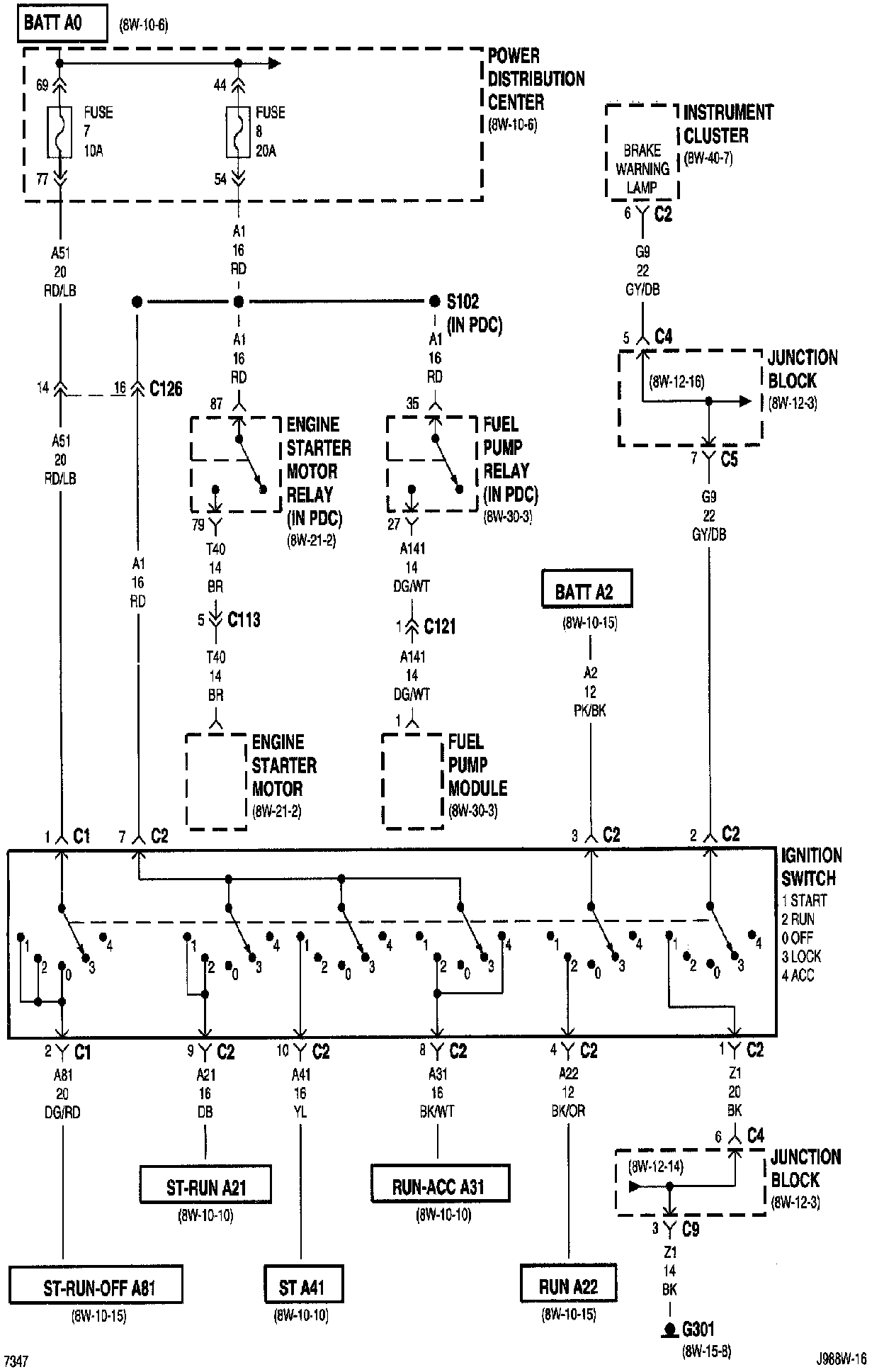

Power Distribution (Part 4 Of 11):

Engine Starter Motor
Engine Starter Motor Relay
Fuel Pump Module
Fuel Pump Relay
Fuse 7 ([1][2]PDC)
Fuse 8 ([1][2]PDC)
G301
Ignition Switch
Instrument Cluster
Junction Block
Power Distribution Center

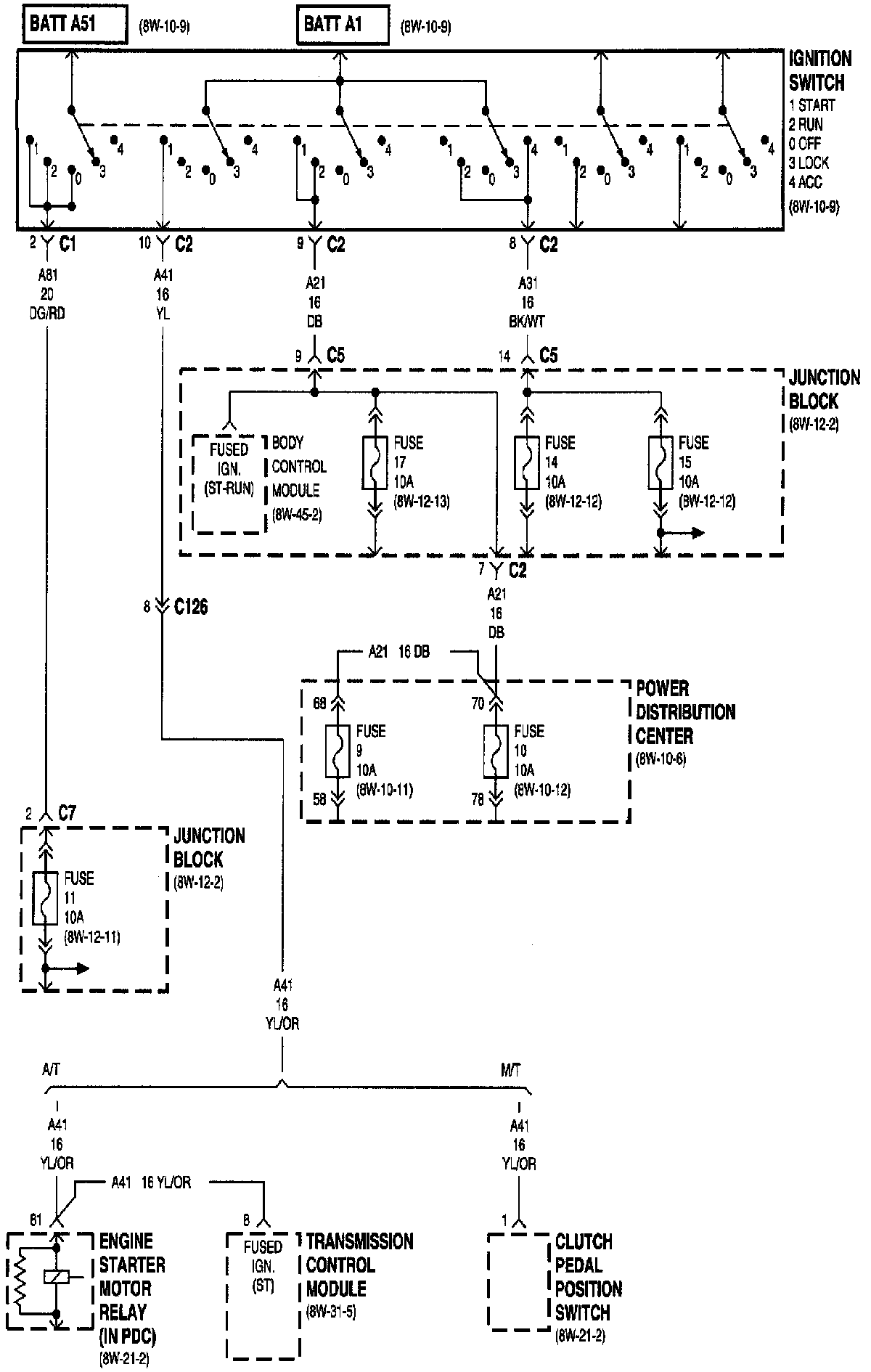

Power Distribution (Part 5 Of 11):

Body Control Module
Clutch Pedal Position Switch
Engine Starter Motor Relay
Fuse 9 ([1][2]PDC)
Fuse 10 ([1][2]PDC)
Fuse 11 (JB)
Fuse 14 (JB)
Fuse 15 (JB)
Fuse 17 (JB)
Ignition Switch
Junction Block
Power Distribution Center
Transmission Control Module

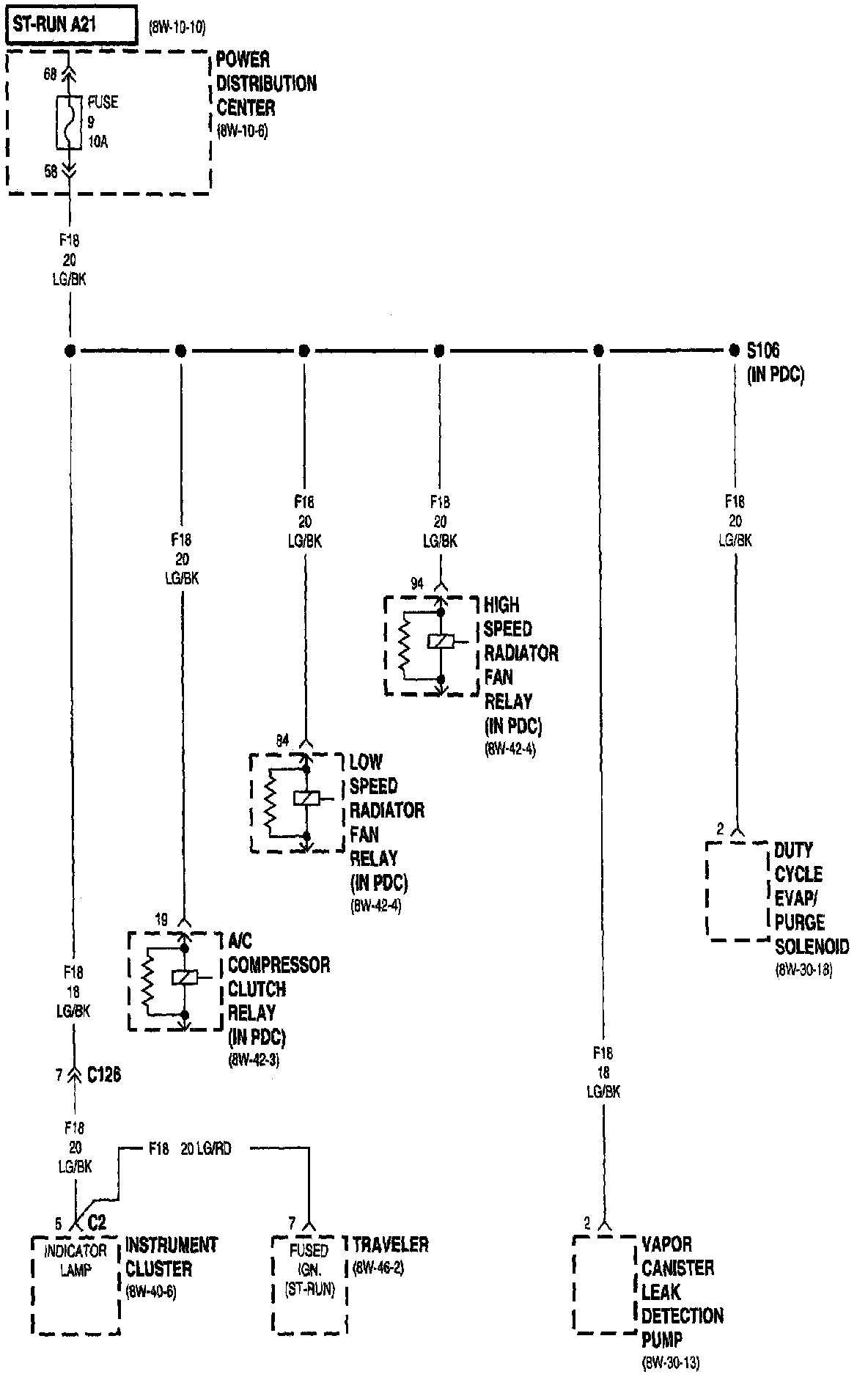

Power Distribution (Part 6 Of 11):

A/C Compressor Clutch Re]ay
Duty Cycle Evap/Purge Solenoid
Fuse 9 ([1][2]PDC)
High Speed Radiator Fan Relay
Instrument Cluster
Low Speed Radiator Fan Relay
Power Distribution Center
Traveler
Vapor Canister Leak Detection Pump

Power Distribution (Part 7 Of 11):

Controller Anti-Lock Brake
Fuel Pump Relay
Fuse 6 (JB)
Fuse 10 ([1][2]PDC)
Fuse 12 ([1][2]PDC)
Junction Block
Power Distribution Center
Powertrain Control Module
Rear Window Defogger
Rear Window Defogger Relay

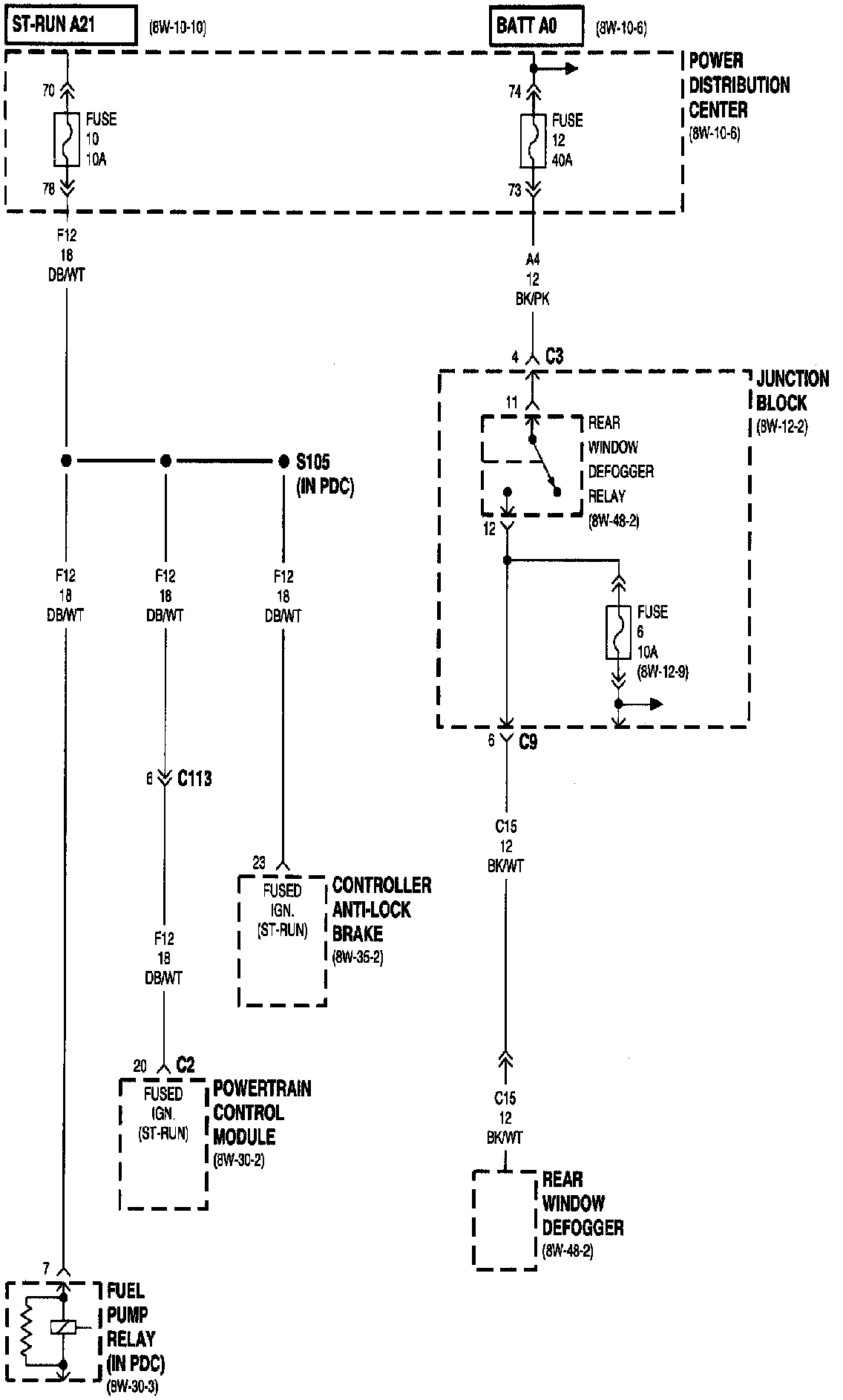

Power Distribution (Part 8 Of 11):

Controller Anti-Lock Brake
Fuse 7 (JB)
Fuse 8 (JB)
Fuse 13 ([1][2]PDC)
Fuse 14 ([1][2]PDC)
Junction Block
Power Distribution Center

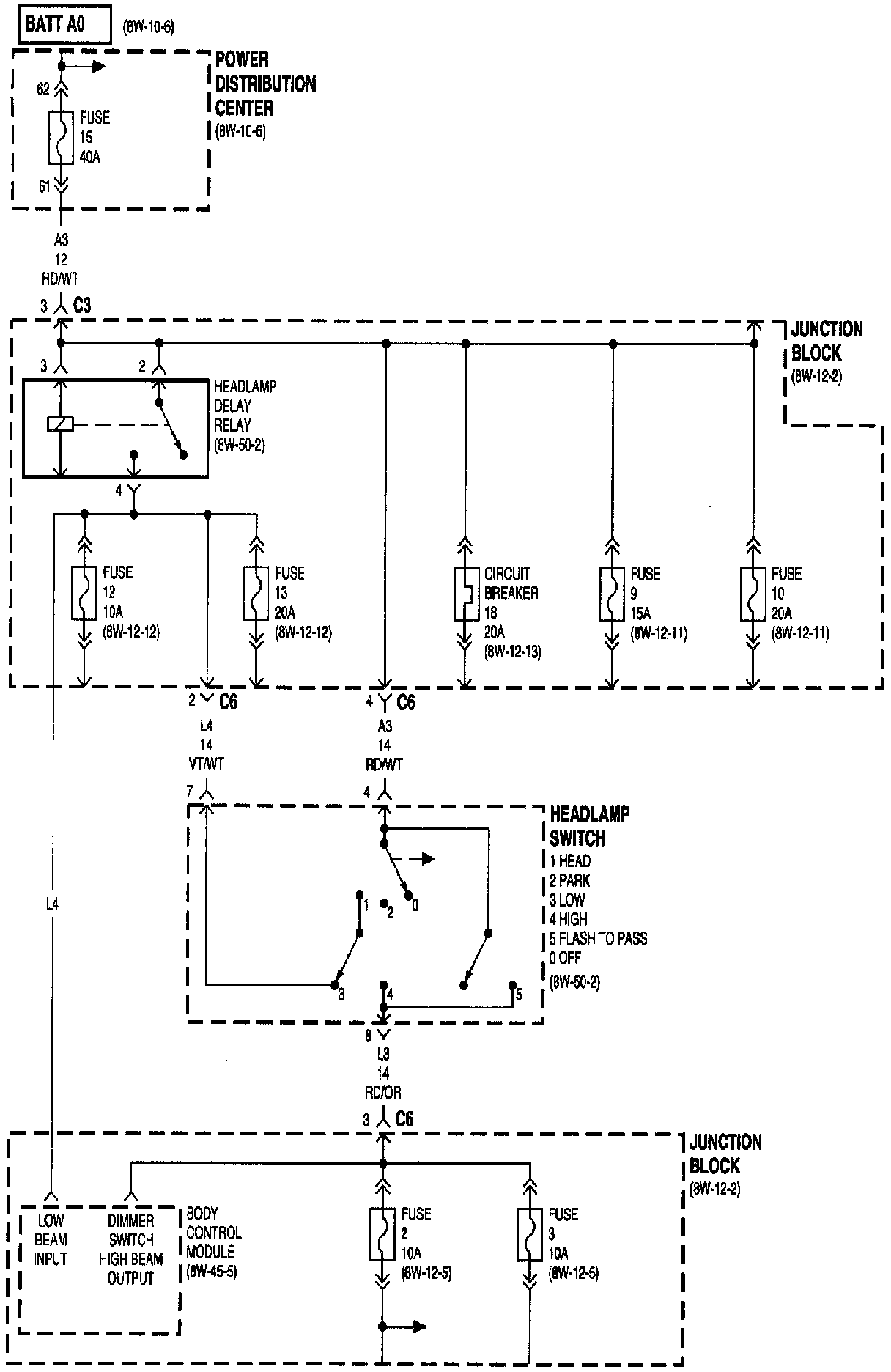

Power Distribution (Part 9 Of 11):

Body Control Module
Circuit Breaker 18 (JB)
Fuse 2 (JB)
Fuse 9 (JB)
Fuse 3 (JB)
Fuse 10 (JB)
Fuse 13 (JB)
Fuse 15 ([1][2]PDC)
Headlamp Delay Relay
Headlamp Switch
Junction Block
Power Distribution Center

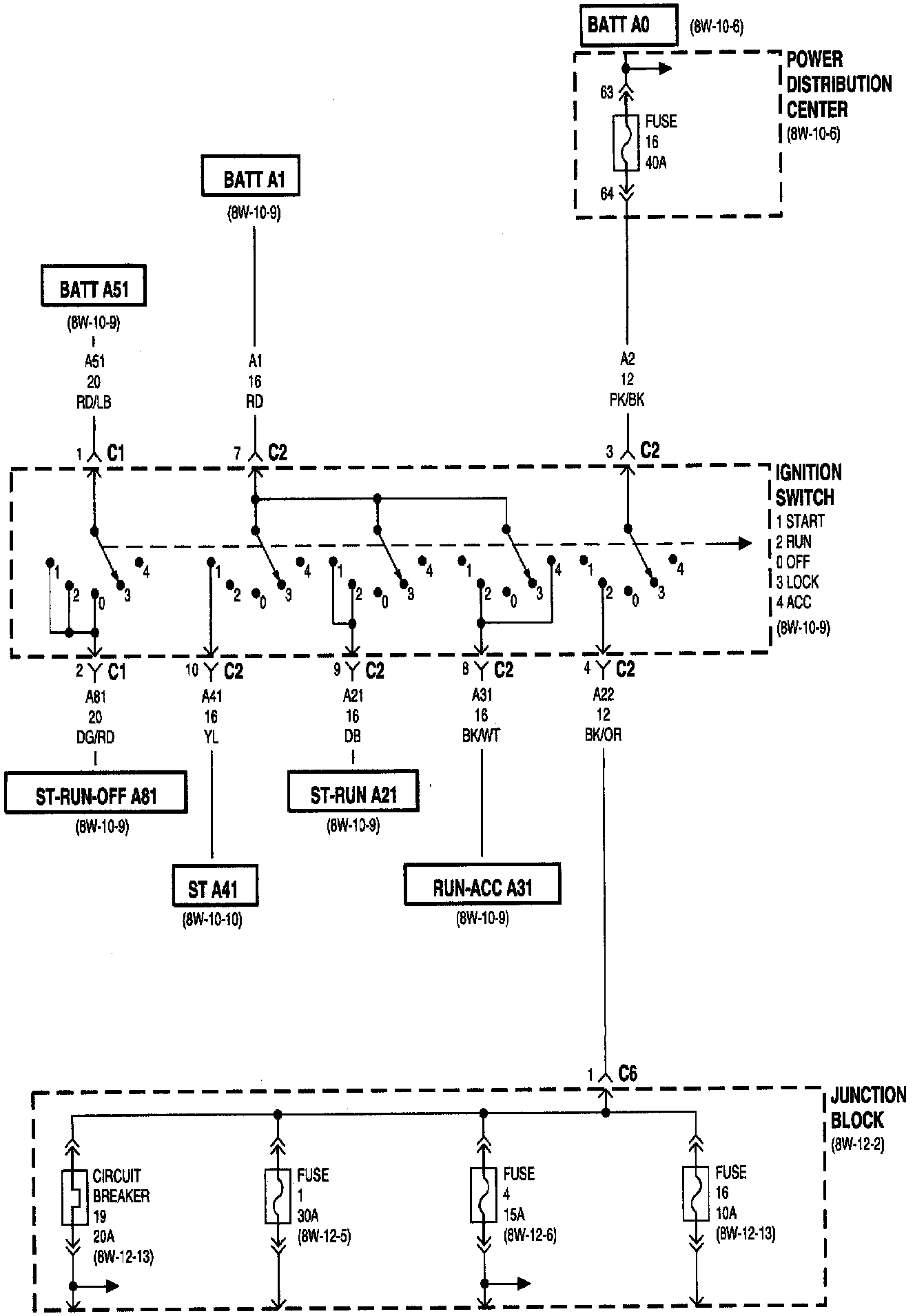

Power Distribution (Part 10 Of 11):

Circuit Breaker 19 (JB)
Fuse 1 (JB)
Fuse 1 (JB)
Fuse 4 (JB)
Fuse 16 (JB)
Fuse 16 ([1][2]PDC)
Ignition Switch
Junction Block
Power Distribution Center

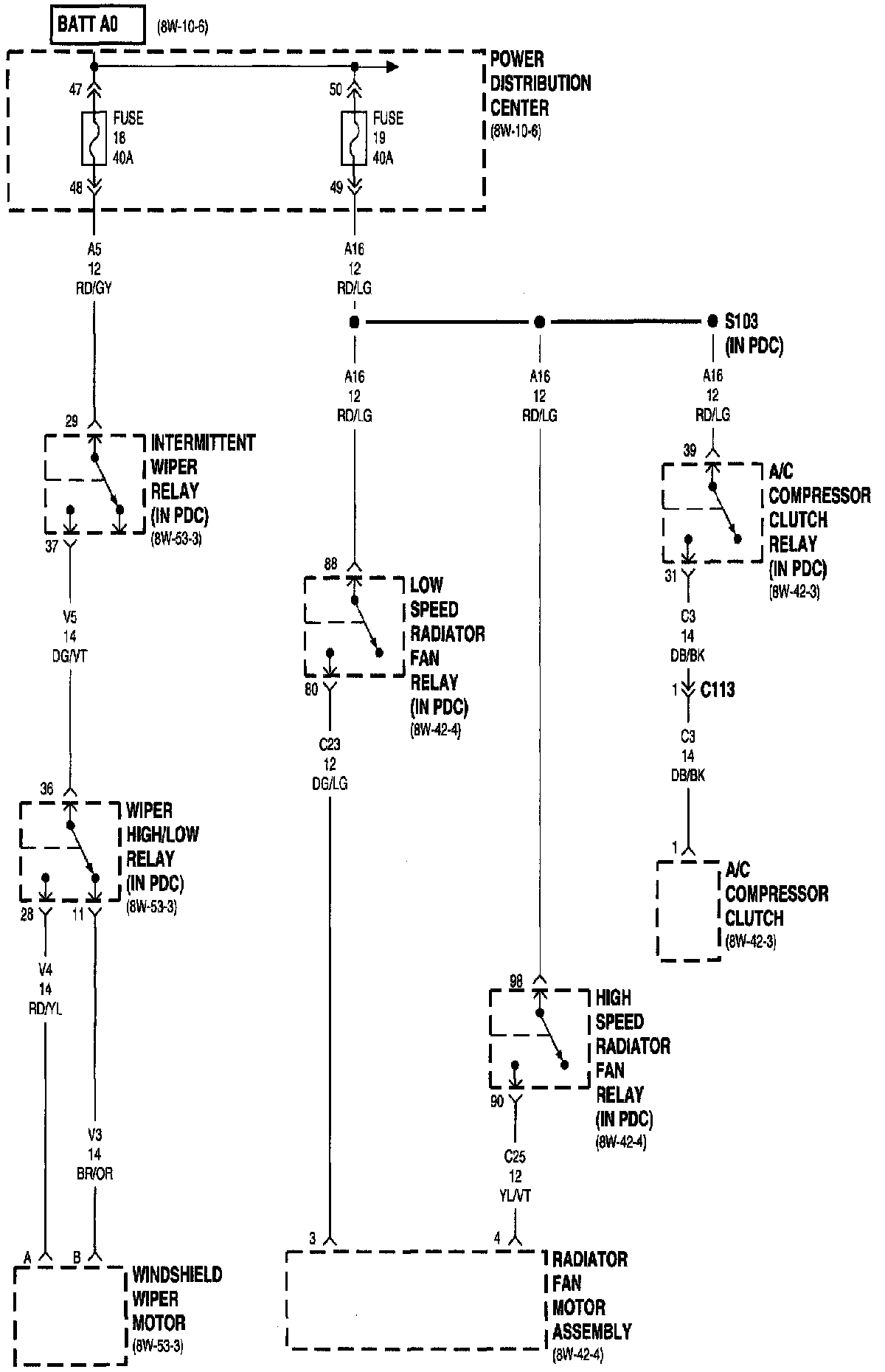

Power Distribution (Part 11 Of 11):

A/C Compressor Clutch
A/C Compressor Clutch Relay
Fuse 18 ([1][2]PDC)
Fuse 19 ([1][2]PDC)
High Speed Radiator Fan Relay
Intermittent Wiper Relay
Low Speed Radiator Fan Relay
Power Distribution Center
Radiator Fan Motor Assembly
Windshield Wiper Motor
Wiper High/Low Relay


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
