Rear Lighting

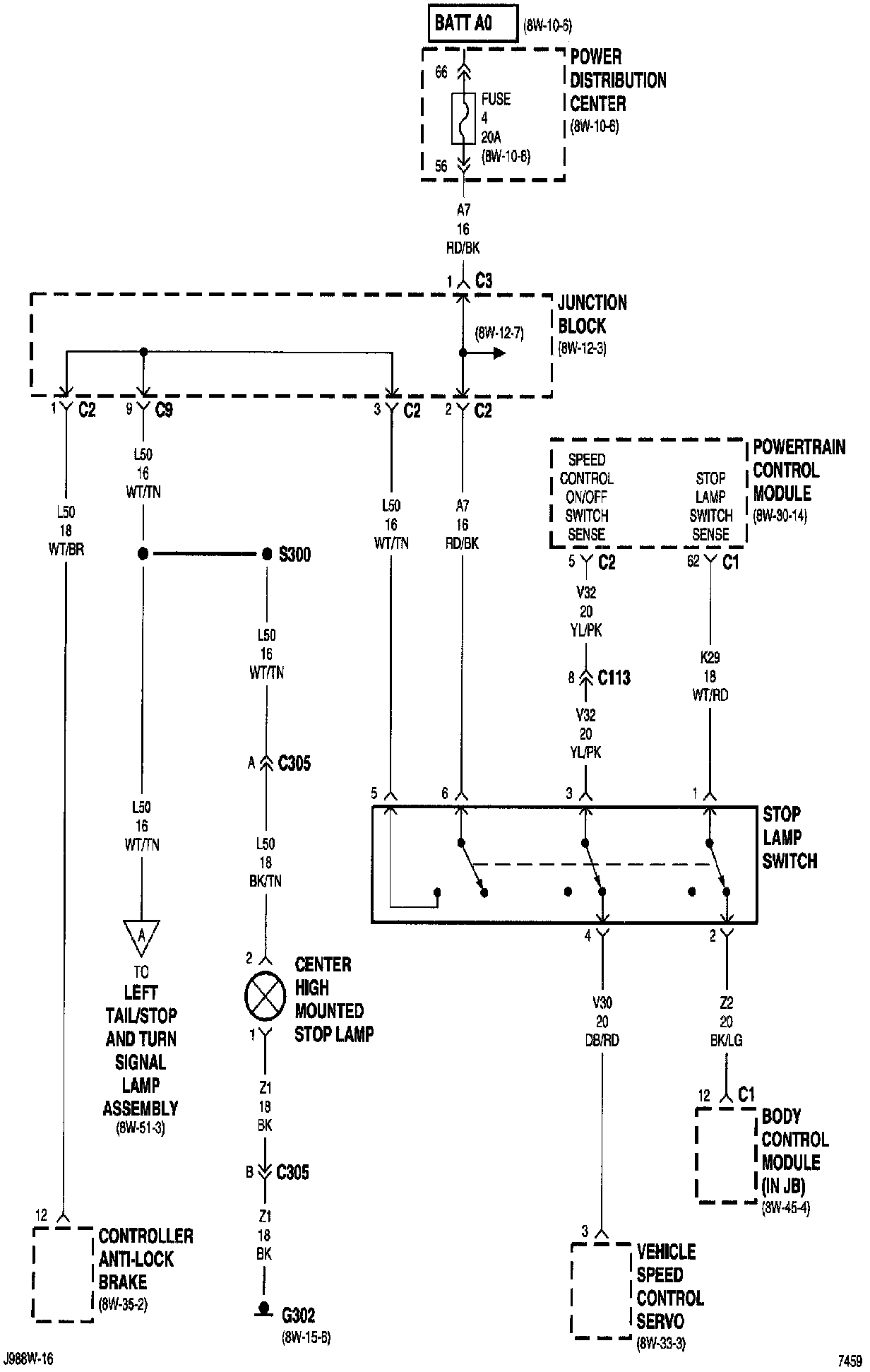

Rear Lighting:

Body Control Module
Center High Mounted Stop Lamp
Controller Anti-Lock Brake
Fuse 4 (PDC)
G302
Junction Block
Power Distribution Center
Powertrain Control Module
Stop Lamp Switch
Vehicle Speed Control Servo

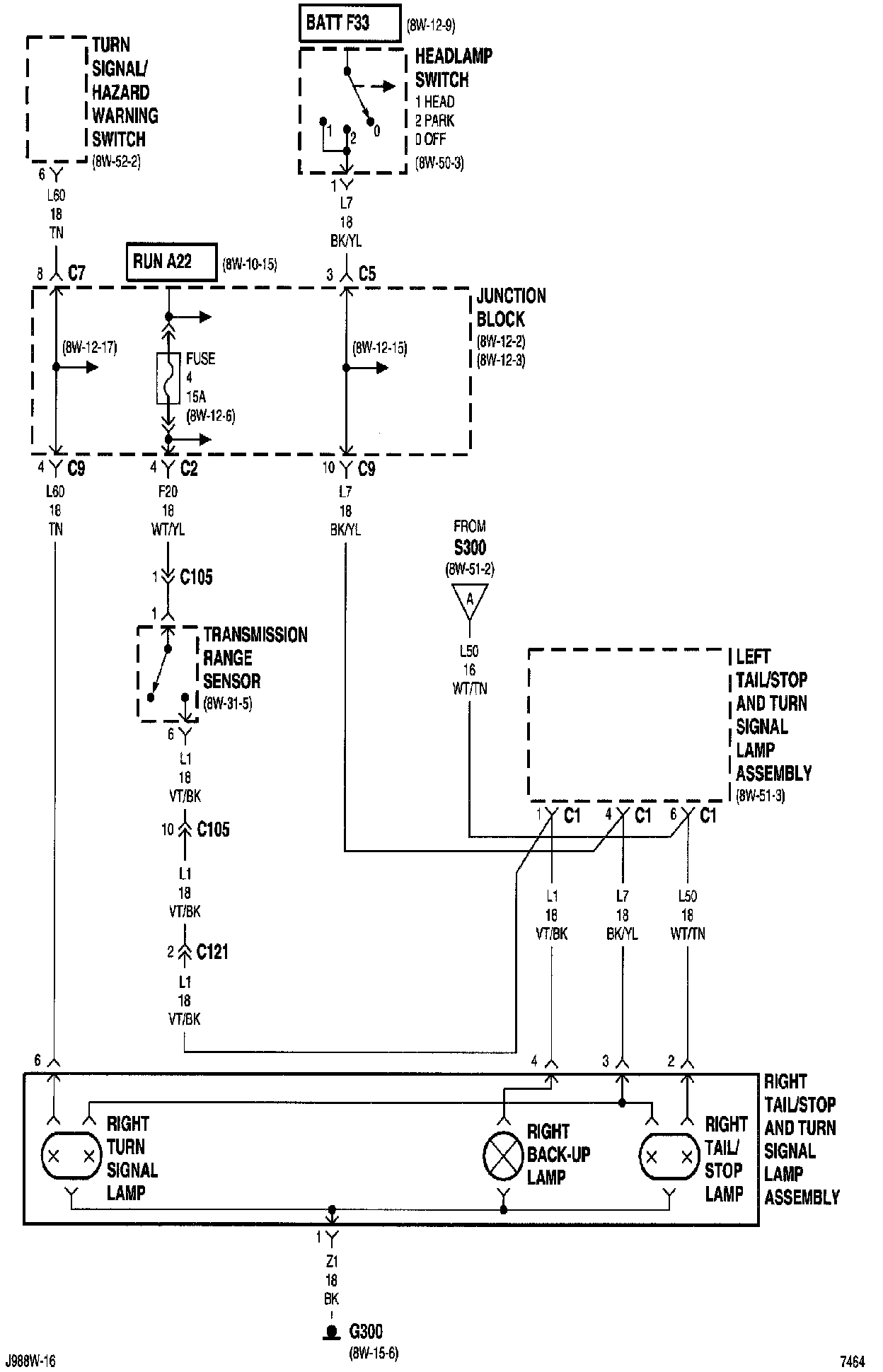

Rear Lighting:

Fuse 4 (JB)
G300
Headlamp Switch
Junction Block
Left Tail/Stop And Turn Signal Lamp Assembly
Right Back-Up Lamp
Right Tail Lamp
Right Tail/Stop Lamp
Right Tail/Stop And Turn Signal Lamp Assembly
Right Turn Signal Lamp
Transmission Range Sensor
Turn Signal/Hazard Warning Switch

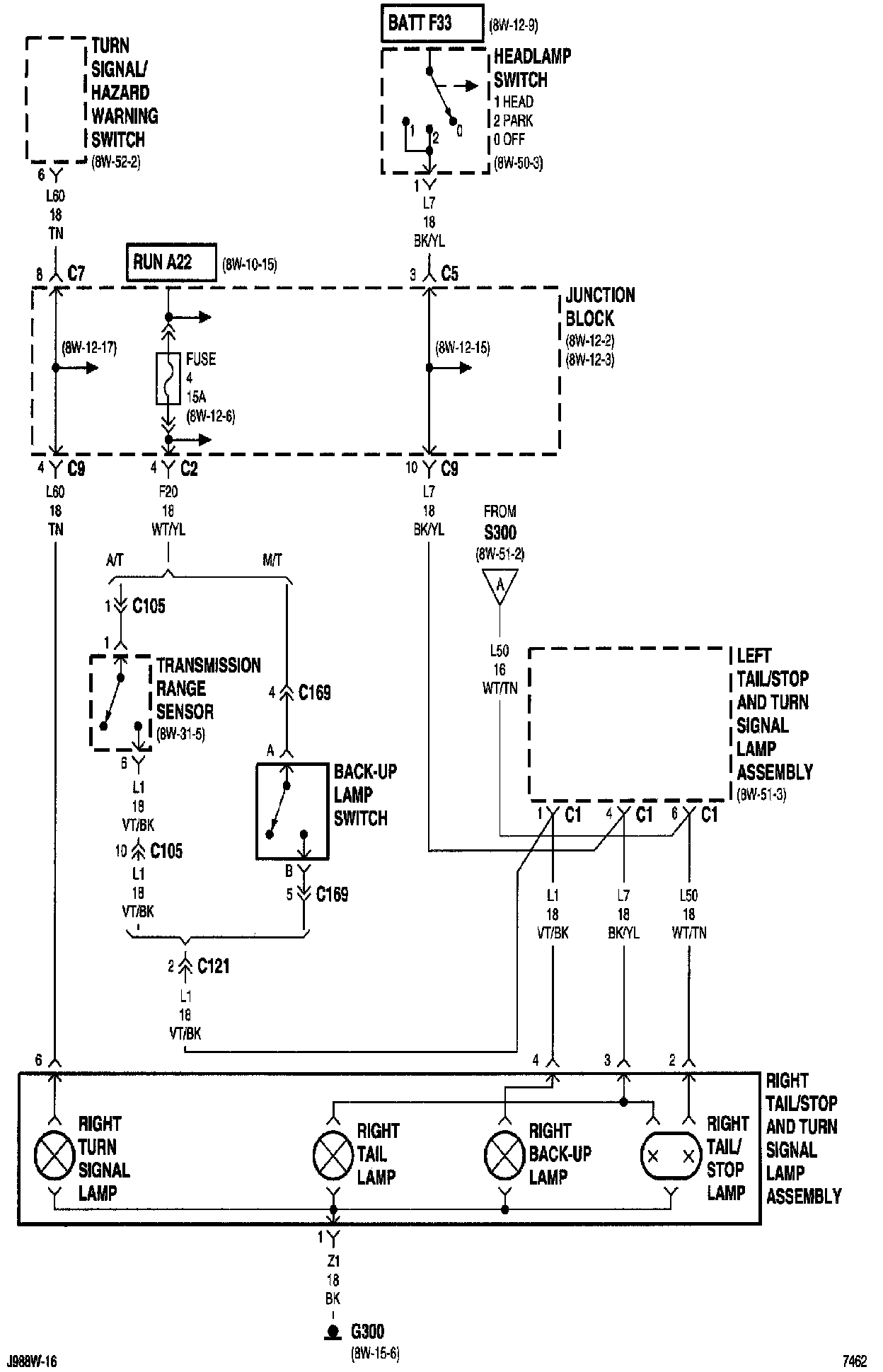

Rear Lighting:

Fuse 4 (JB)
G300
Headlamp Switch
Junction Block
Left Tail/Stop And Turn Signal Lamp Assembly
Right Tail/Stop Lamp
Right Tail/Stop And Turn Signal Lamp Assembly
Right Turn Signal Lamp
Transmission Range Sensor
Turn Signal/Hazard Warning Switch


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
