Interior Lighting

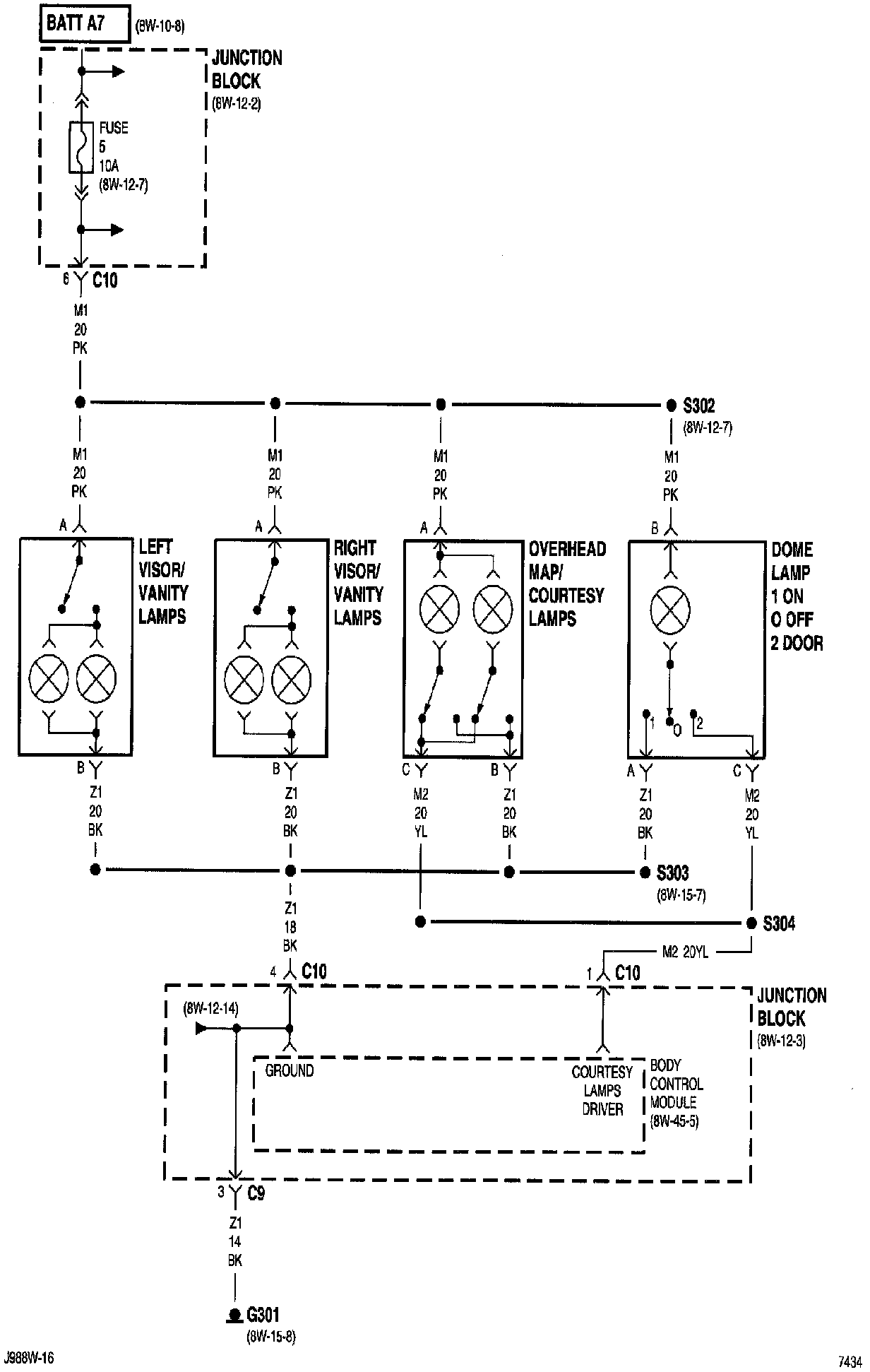

Interior Lighting (Part 1 Of 3):

Body Control Module
Dome Lamp
Fuse 5 (JB)
G301
Junction Block
Left Visor/Vanity Lamps
Overhead Map/Courtesy Lamps
Right Visor/Vanity Lamps

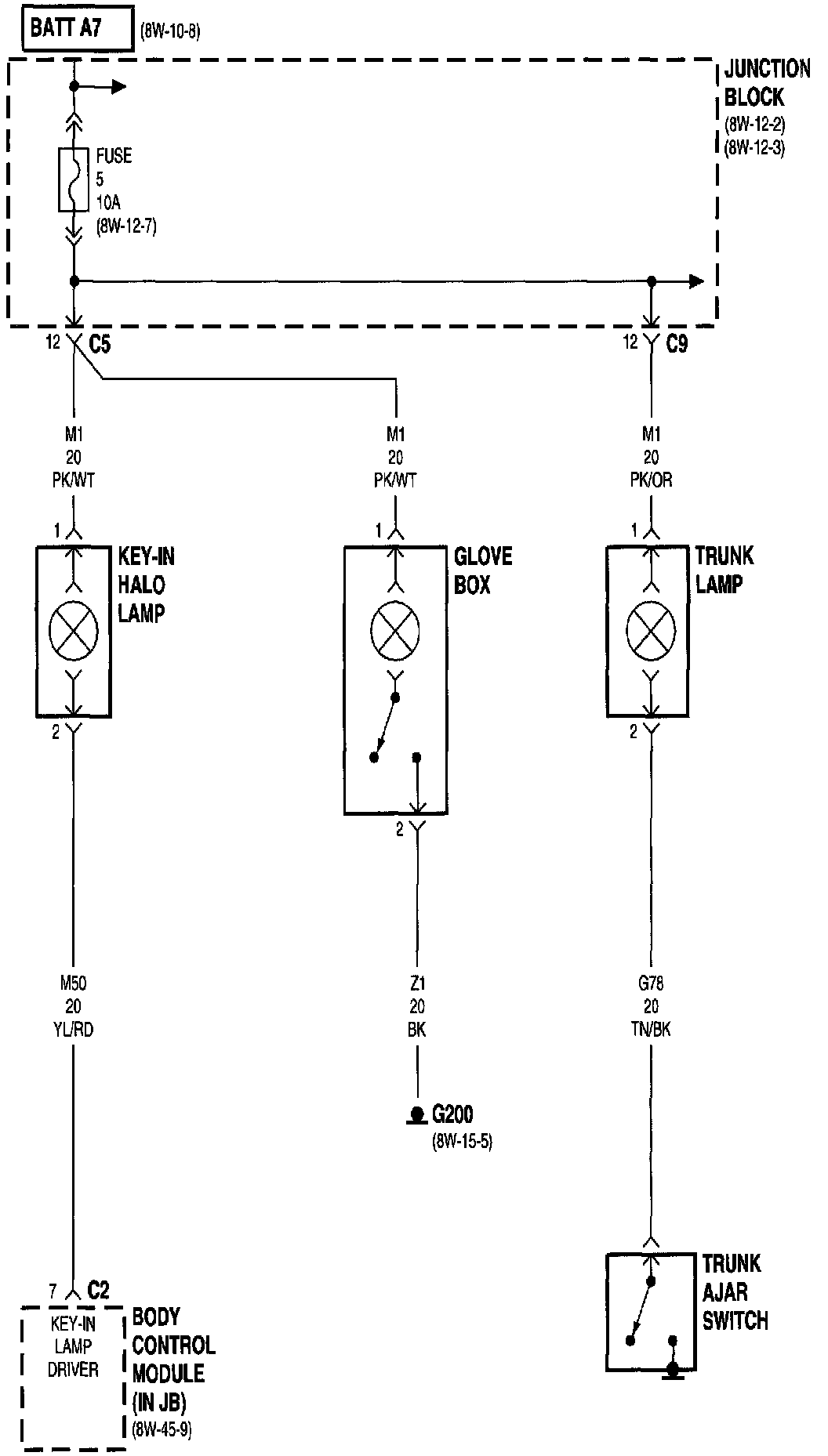

Interior Lighting (Part 2 Of 3):

Body Control Module
Fuse 5 (JB)
G200
Glove Box
Junction Block
Key-In Halo Lamp
Trunk Ajar Switch
Trunk Lamp

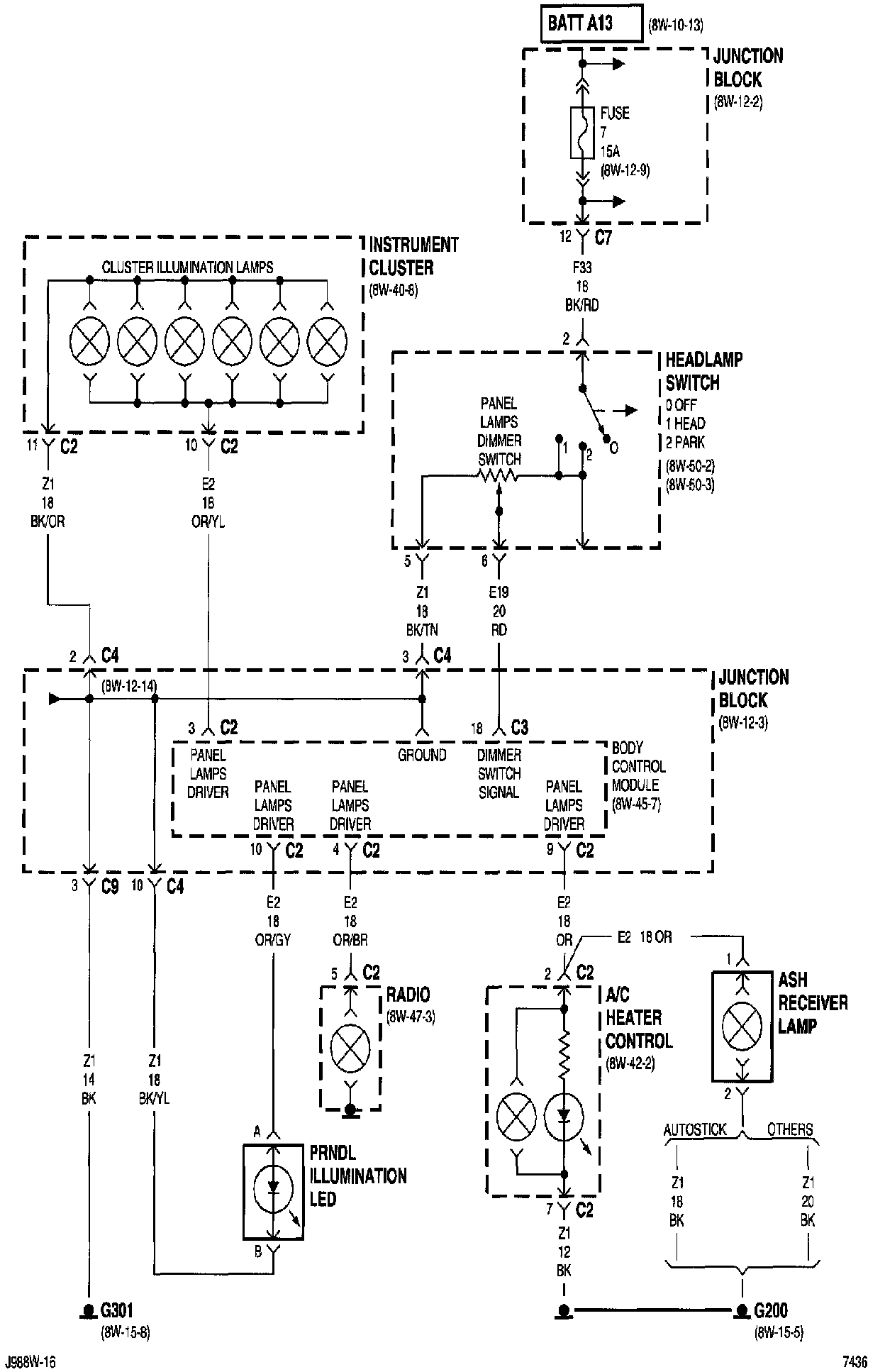

Interior Lighting (Part 3 Of 3):

A/C Heater Control
Ash Receiver Lamp
Body Control Module
Cluster Illumination Lamps
Fuse 7 (JB)
G200
G301
Headlamp Switch
Instrument Cluster
Junction Block
Panel Lamps Dimmer Switch
PRNDL Illumination Led
Radio


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
