Front End Lighting

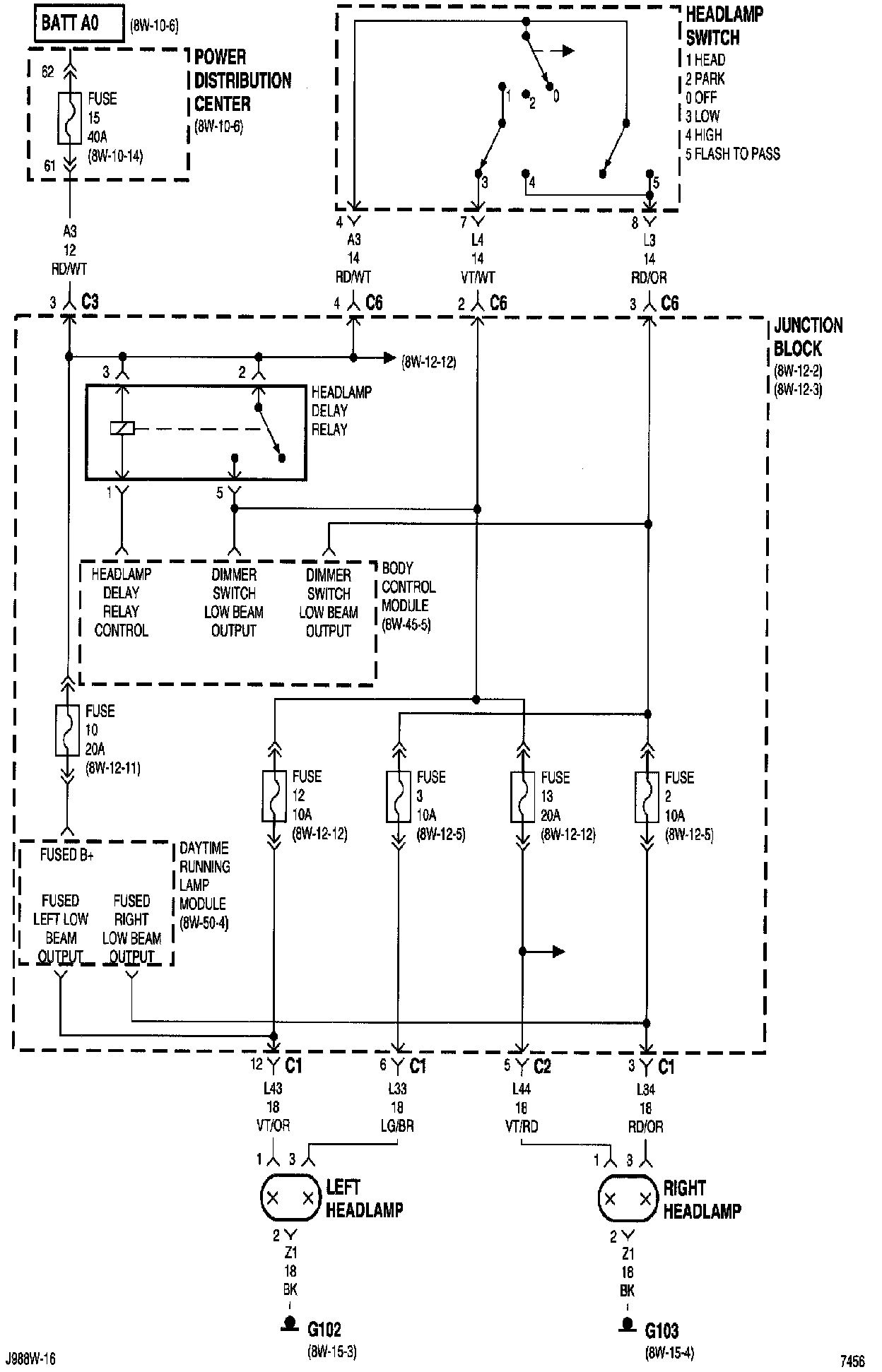

Front Lighting (Part 1 Of 3):

Body Control Module
Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 10 (JB)
Fuse 12 (JB)
Fuse 13 (JB)
Fuse 15 (PDC)
G102
G103
Headlamp Delay Relay
Headlamp Switch
Junction Block
Left Headlamp
Power Distribution Center
Right Fog Lamp
Right Headlamp

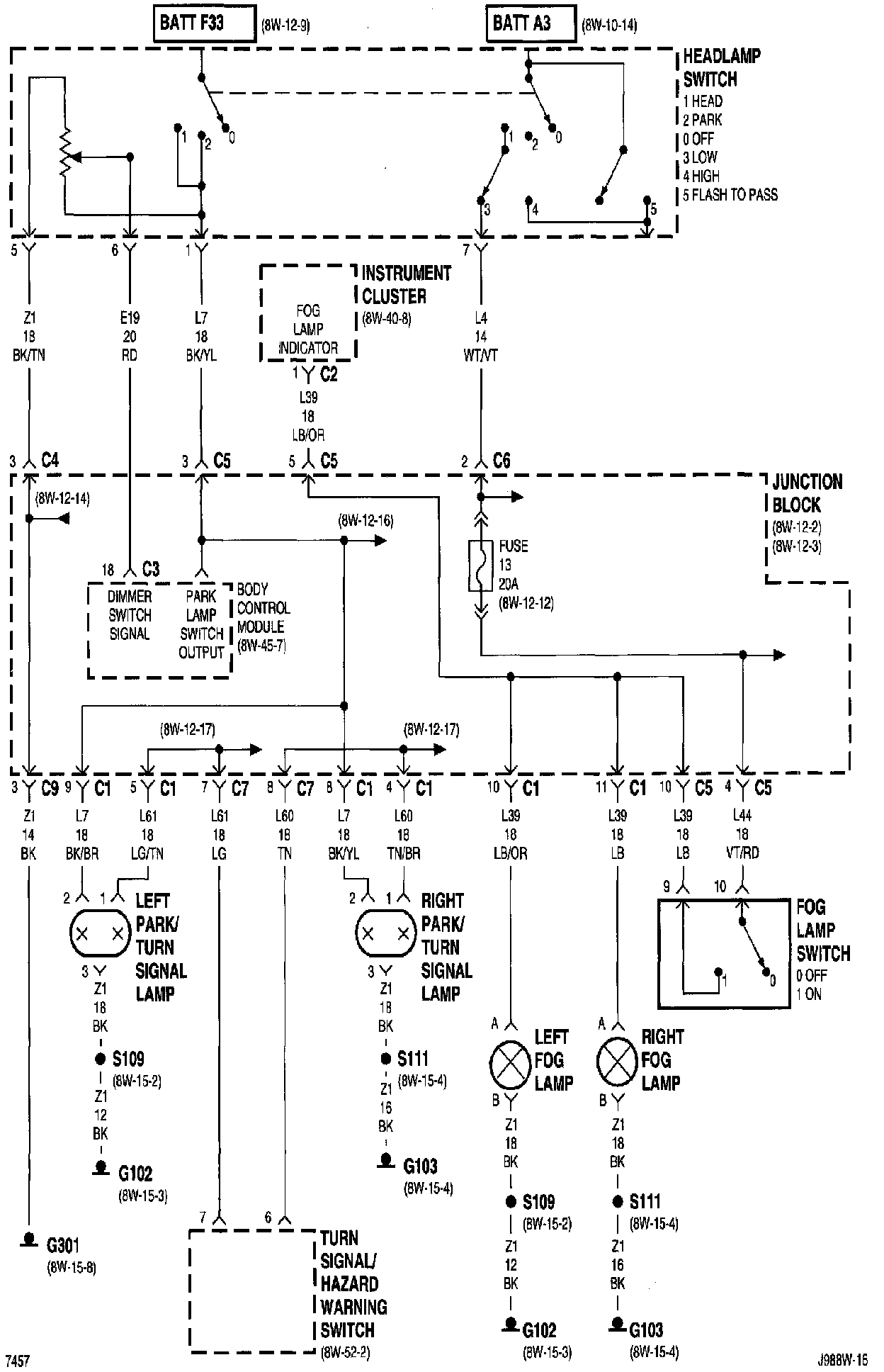

Front Lighting (Part 2 Of 3):

Body Control Module
Fog Lamp Switch
Fuse 13 (JB)
G102
G103
G301
Headlamp Switch
Instrument Cluster
Junction Block
Left Fog Lamp
Left Park/Turn Signal Lamp
Right Fog Lamp
Right Park/Turn Signal Lamp
Turn Signal/Hazard Warning Switch

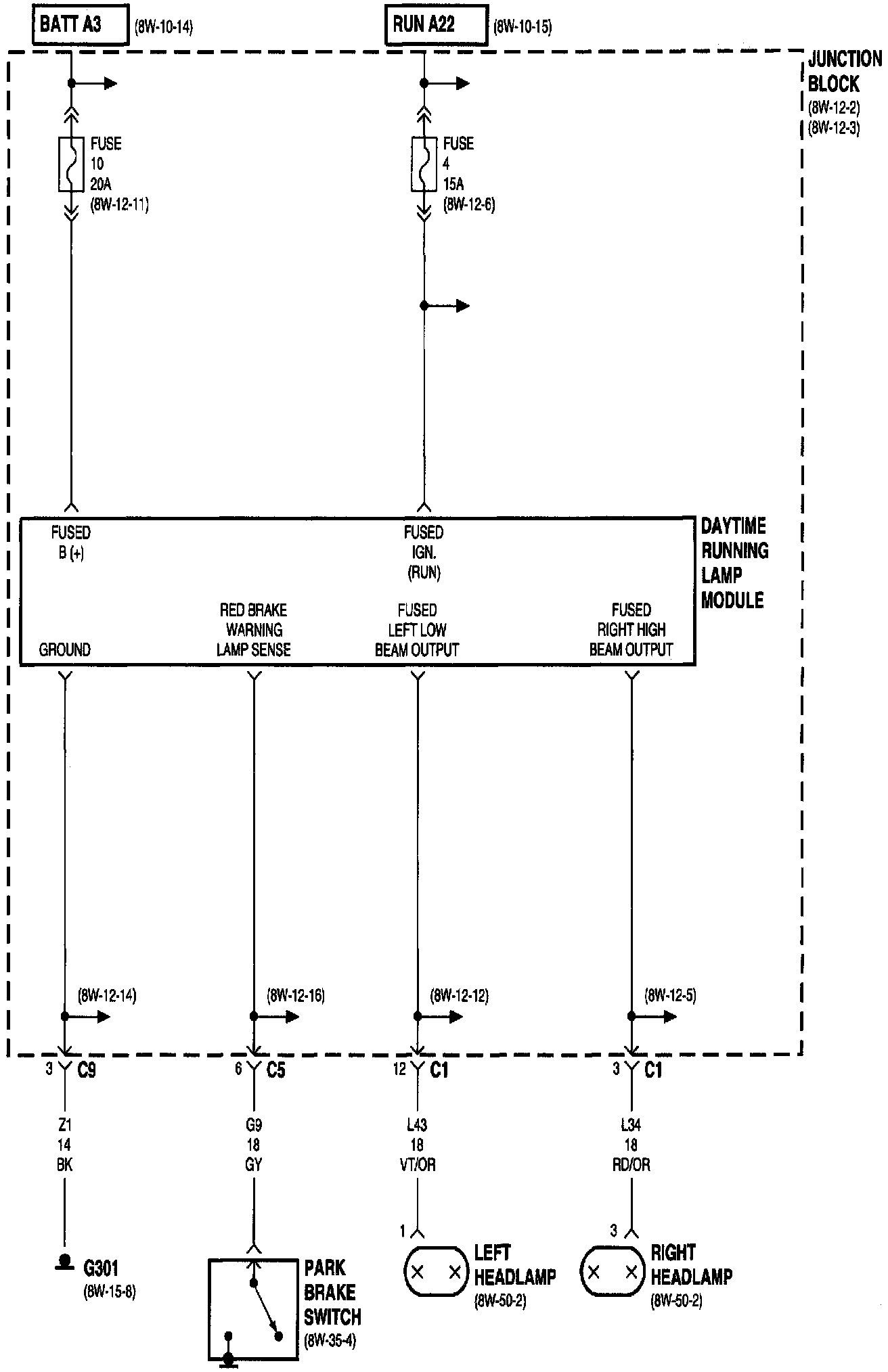

Front Lighting (Part 3 Of 3):

Daytime Running Lamp Module
Fuse 4 (JB)
Fuse 10 (JB)
G301
Junction Block
Left Headlamp
Park Brake Switch
Right Headlamp


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
