Wiring Diagrams

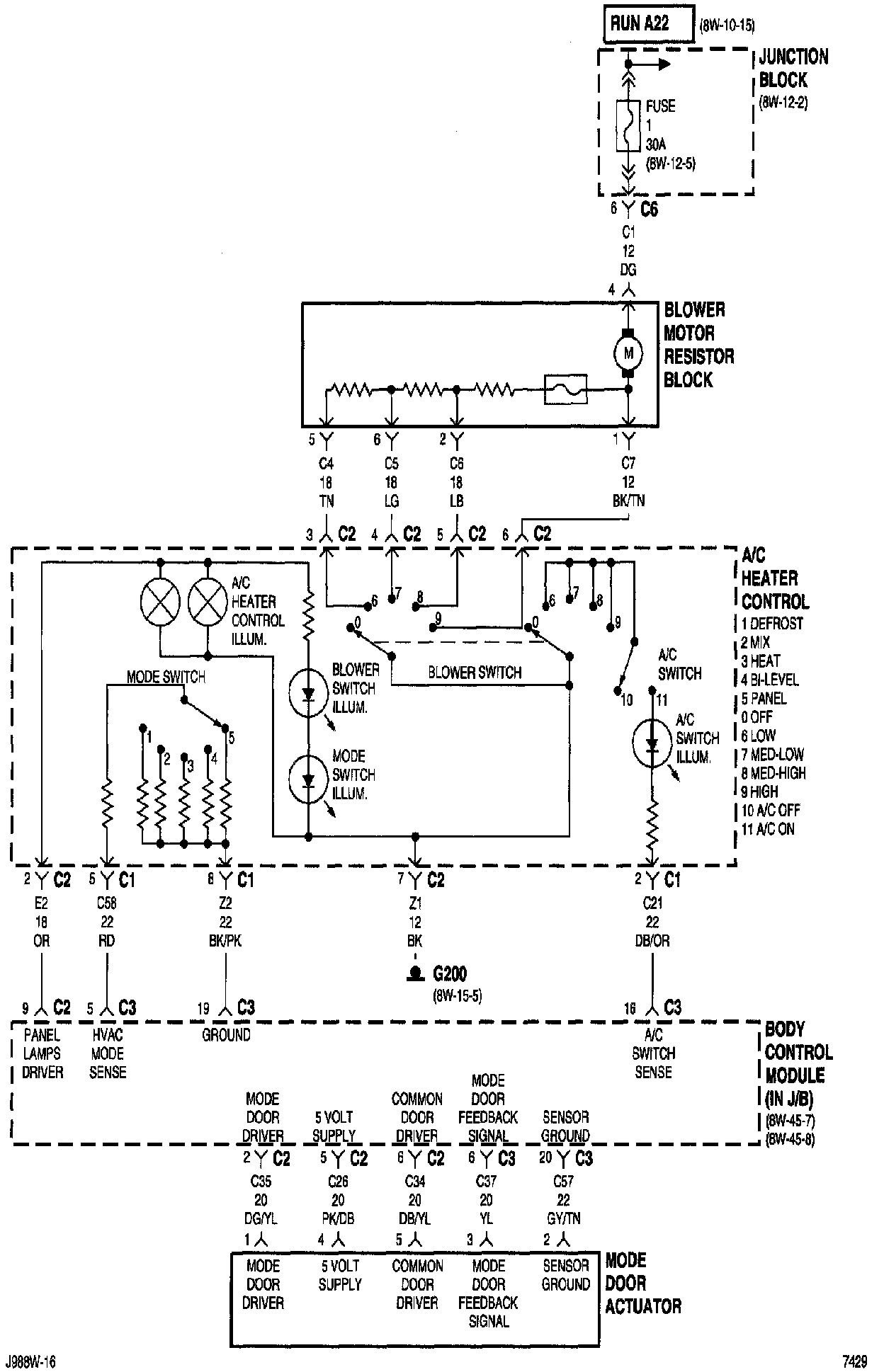

Air Conditioning - Heater (Part 1 Of 3):

A/C Heater Control
Blower Motor Resistor Block
Body Control Module
Fuse 1 (JB)
G200
Junction Block
Mode Door Actuator

Air Conditioning - Heater (Part 2 Of 3):

A/C Compressor Clutch
A/C Compressor Clutch Relay
A/C Evaporator Temperature Sensor
A/C Pressure Transducer
Body Control Module
Fuse 9 (PDC)
Fuse 19 (PDC)
Power Distribution Center
Powertrain Control Module

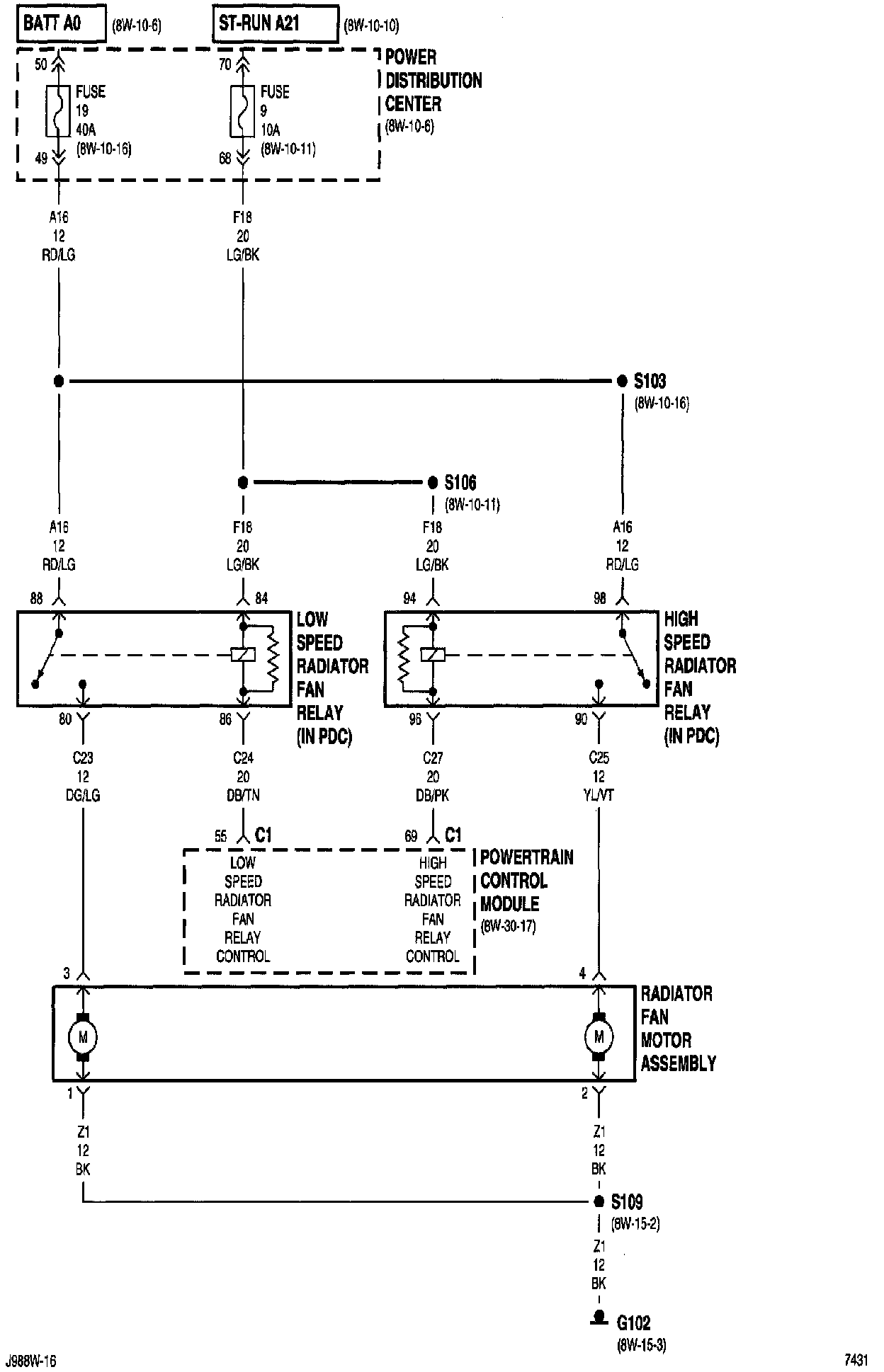

Air Conditioning - Heater (Part 3 Of 3):

Fuse 9 (PDC)
Fuse 19 (PDC
G102
High Speed Radiator Fan Relay
Low Speed Radiator Fan Relay
Power Distribution Center
Powertrain Control Module
Radiator Fan Motor Assembly


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
