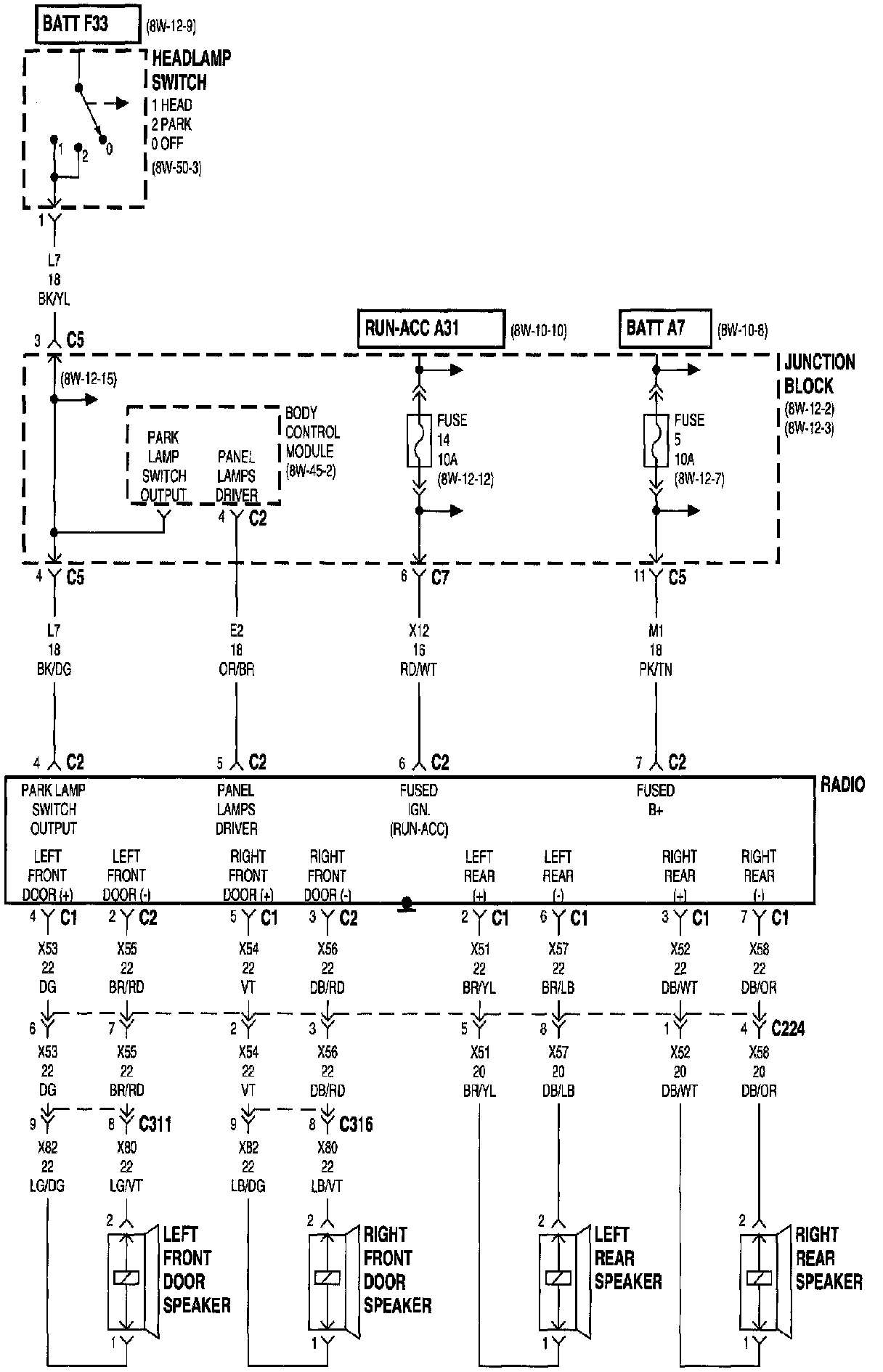

Premium Radio

Audio System:

Body Control Module
Fuse 5 (JB)
Fuse 14 (JB)
Junction Block
Left Front Door Speaker
Left Rear Speaker
Radio
Right Front Door Speaker
Right Rear Speaker

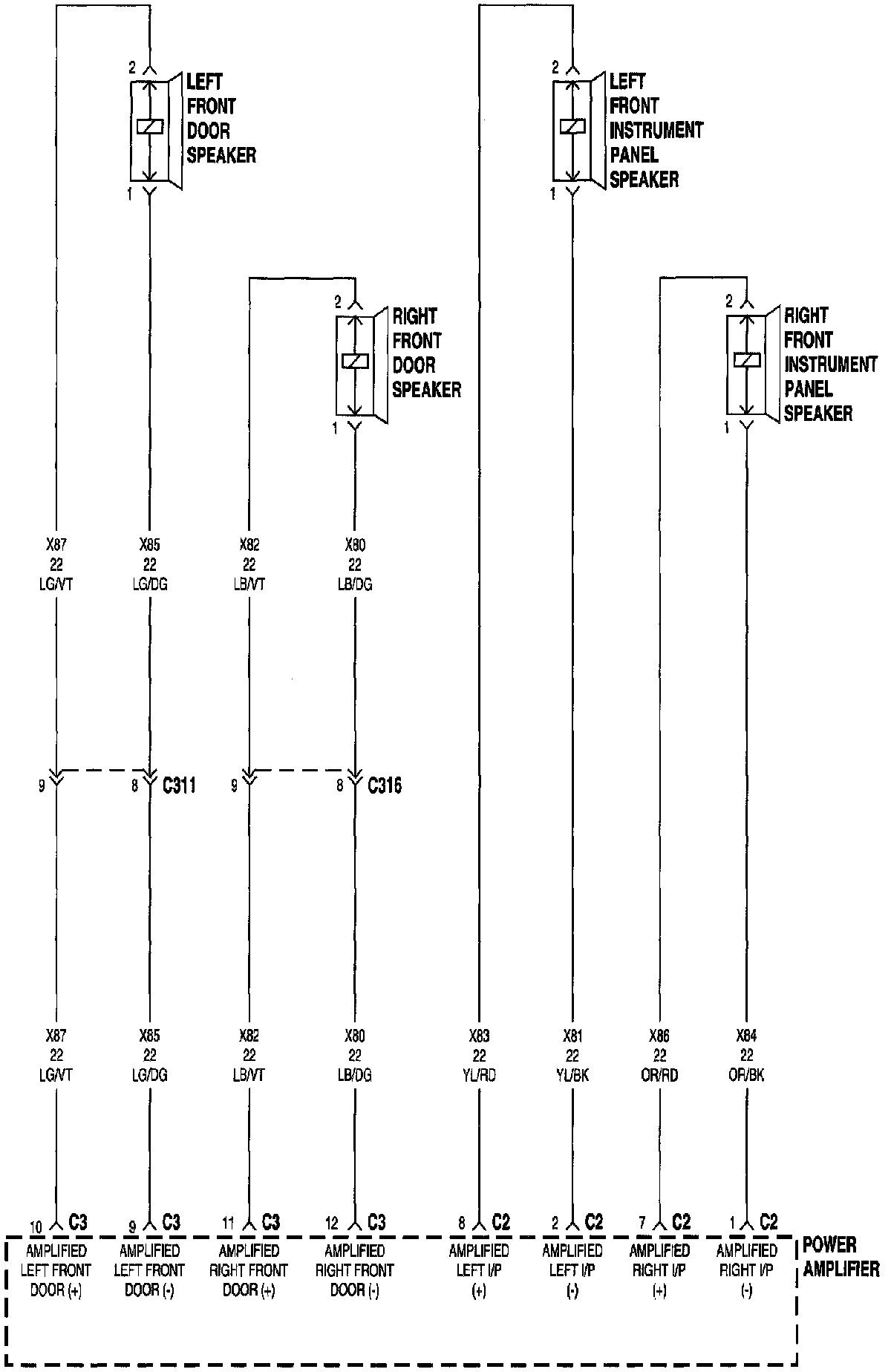

Audio System:

Left Front Door Speaker
Left Front Instrument Panel Speaker
Power Amplifier
Right Front Door Speaker
Right Front Instrument Panel Speaker

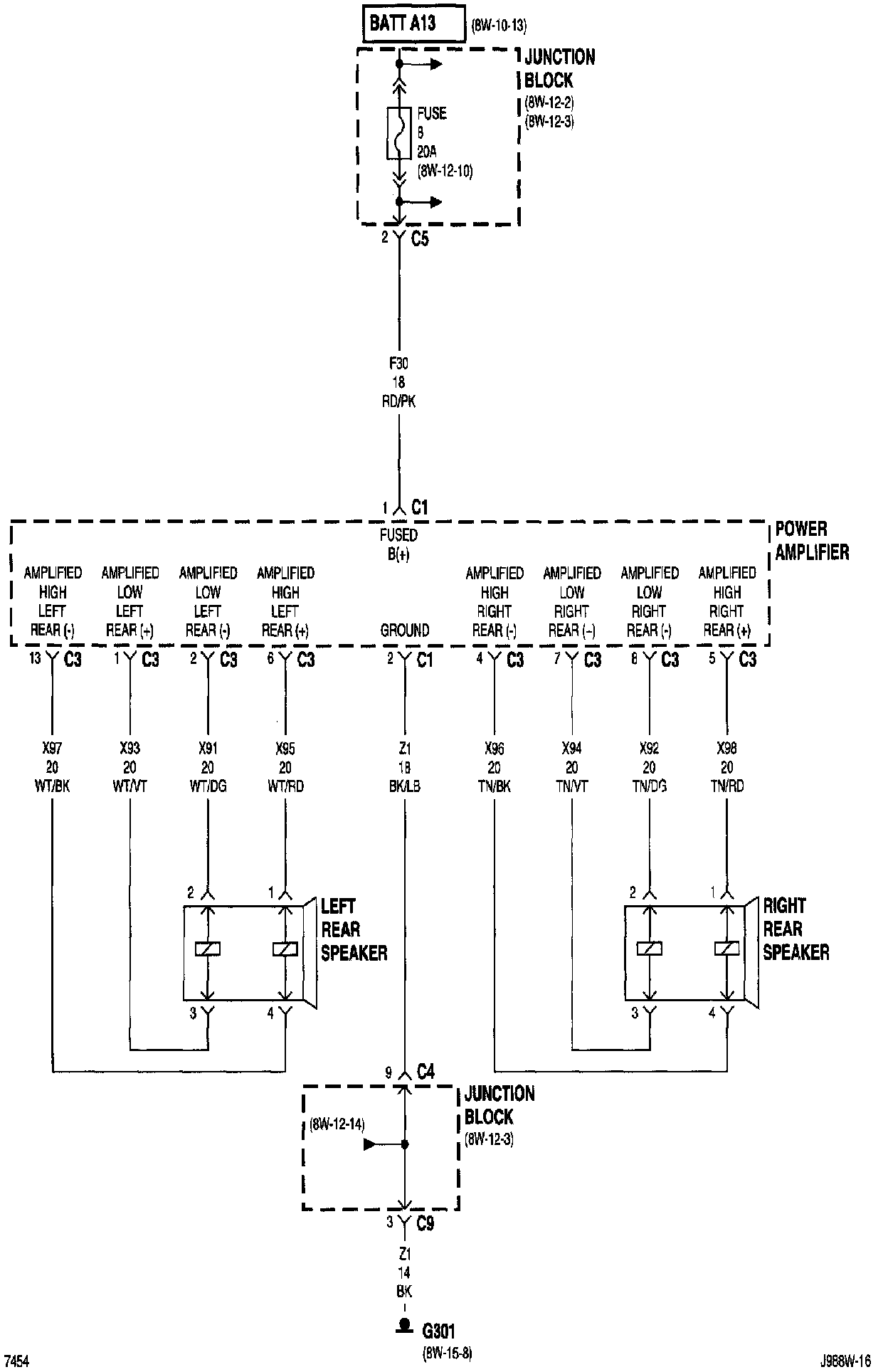

Audio System:

Fuse 8 (JB)
G301
Junction Block
Left Rear Speaker
Power Amplifier
Right Rear Speaker


NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
