Door Sensor/Switch (For Alarm): Service and Repair

REMOVAL
1. Remove door trim and water shield.

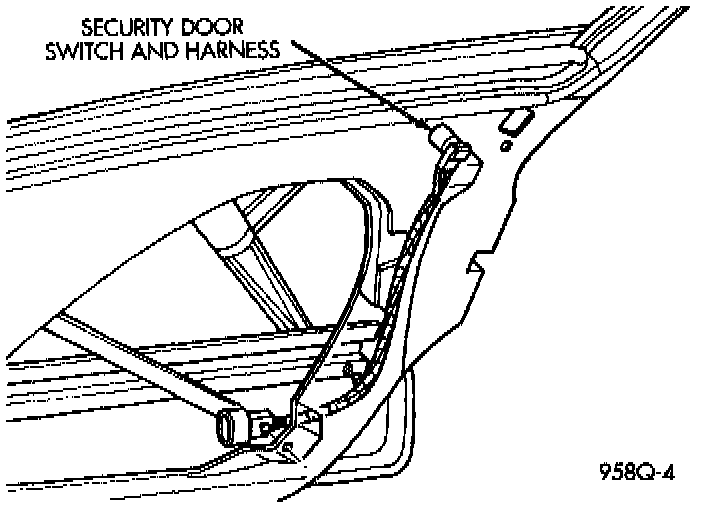

VTSS Door Lock Switch Location:

2. Remove illuminated entry switch wiring clip and disconnect connector.
3. Remove disarming switch from door handle.

INSTALLATION
- For installation reverse the above procedures.
