Home >> Dodge >> 1998 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> With Intermittent Wiper

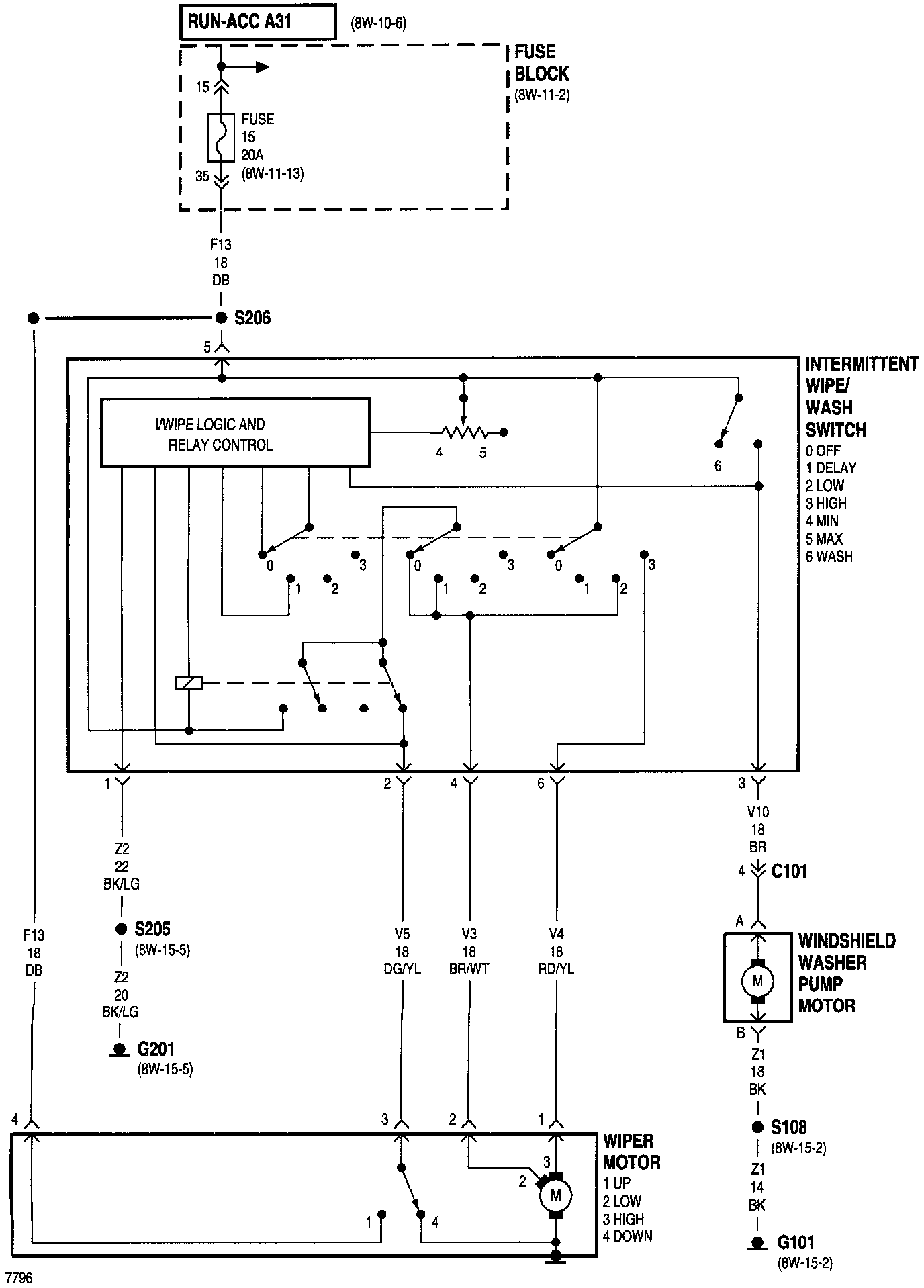

With Intermittent Wiper

Wipers:






NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
