Gearshift Mechanism Replacement

Gearshift Mechanism:

REMOVAL
1. Remove shifter knob.
2. Remove console assembly.
3. Remove shifter boot.
4. Disconnect gearshift cables at shifter end.
5. Remove the parking brake mechanism.
6. Remove the airbag control module.

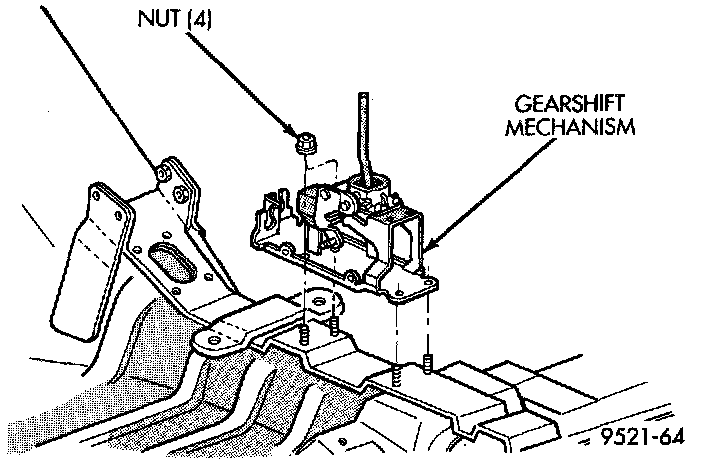

7. Remove the two remaining nuts at the base of the gearshift mechanism. Remove shifter.

INSTALLATION
For installation, reverse removal procedure.
