Gearshift Boot Replacement

Gearshift Boot:

REMOVAL
1. Remove shifter knob. Refer to gearshift knob removal.
2. Remove the console assembly.

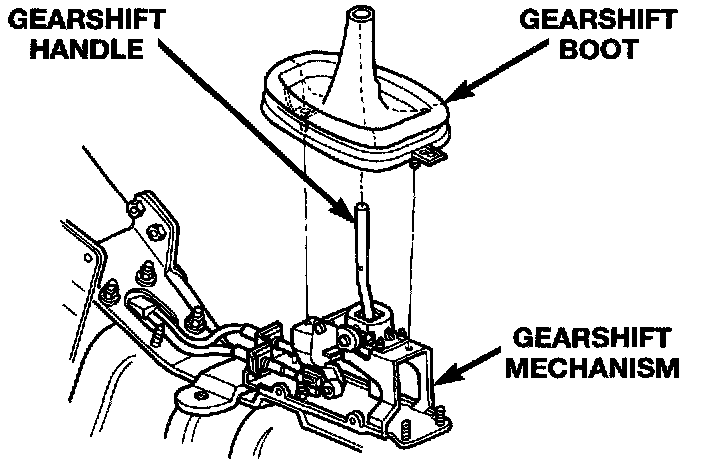

3. Snip the plastic retaining clips at the base of the boot. Remove the boot from the gearshift mechanism.

INSTALLATION0
For installation, reverse removal procedure. Install new plastic retaining clips.
