Shift Selector Shaft Bushing

Selector Shaft Bushing Removal:

REMOVAL
1. Remove selector shaft.

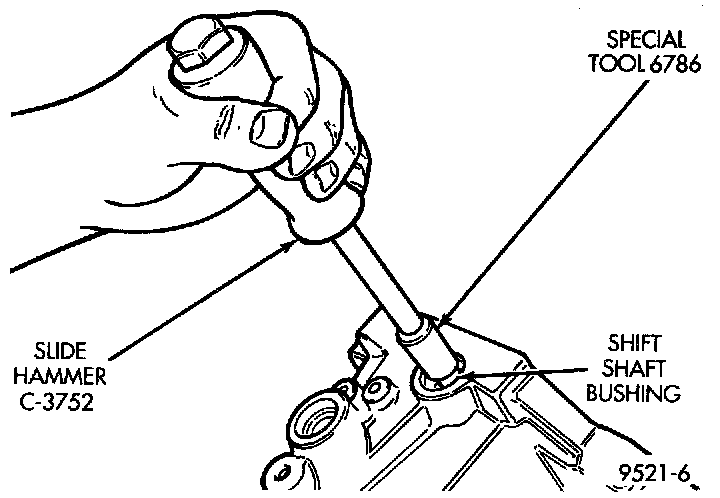

2. Thread tool #6786 into bushing.
3. Install slide hammer #3752 onto tool and remove bushing using slide hammer.

Selector Shaft Bushing Installation:

INSTALLATION

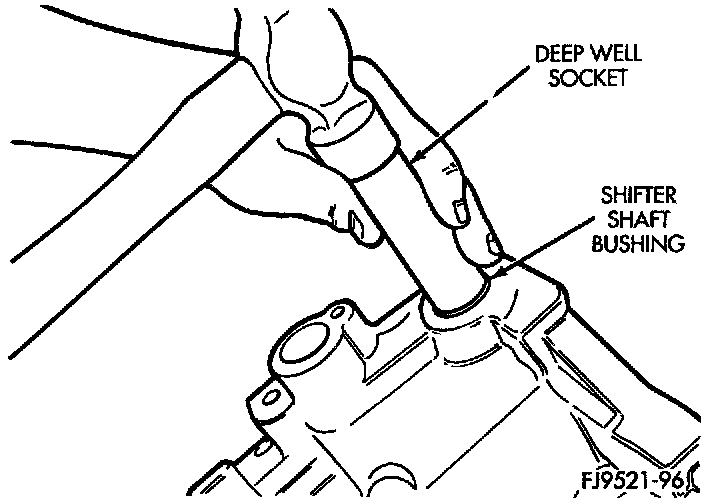

1. Position replacement bushing over selector shaft bore.
2. Using an appropriate size deep-well socket, install bushing in selector shaft bore.
