Shift Crossover Shaft

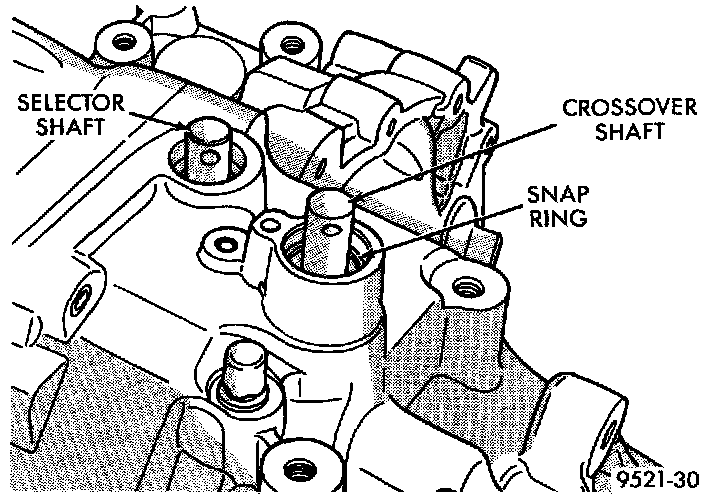

Crossover Shaft Snap Ring:

REMOVAL
1. Disassemble transaxle.
2. With the transaxle disassembled, remove the crossover shaft seal.
3. Using snap-ring pliers, remove the snap ring at the crossover shaft bore.
4. Push the crossover shaft in the case and remove the crossover assembly.

INSTALLATION
Reverse removal procedure to install crossover shaft.
