Output Bearing

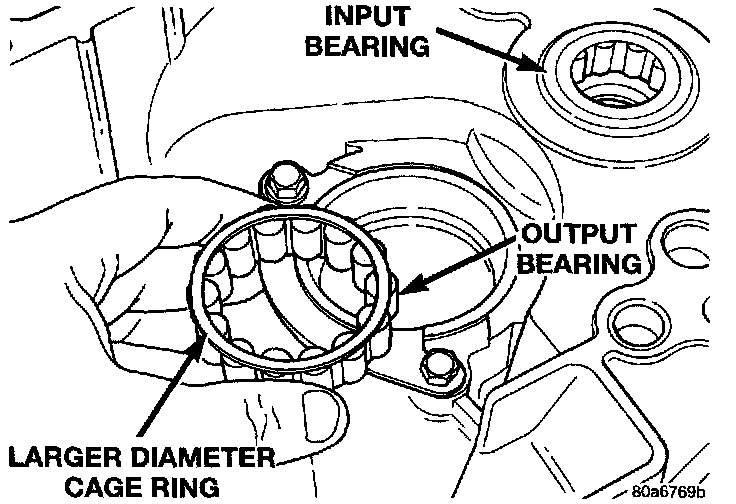

NOTE: The position of the output shaft bearing is critical. The bearing is not identical end-to-end. Install bearing with larger diameter cage ring facing out.

Output Roller Bearing:

REMOVAL
1. Remove caged roller bearing from output bearing race.

Output Bearing Strap:

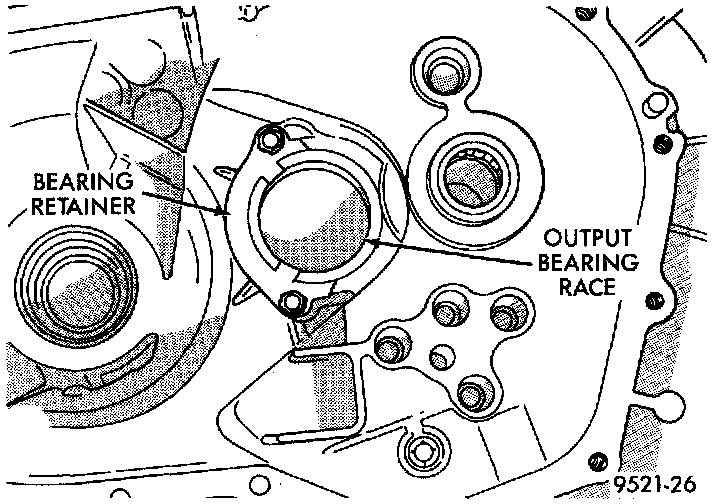

2. Remove screws at output bearing retainer strap.

Output Bearing Race Removal:

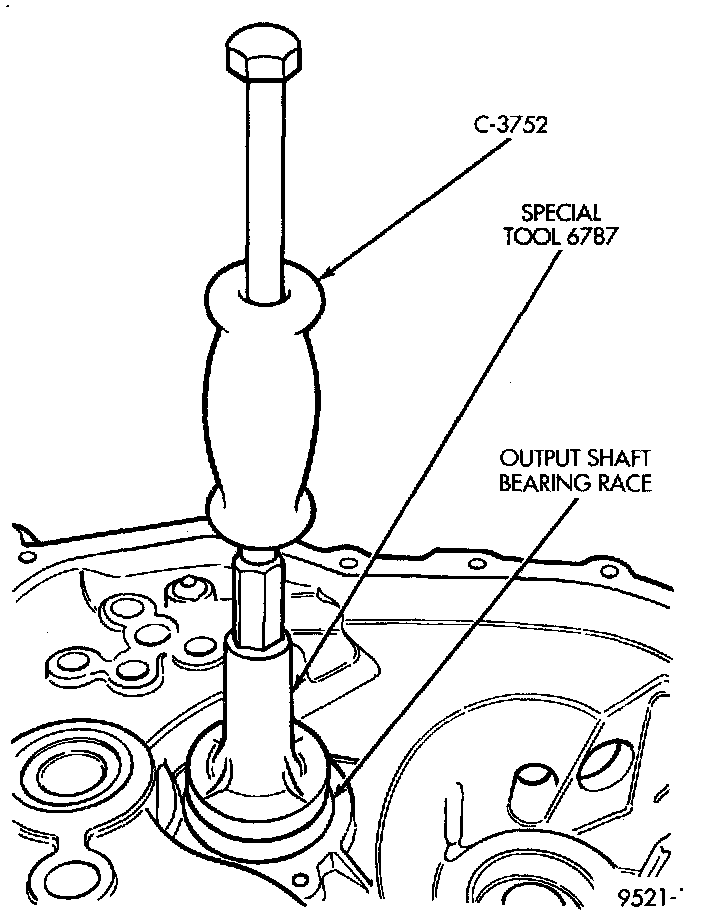

3. Install tool #6787 and slide hammer. Tighten tool to output bearing race.
4. Using slide hammer, remove output bearing race.

INSTALLATION
1. Line up output bearing race to race bore.

Output Bearing Race Installation:

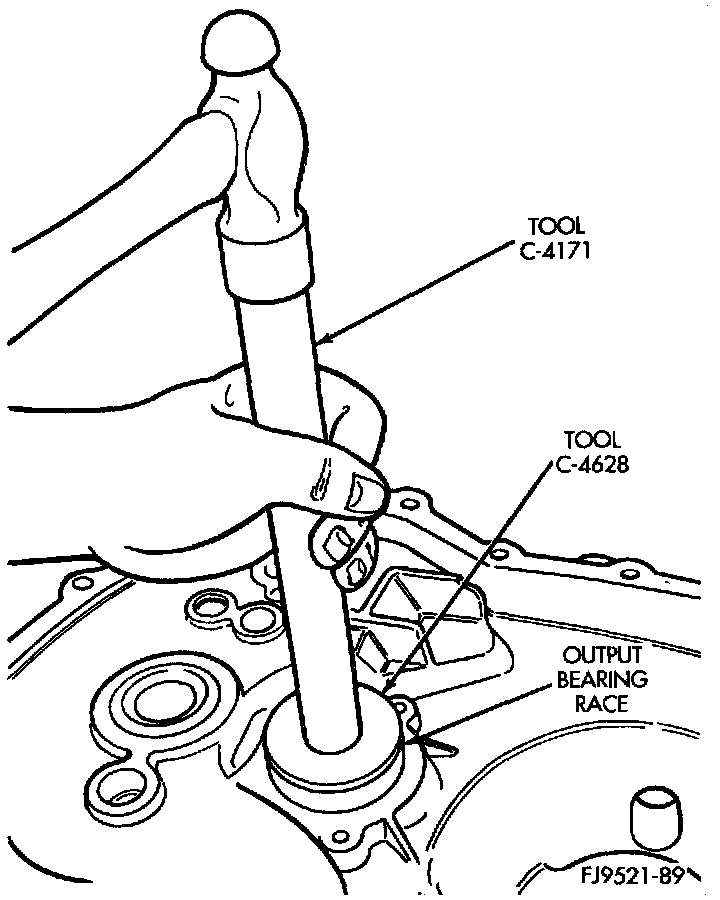

2. Insert tool #4628 with C-4171 into output bearing race. Tap race into bore. Install output bearing into race. Verify that the larger diameter cage is facing outward. Position bearing retaining strap. Tighten bolts to 11 Nm (96 inch lbs.).
