Differential Bearing Cups

REMOVAL
1. Remove differential assembly from gear case.

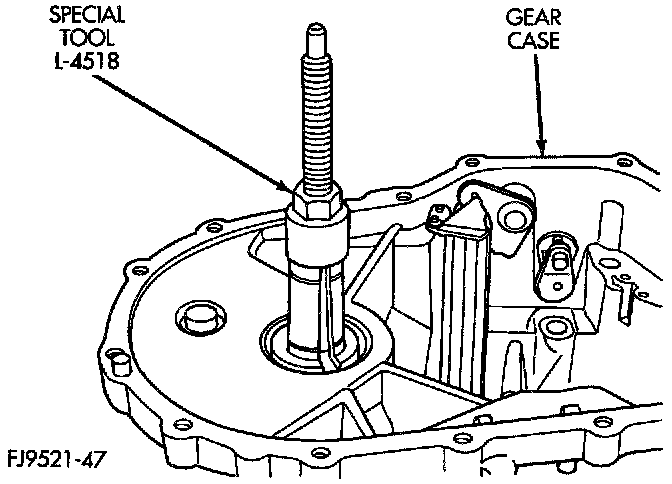

Tool Installed In Bearing:

2. Install Miller tool #L-4518 into the differential bearing cup.

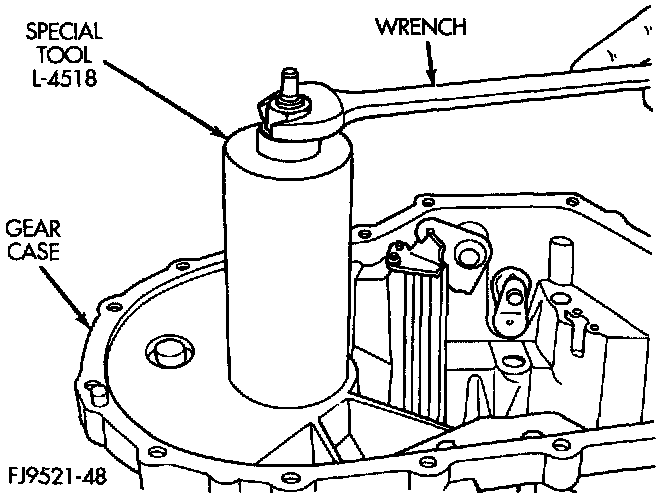

Tool Cup Installed:

3. Install the tool cup over the tool.
4. Tighten the tool until the race is removed from the case.

INSTALLATION
1. Position the bearing cup into the case.
2. Install the bearing cup onto Miller tool #L-4520.
3. Using Miller tool #L-4520 and C-4171 driver, install differential bearing cup into the transaxle case.
