Axle Shaft Seals

Axle Shaft Seal Removal:

REMOVAL

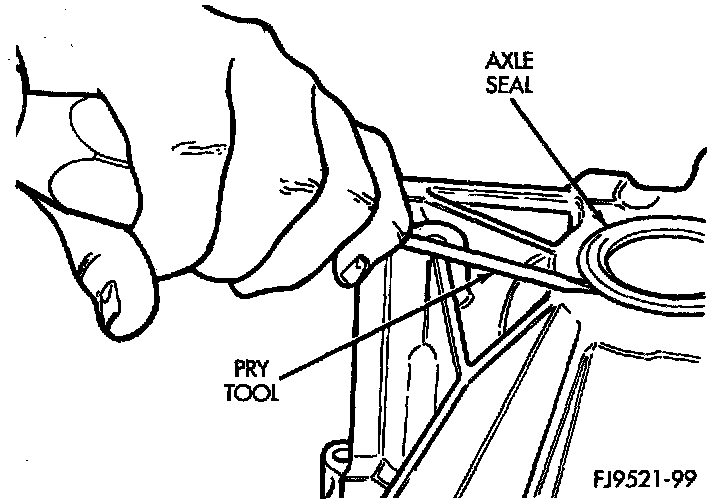

1. Insert a flat-blade pry tool at outer edge of axle shaft seal.
2. Tap on the pry tool with a small hammer and remove axle shaft seal.

Axle Seal Installation:

INSTALLATION
1. Clean axle shaft seal bore of any excess sealant.
2. Align axle shaft seal with axle shaft seal bore.

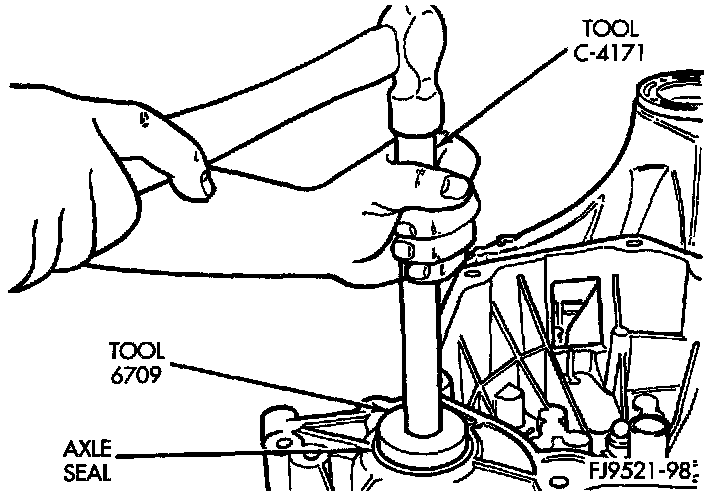

3. Install axle seal on tool #6709 with C-4171 and insert into axle shaft seal bore.
4. Tap seal into position.
