Speedometer Drive Gear

NOTE: The plastic speedometer drive gear must be removed from the differential case in order to service the differential gears

Pry Off Speedometer Drive Gear:

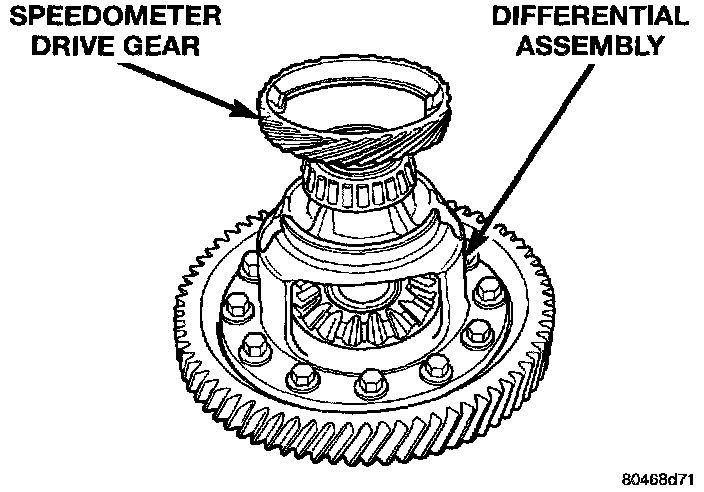

Speedometer Drive Gear Removed:

REMOVAL
Pry the plastic speedometer drive gear off of the differential case using a flat blade pry tool.

NOTE: A new speedometer drive gear must be installed on differential assembly. The lip on the speedometer drive gear must be positioned downward when installing onto differential assembly.

INSTALLATION

Speedometer Drive Gear:

1. Position speedometer drive gear onto differential assembly.

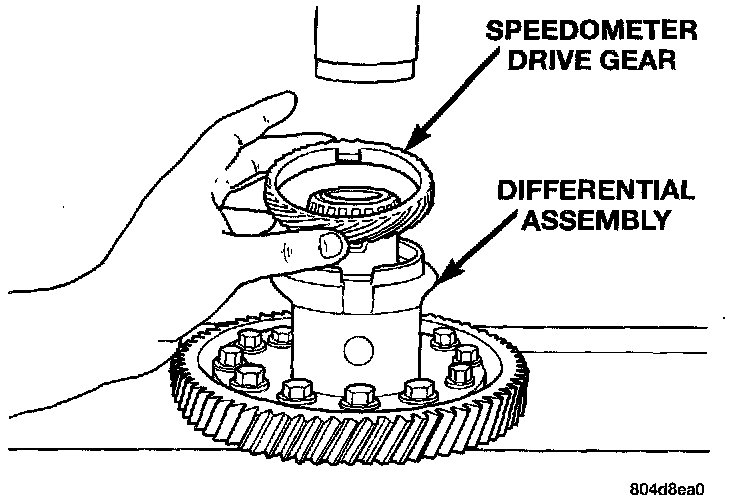

Press Gear Onto Differential:

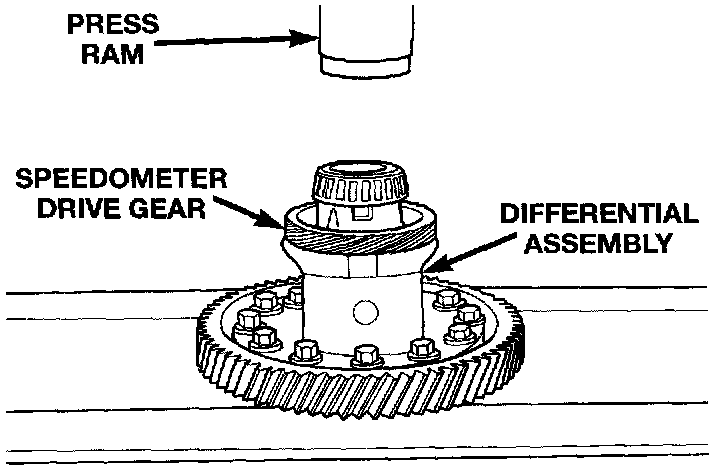

Drive Gear Pressed Onto Differential:

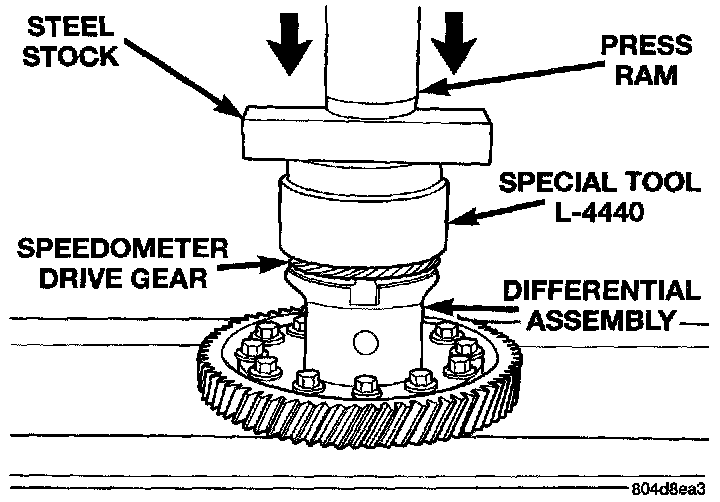

2. Using Miller Tool # L-4440 and steel stock, press speedometer drive gear onto differential. Do not use a hammer.
