Symptom Related Diagnostic Procedures

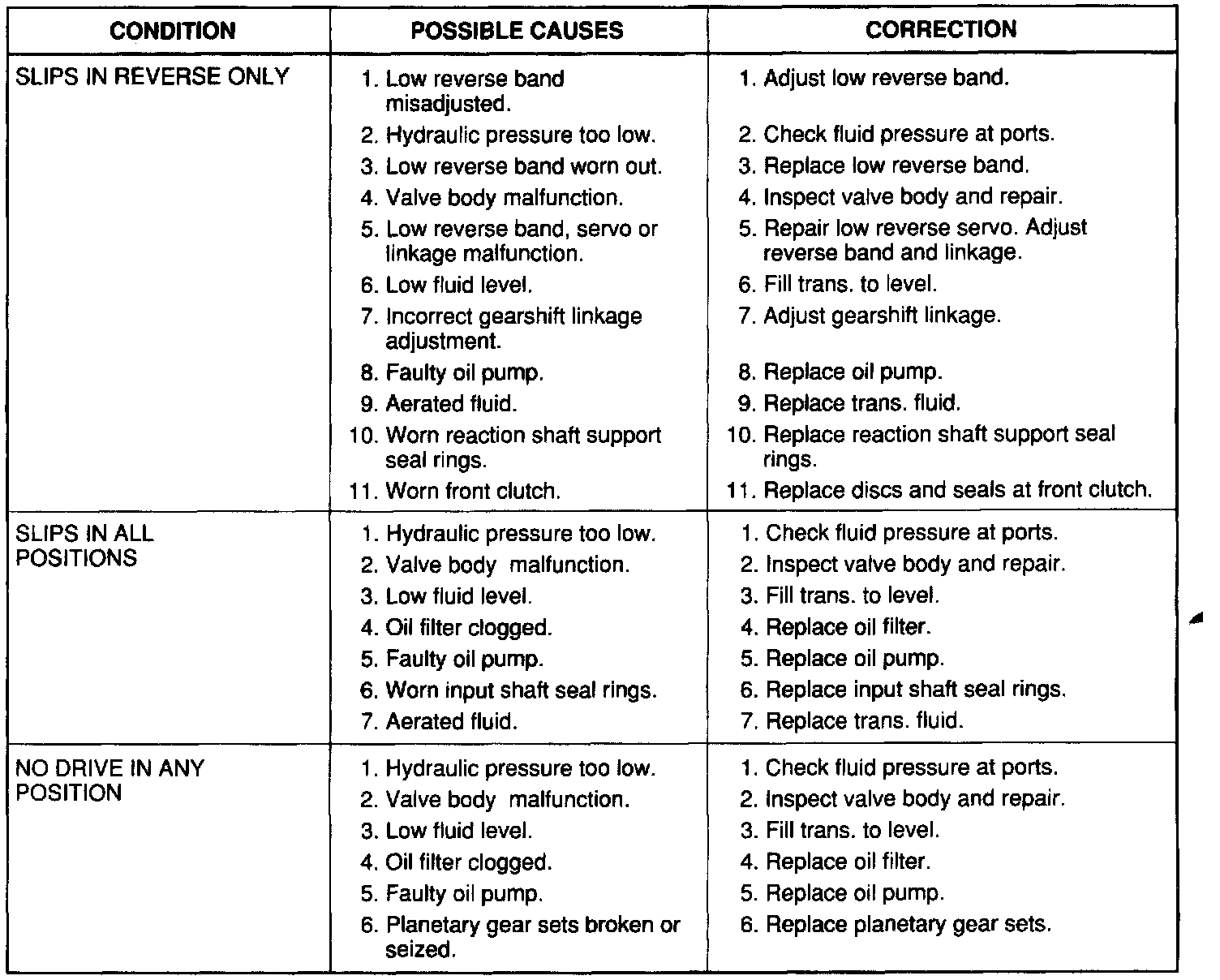

Part 1 Of 8:

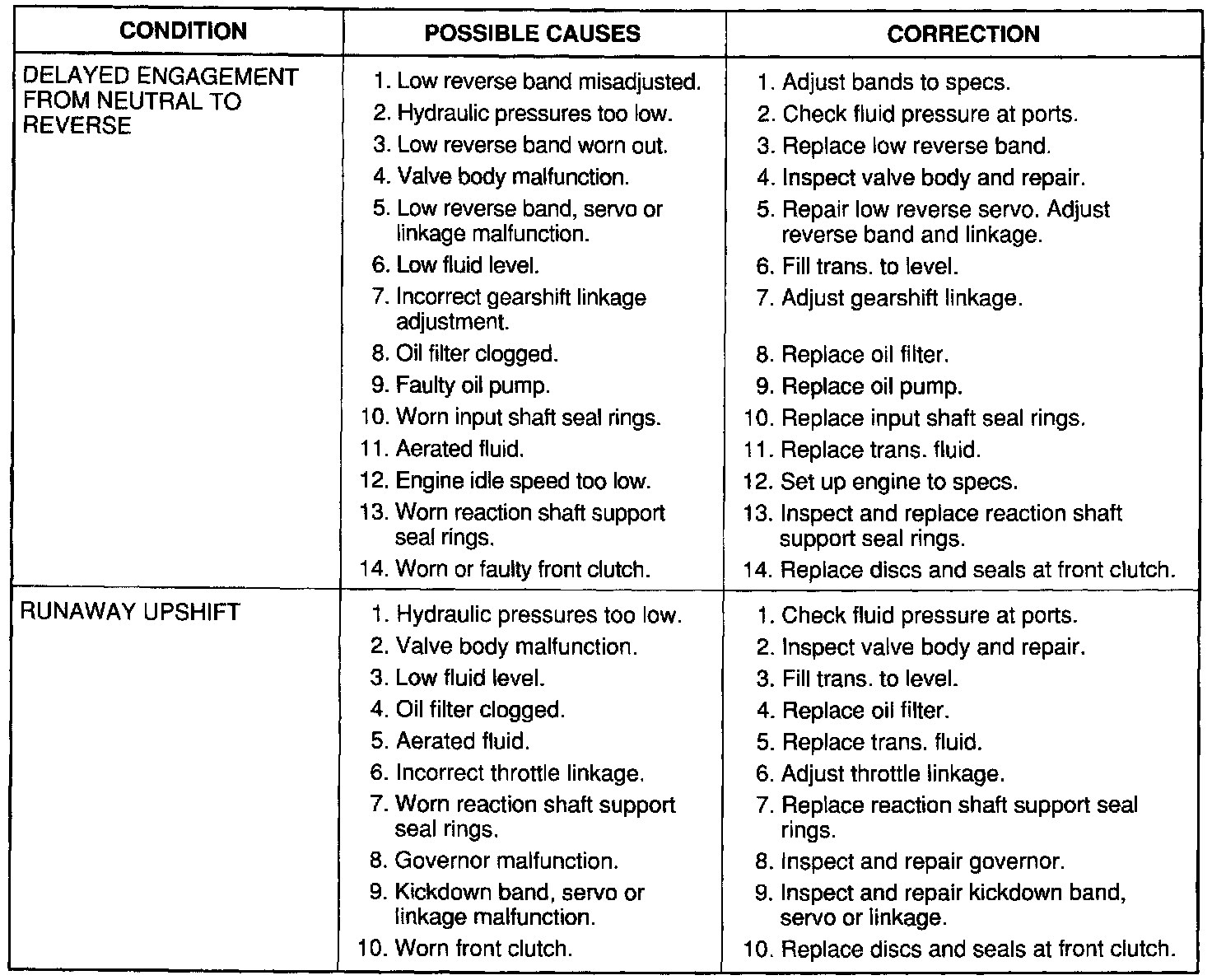

Part 2 Of 8:

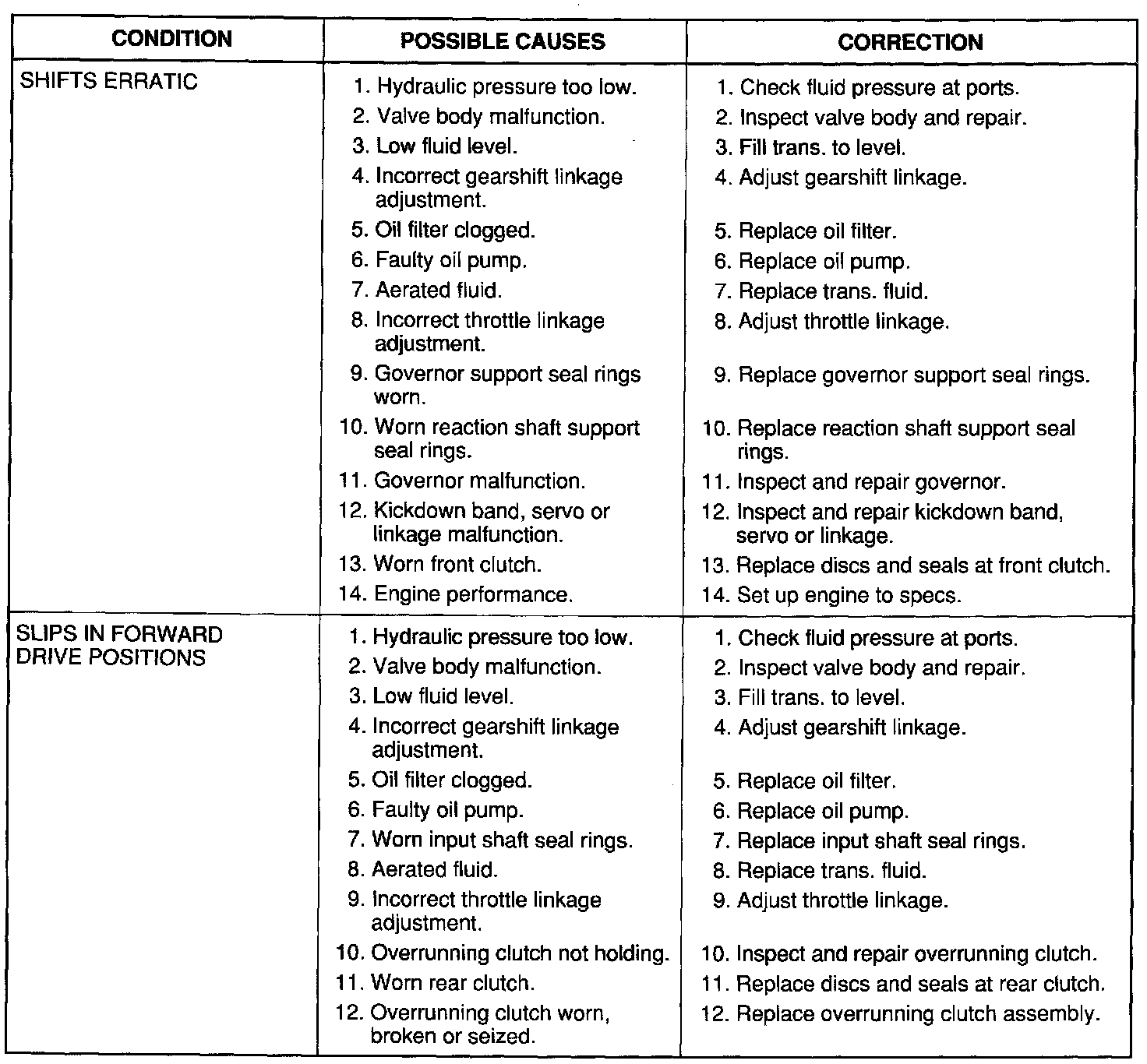

Part 3 Of 8:

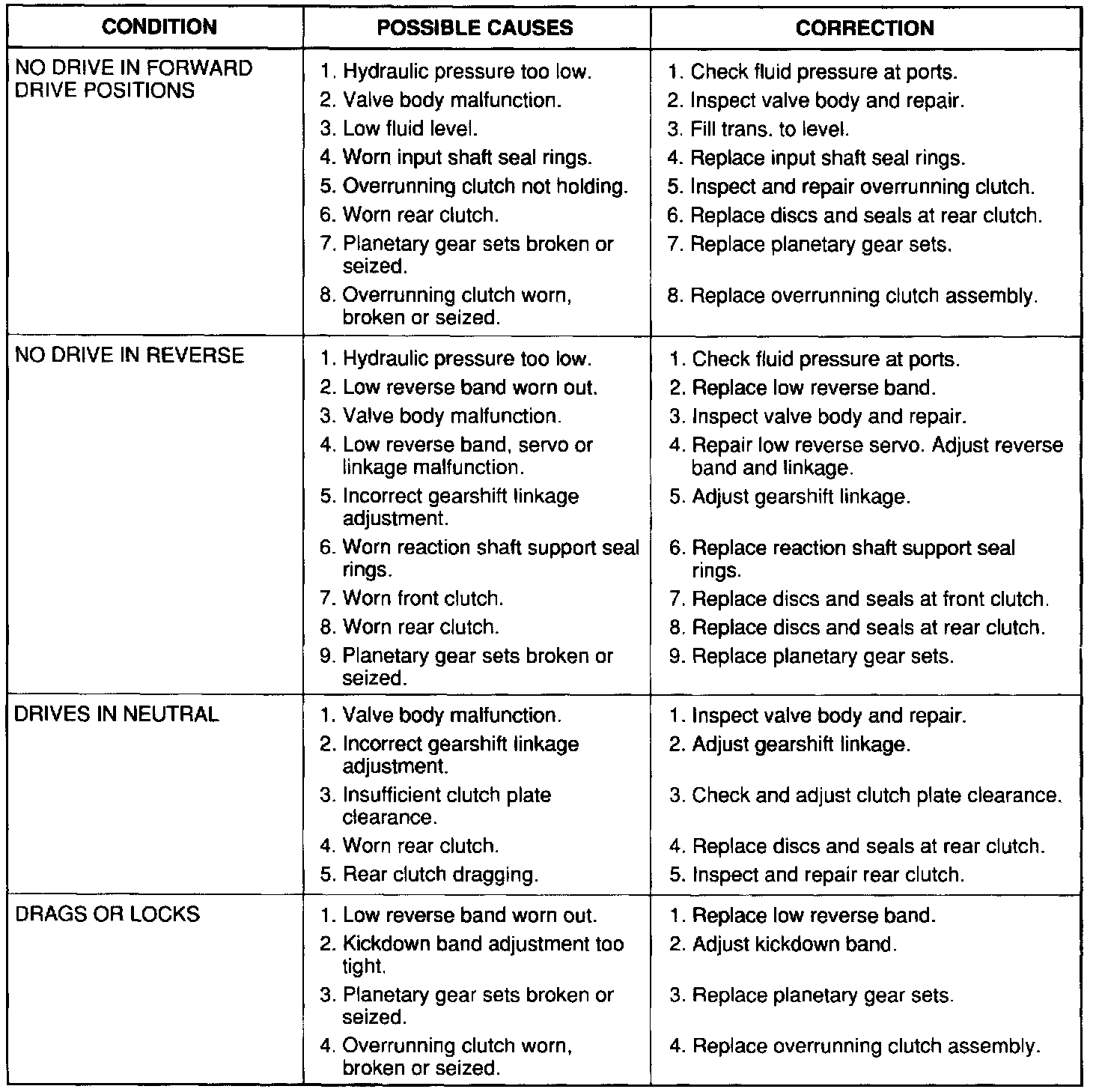

Part 4 Of 8:

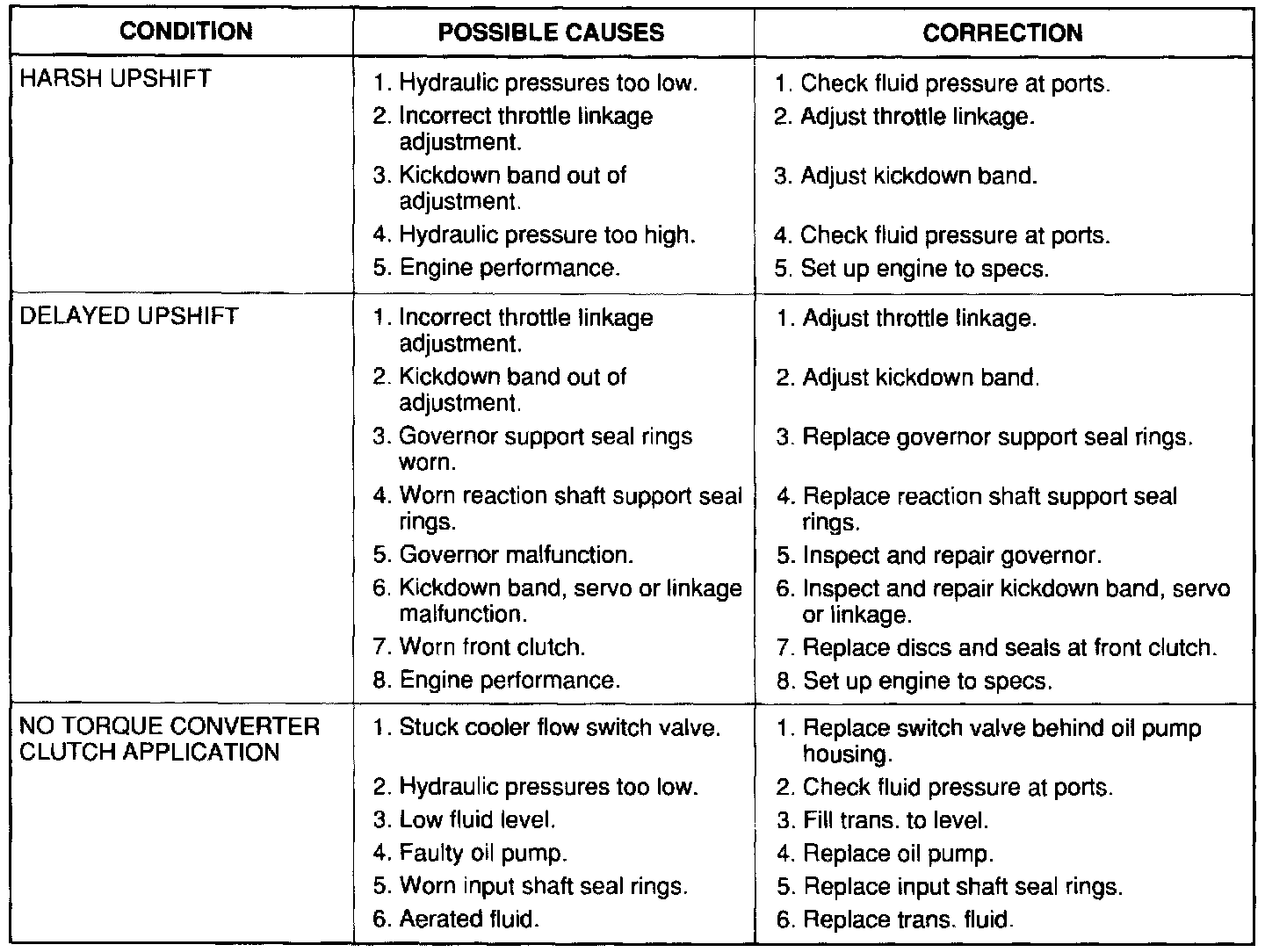

Part 5 Of 8:

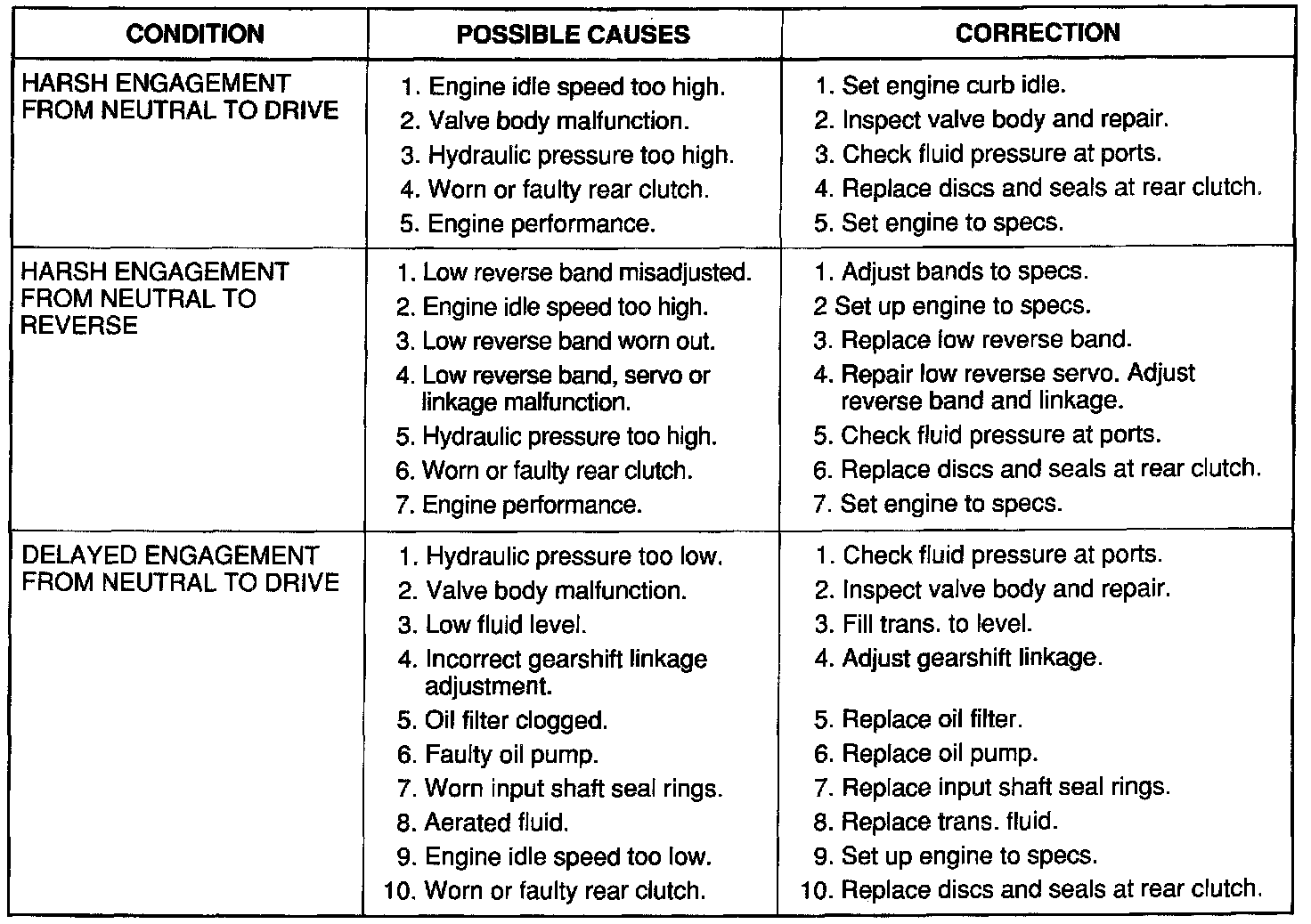

Part 6 Of 8:

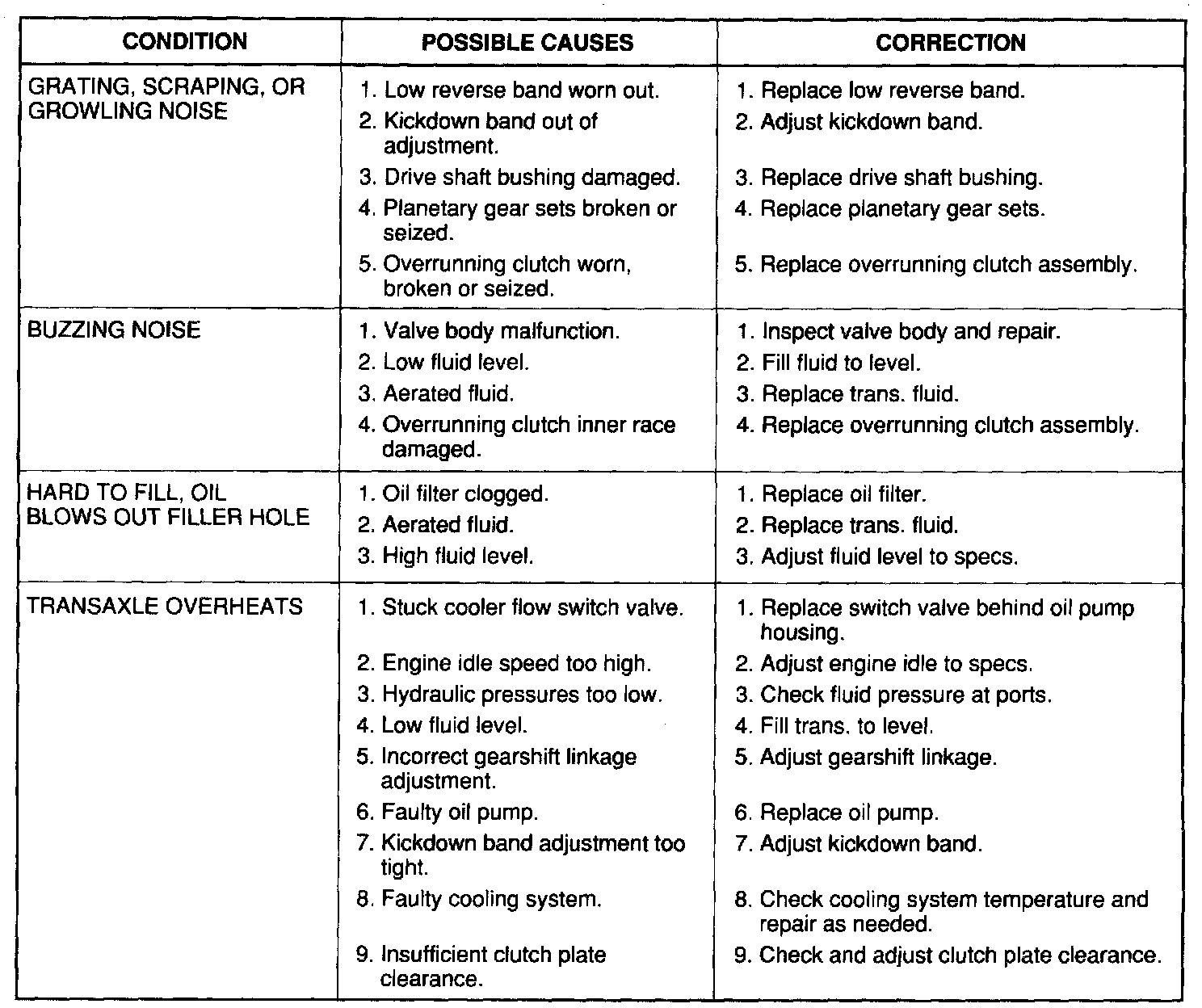

Part 7 Of 8:

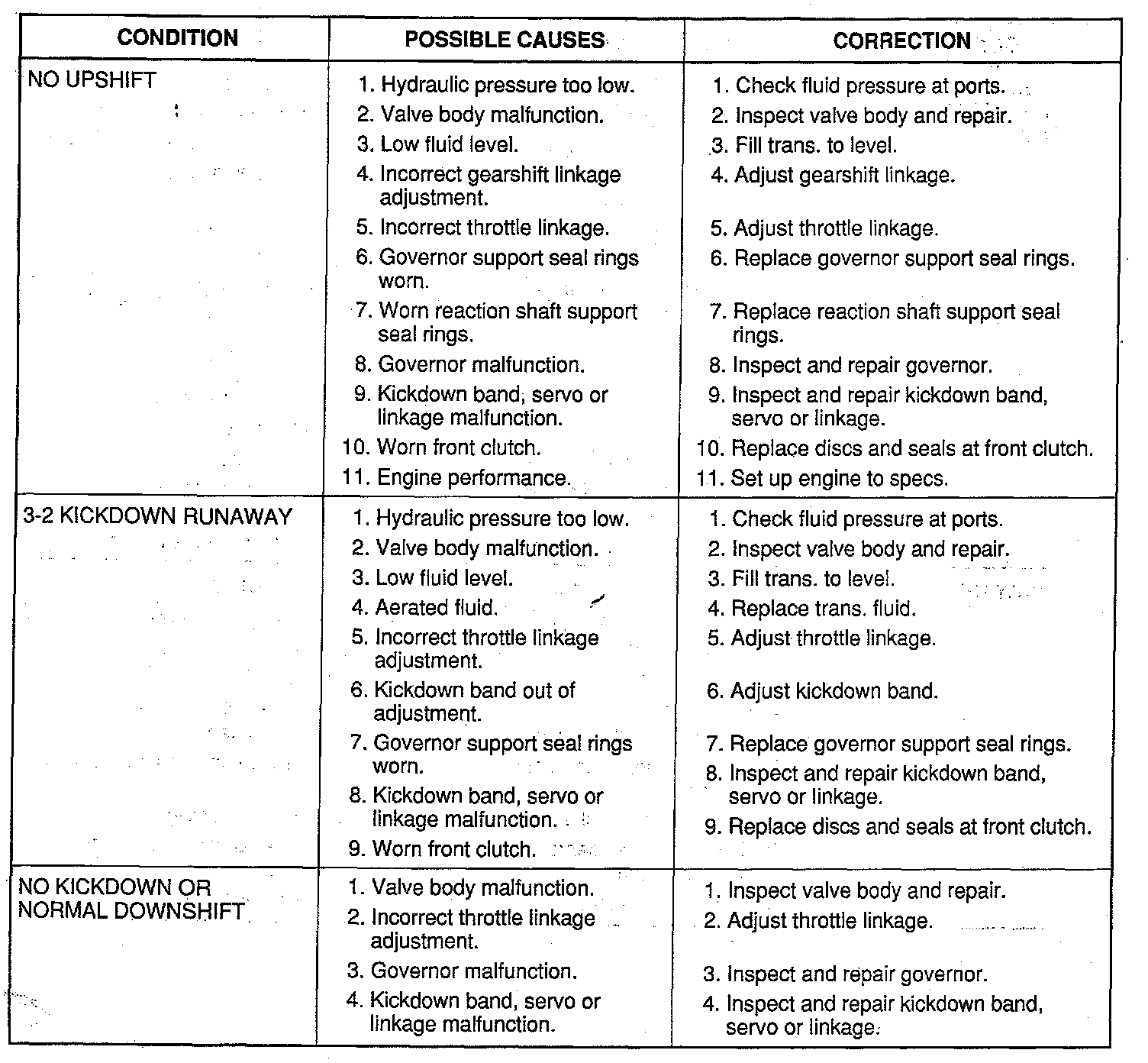

Part 8 Of 8:

These charts should be used to help diagnose hydraulic or mechanical faults in the transaxle.
