Removal

1. Disconnect and isolate, the battery negative cable from the vehicle battery.
2. Remove console assembly.
3. Remove the gearshift knob set screw and knob.
4. Remove the screws retaining the gearshift indicator bezel and remove bezel and indicator lamp.

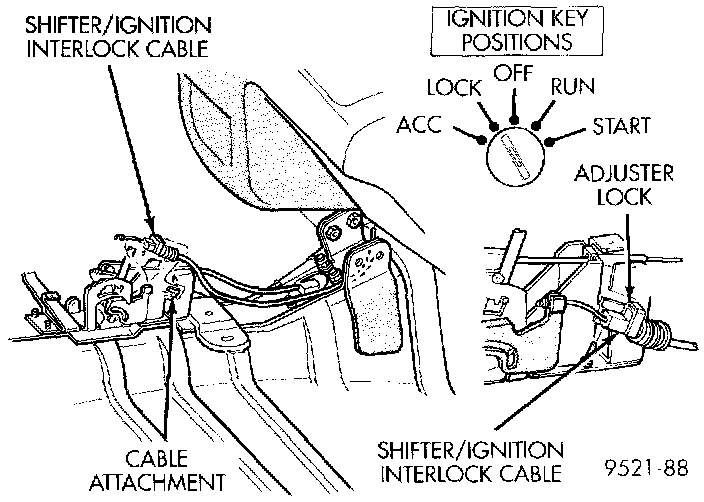

Shifter Ignition Interlock Cable:

5. Pry up the adjuster lock on the shifter/ignition interlock cable. Unsnap the shifter/ignition interlock cable end fitting from the groove in the gearshift mechanism.
6. Remove the cable core end from the plastic cam of the shifter mechanism.
7. Pull cable up and out of the gearshift mechanism.
8. Remove the three screws along the bottom of the lower steering column cover and screw on the left outward face of cover.
9. Grasp the cover and pull rearward until the clips disengage.
10. Remove two screws at the upper area of the column liner and lower left corner.
11. Remove steering column cover and steering column cover liner.
12. Lift up the top cover and cluster bezel until the clips disengage and separate to provide clearance.

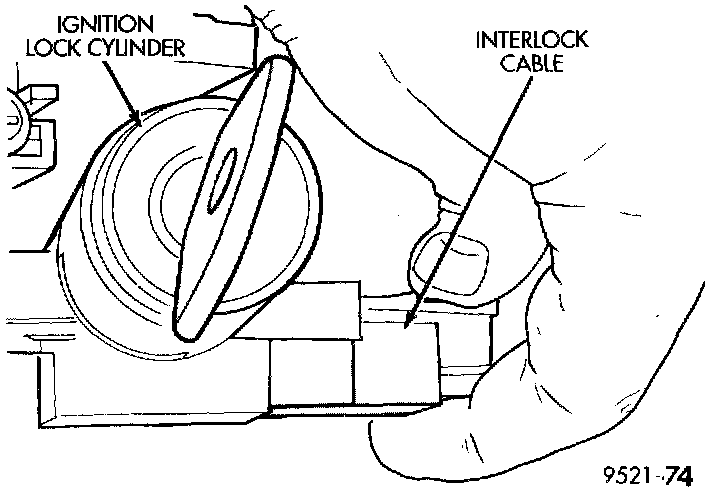

13. Insert a screwdriver into access hole in the lower shroud. Depress the cylinder button while rotating the cylinder with the key inserted between the ON and START positions. This will disengage the cylinder from the column.
14. Pull out the key cylinder.
15. Remove the three lower-to-upper shroud attaching screws through the bottom of the lower shroud.
16. Separate the upper and lower shrouds.

Interlock Cable And Connector:

17. Grasp the interlock cable clip and connector. Remove the cable from the interlock housing.
18. Unclip the cable from the retaining clip located within the wiring harness.
19. Remove interlock cable from under center console mounting bracket and out front of dash panel.
