Automatic Transmission/Transaxle: Diagrams

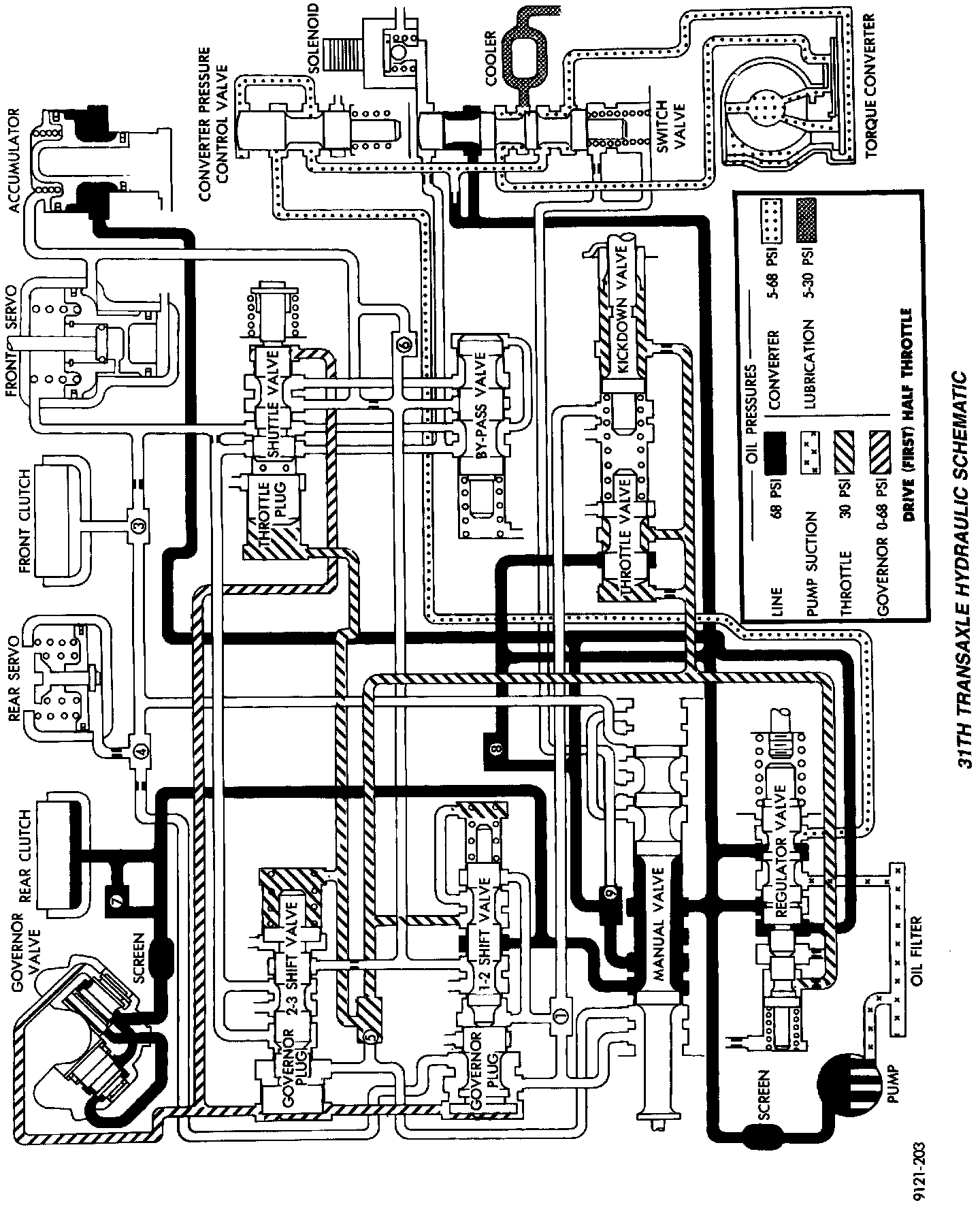

Drive (First) Half Throttle:

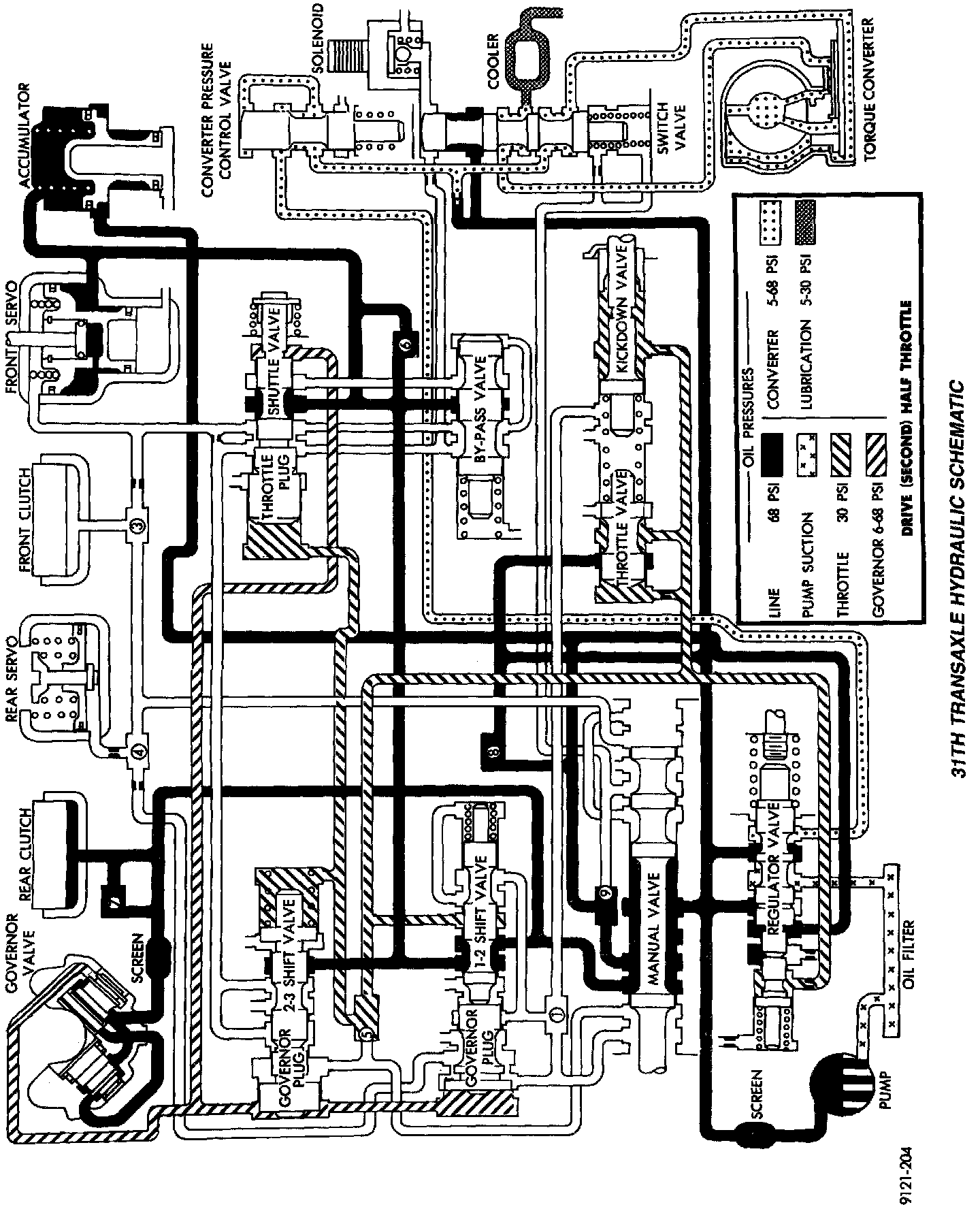

31th Transaxle Hydraulic Schematic Part 2 Of 8:

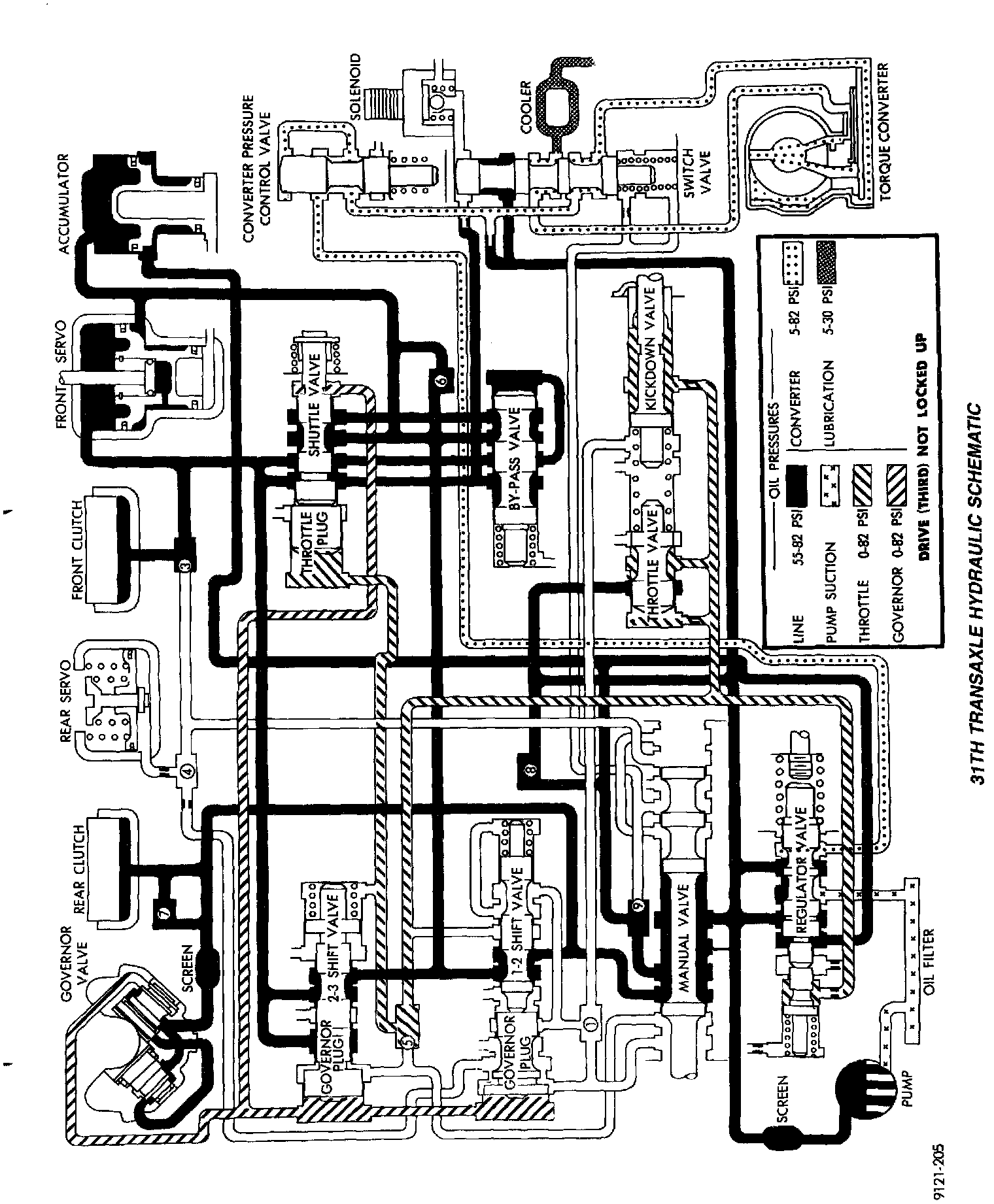

Drive (Third) Not Locked Up:

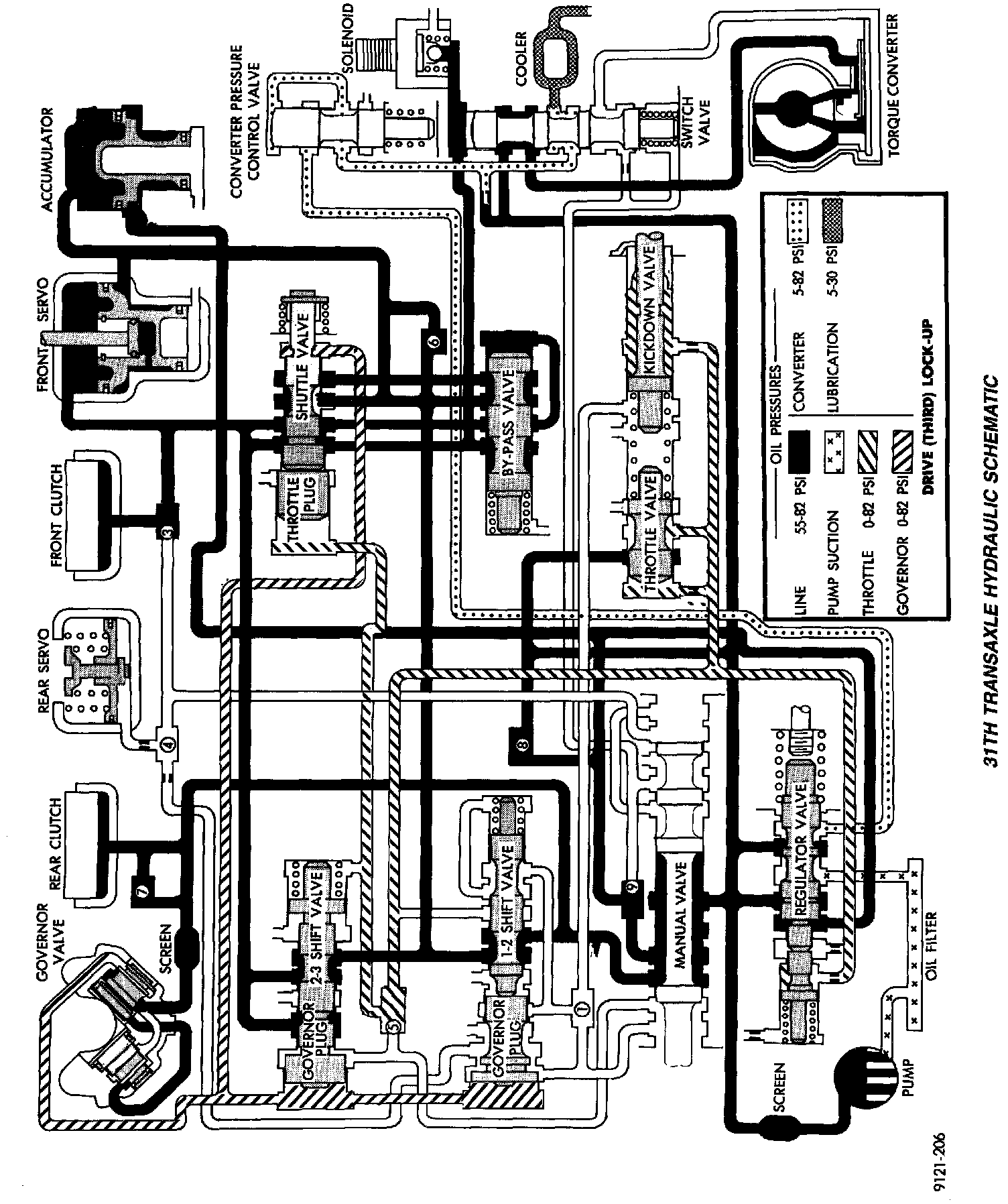

Drive (Third) Lock Up:

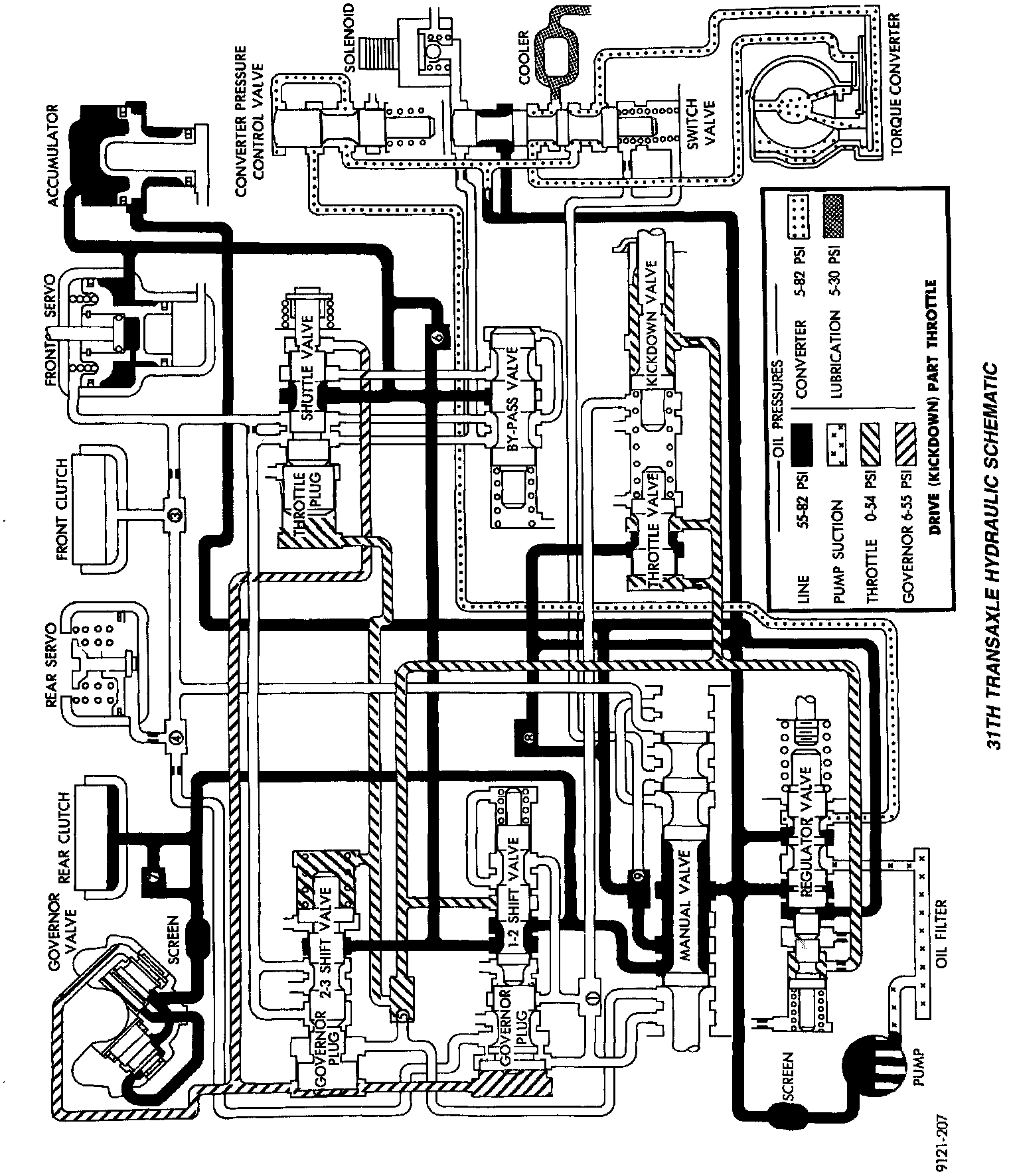

Drive (Kickdown) Part Throttle:

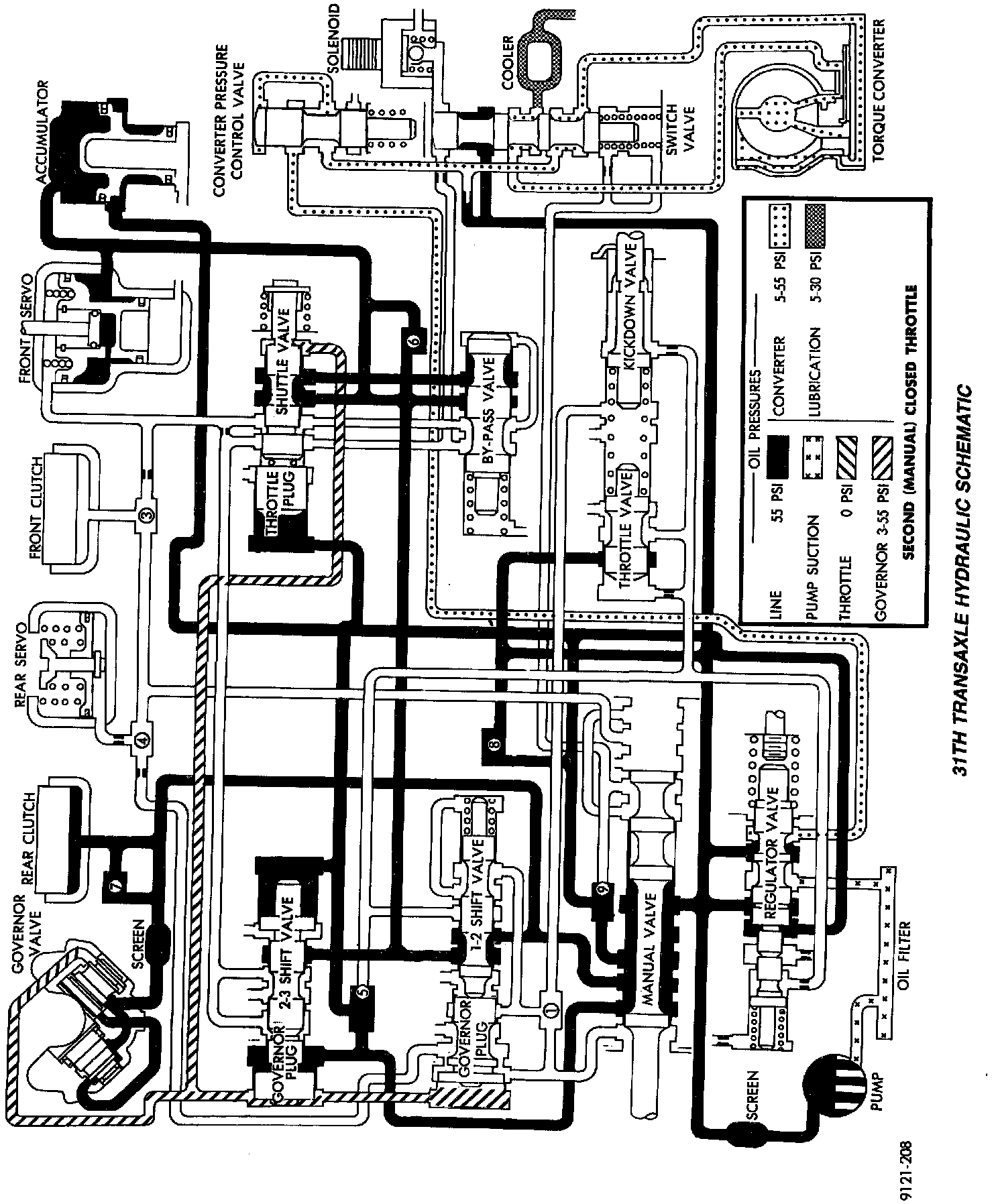

Second (Manual) Closed Throttle:

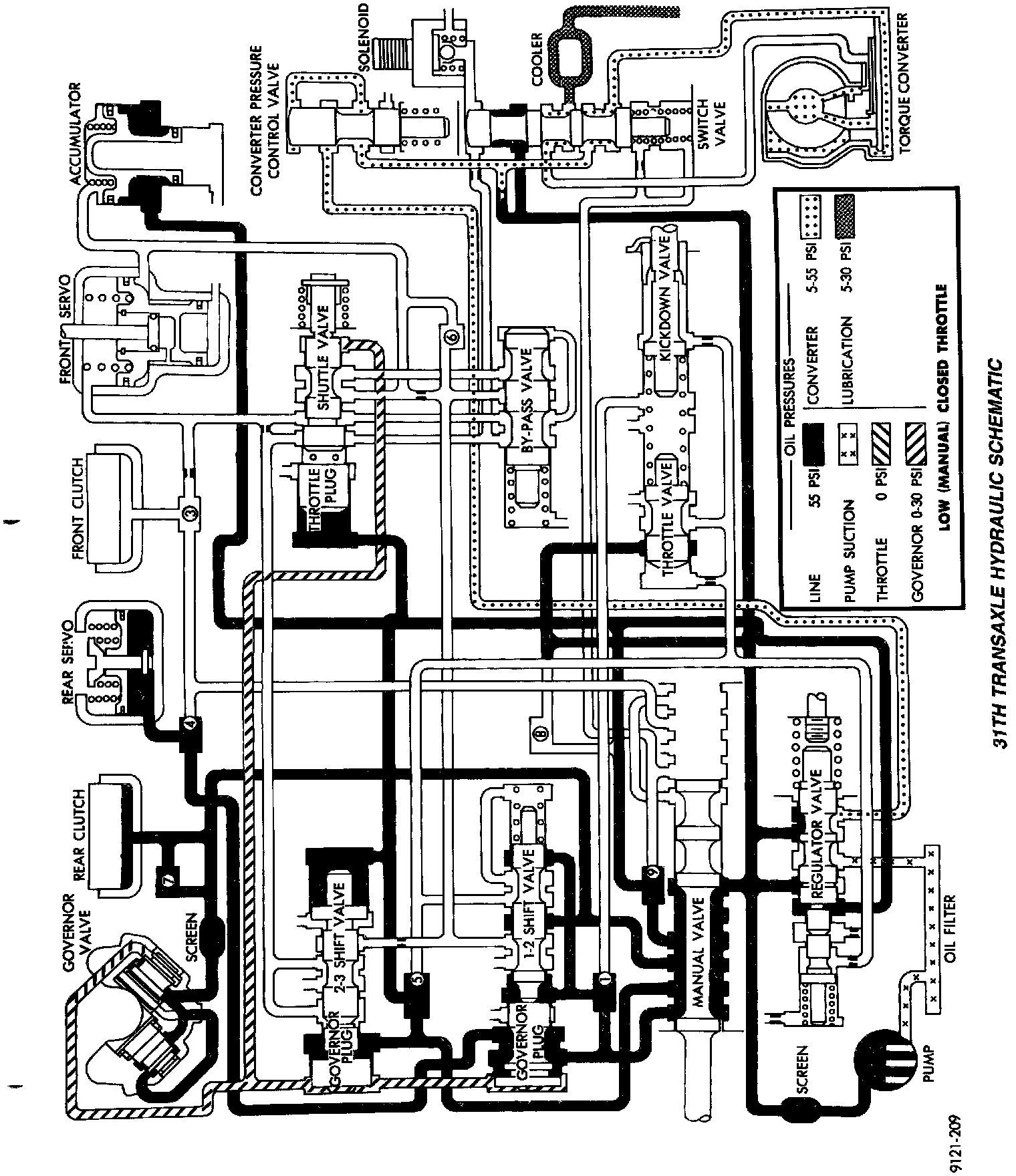

Low (Manual) Closed Throttle:

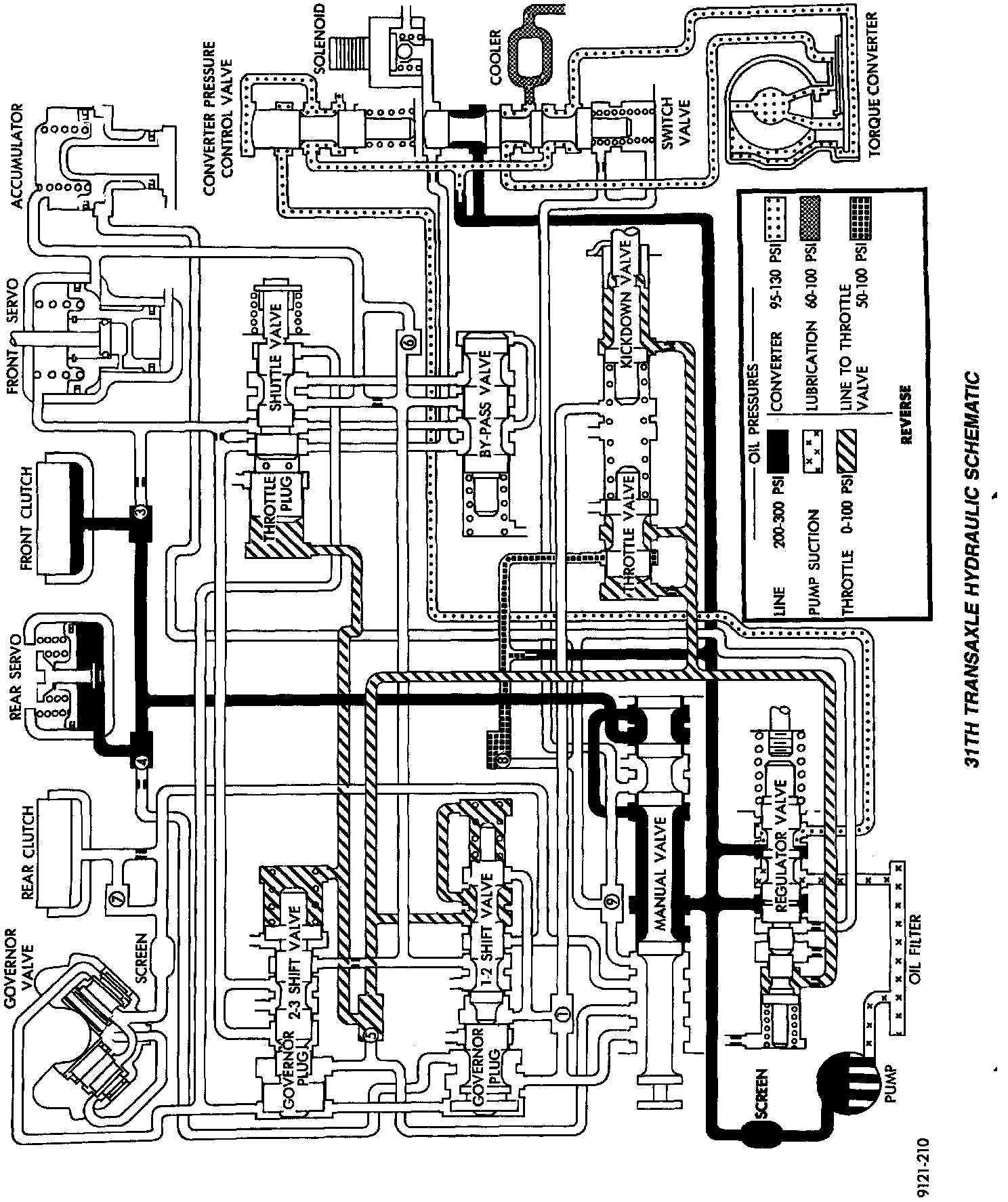

Reverse:
