Disassembly

NOTE: The rear strut unit is not serviced and must be replaced as an assembly if found to be defective. The strut is available with 2 calibrations, be sure strut is replaced with an assembly of the same calibration.

COMPONENTS
The components of the strut assembly listed below are replaceable if found to be defective.
- Coil spring (Coil springs come in a standard rate of 120 lbs. per inch be sure spring is replaced with a spring of the same rate.)
- Dust shield
- Mount assembly
- Jounce Bumper
- Lower Spring Isolator
- Shaft Nut

PROCEDURE
1. Remove strut assembly requiring service from the vehicle.

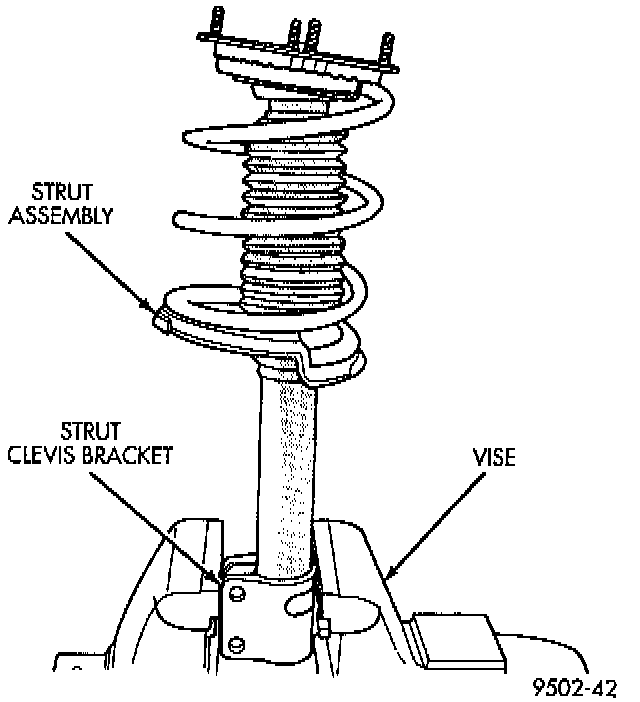

2. Position strut assembly in a vise. Using paint or equivalent, mark the strut unit, lower spring isolator, spring and upper strut mount for indexing of the parts at assembly.

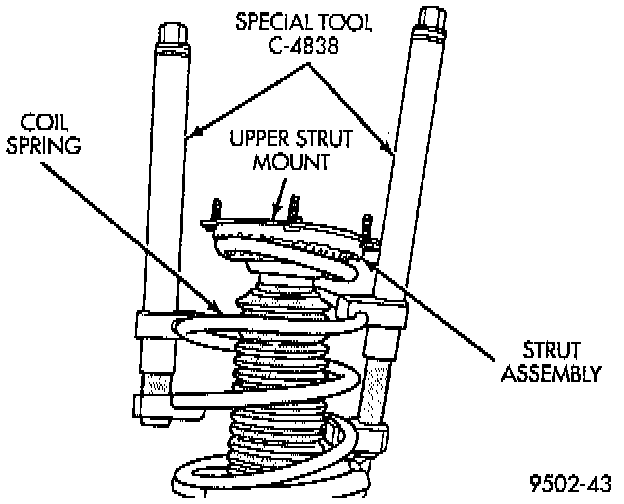

3. Position Spring Compressors, Special Tool C-4838, or equivalent on the strut assembly spring. Compress coil spring until all load is removed from upper strut mount assembly.
