Rear

Adjustable Rear Strut:

The rear struts used on a vehicle equipped with the competition package are adjustable. The adjustable rear struts use a unique strut shaft with an adjustment rod through the center of it.

Adjustable Strut Adjustment Knob:

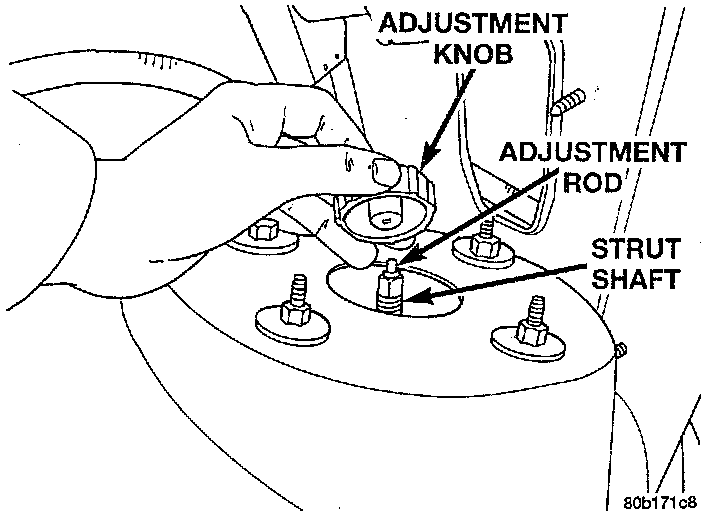

Adjustment Knob Installation:

The compression dampening of the strut is adjusted using the adjustment knob which is supplied with the vehicle at the time of purchase. The adjustment is done by inserting the flat on the end of the adjustment rod into the grove on the adjustment knob. The compression dampening is increased by rotating the adjustment knob in a counterclockwise direction and decreased by rotating the adjustment knob in a clockwise direction.
