Power Steering Pump Mounting Bracket Replacement
DISASSEMBLE1. Remove power steering pump from engine.
CAUTION: Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. This will damage the pulley and the power steering pump.

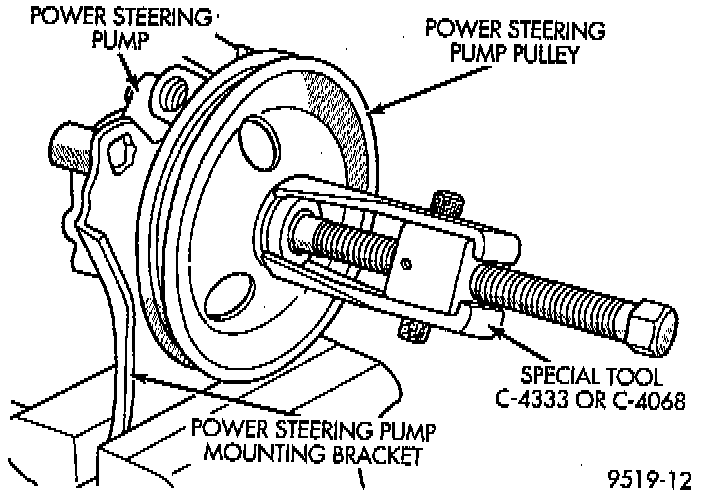

2. Mount the power steering pump in a vise using the power steering pump mounting bracket. Mount Puller, Special Tool C-4333 or C-4068 on power steering pump pulley. Remove the power steering pump pulley from the power steering pump shaft.

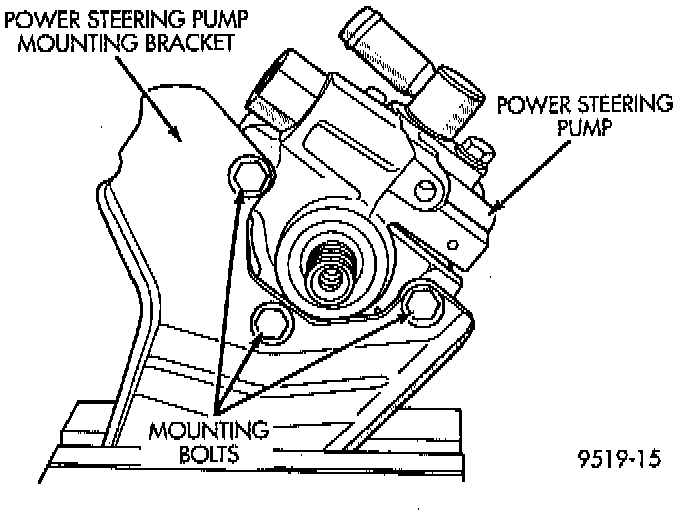

3. Remove the 3 bolts attaching the power steering pump to the mounting bracket.
4. Remove power steering pump from mounting bracket.
ASSEMBLE
1. Install power steering pump on mounting bracket. Install the 3 power steering pump mounting bolts. Torque the 3 mounting bolts to 54 Nm (40 ft. lbs.).
CAUTION: Do not hammer on power steering pump pulley or shaft to remove power steering pump pulley. This will damage the pulley and the power steering pump.

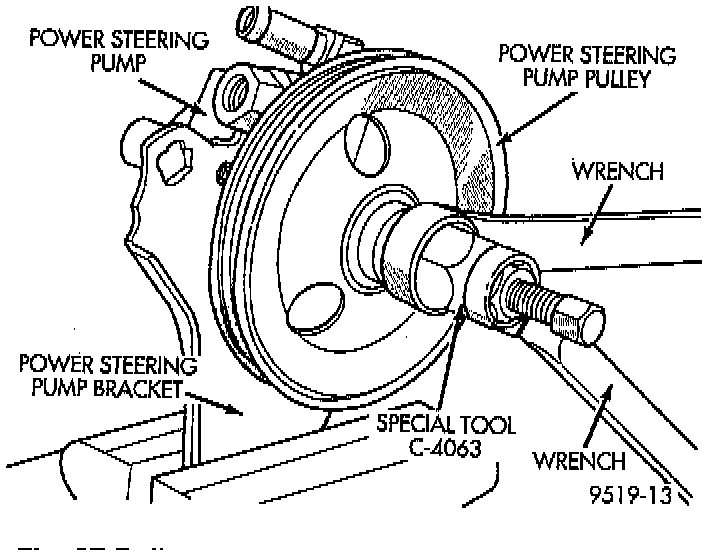

2. Place power steering pump pulley squarely on end of power steering pump shaft. Mount Installer, Special Tool C-4063 in internal threads of the power steering pump shaft and against power steering pump pulley.

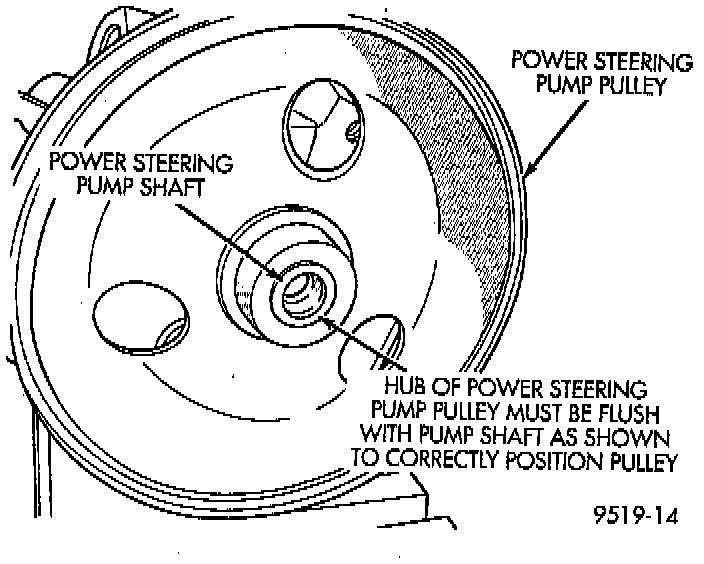

3. Ensuring that special tool and pulley remain aligned with pump shaft, force pulley onto power steering pump shaft until flush with the end of the shaft. When pulley is flush with shaft tool will no longer be able to be turned.
4. Remove Installer, Special Tool C-4063 from power steering pump.
5. Install power steering pump and bracket assembly back on engine.
