Front and Rear Toe Setting Procedure

1. Prepare vehicle as described in the Pre-Alignment Vehicle Inspection procedure.
2. Center steering wheel and lock in place using a steering wheel clamp.
3. When performing the Toe setting procedure, set rear wheel Toe to preferred specification first, then set front wheel Toe to the preferred specification.

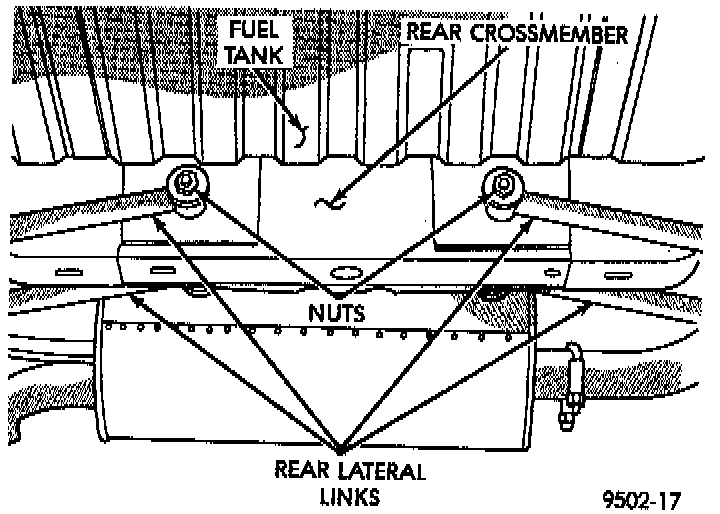

4. Loosen nuts on attaching bolts, for the left and right rear lateral links to rear crossmember.

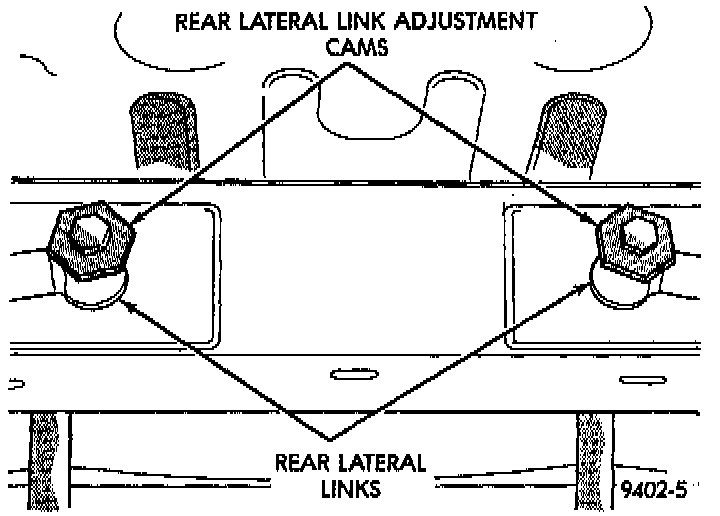

CAUTION: When adjusting rear toe, the notches on the lateral link adjustment cams are not to be facing down. The notches in the adjustment cams are only to be facing up or toward one side.

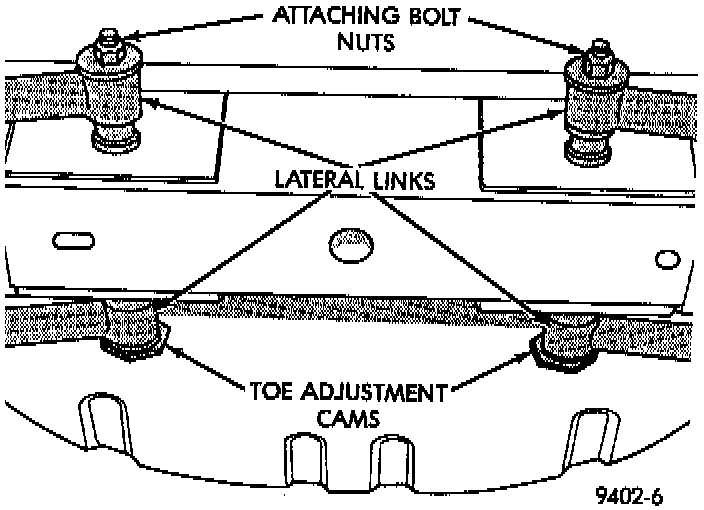

5. Rotate lateral link adjustment cams until the preferred rear Toe specification is obtained.





6. While holding Toe adjustment cams from turning, tighten left and right lateral links to rear crossmember attaching bolt nuts. This will securely hold adjustment cams in position. Then while holding lateral link attaching bolt and adjustment cam from turning, torque nut of lateral link attaching bolt to 95 Nm (70 ft. lbs.).

CAUTION: Do not twist front inner tie rod to steering gear rubber boots during front wheel Toe adjustment.

Front Wheel Toe Adjustment:

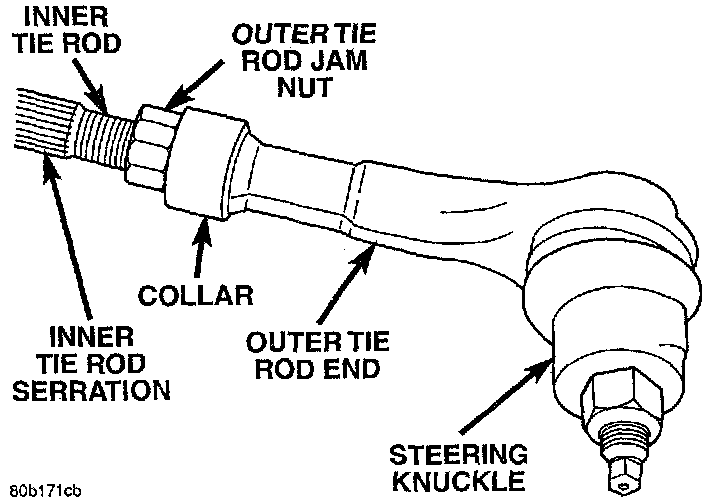

7. Loosen inner to outer tie rod end jam nuts. Grasp inner tie rods at serrations and rotate tie rods to set the front wheel Toe to the preferred specification.
8. Tighten tie rod locknuts to 54 Nm (40 ft. lbs.) torque.
9. Adjust steering gear to tie rod boots at tie rod.
10. Remove steering wheel clamp.
