Starting System: Description and Operation

INTRODUCTION

Starting System:

The starting system has:
- Ignition switch
- Starter relay
- Neutral starting and back up switch
- Clutch pedal position switch
- Wiring harness
- Battery
- Starter motor with an integral solenoid

SYSTEM OPERATION
Bosch Starter
The Bosch is a permanent magnet starter motor. A planetary gear train transmits power between starter motor and pinion shaft. The fields have six permanent magnets. The starter system consists of two separate circuits:
- A high amperage supply to feed the starter motor.
- A low amperage circuit to control the starter solenoid.

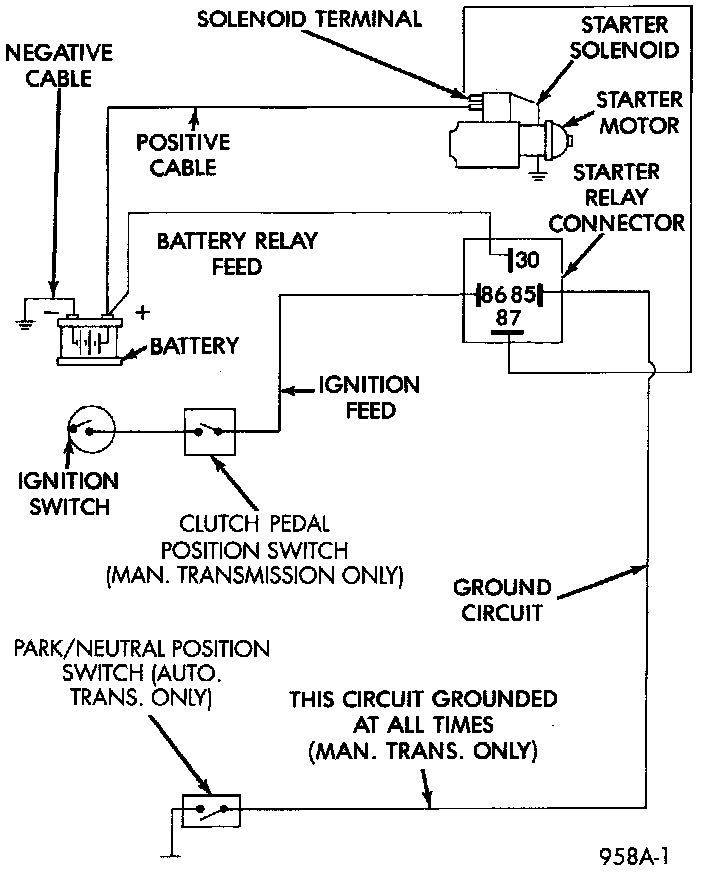

Supply Circuit And Control Circuit
The starter system consists of two separate circuits:
- A high amperage supply to feed the starter motor.
- A low amperage circuit to control the starter solenoid.
