Electrical - Connector/Ground Location Revisions

NUMBER: 26-05-98I

GROUP: Miscellaneous

DATE: May, 1998

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1998 Neon Service Manual - Publication Number 81-270-8025

DESCRIPTION OF CHANGES

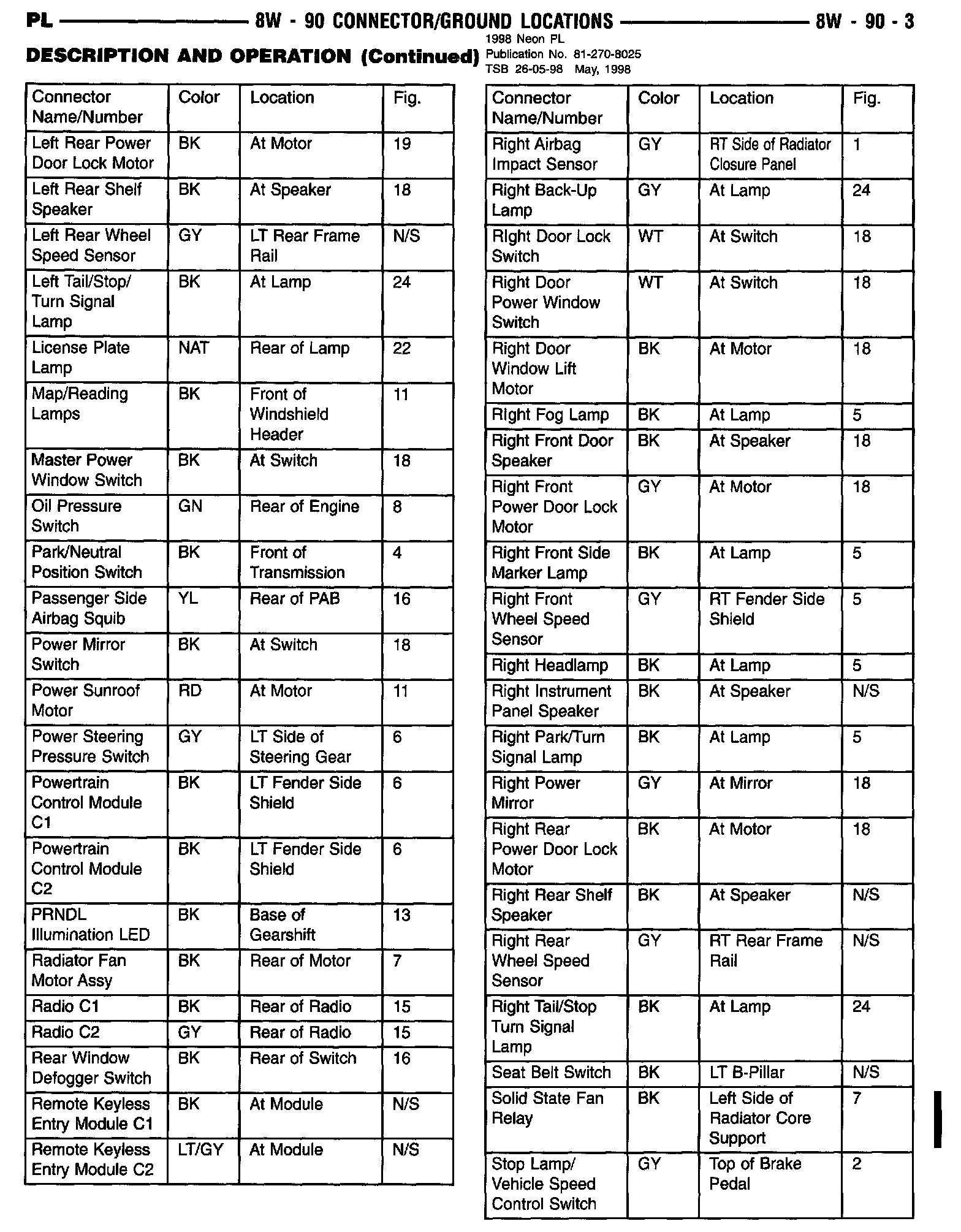

Revision to the connector & ground locations





8W-90-3
