Diagram

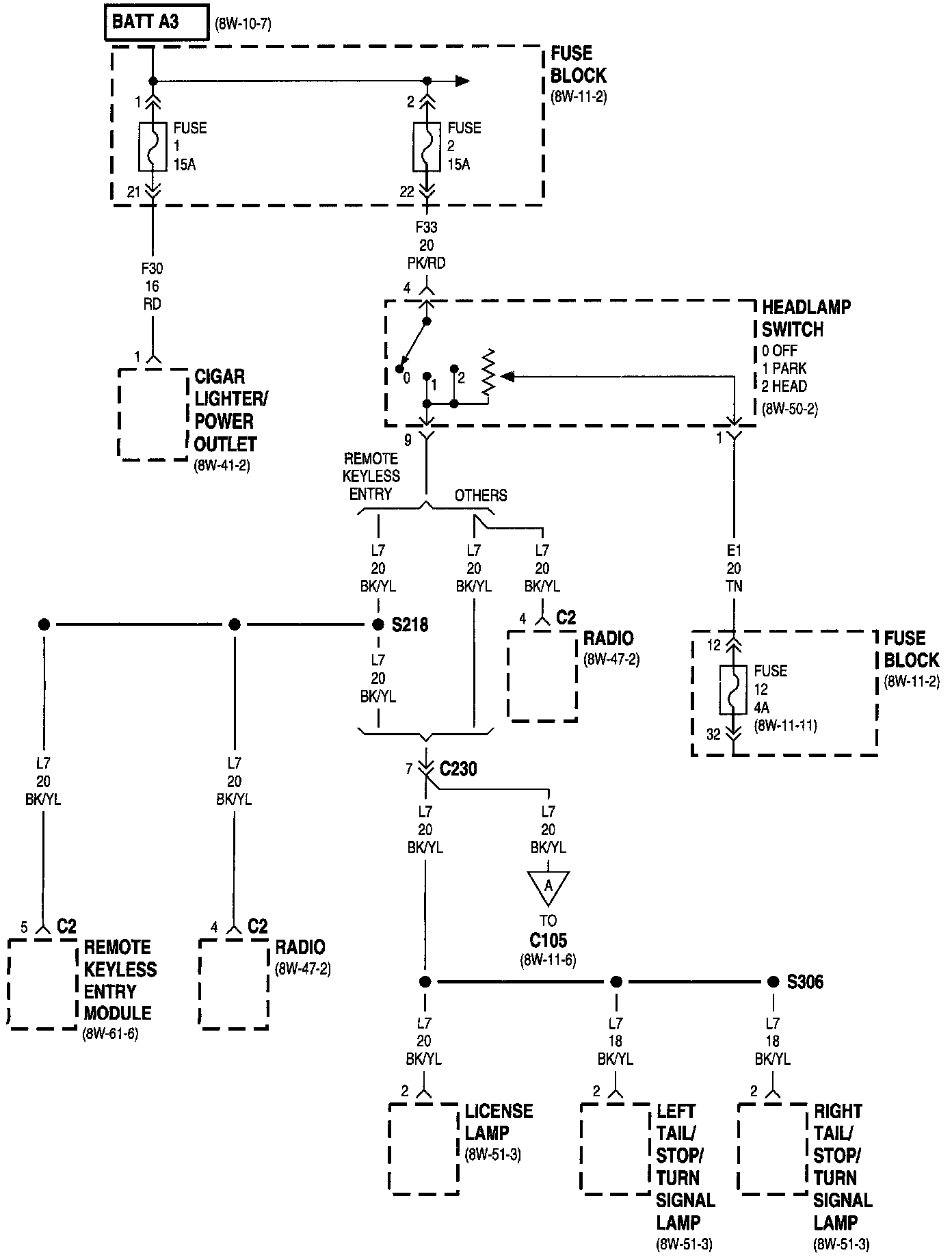

Fuse/Fuse Block (Part 1 Of 11):
Fuse 1 (FB)
Fuse 2 (FB)
Fuse 12 (FB)
Fuse Block
Headlamp Switch
License Lamp
Radio
RKE Module
Right Tail/Stop/Turn Signal Lamp
Fuse/Fuse Block (Part 2 Of 11):
Fog Lamp Switch
Fuse 3 (FB)
Fuse Block
Left Door Lock Switch
RKE Module
Right Door Lock Switch

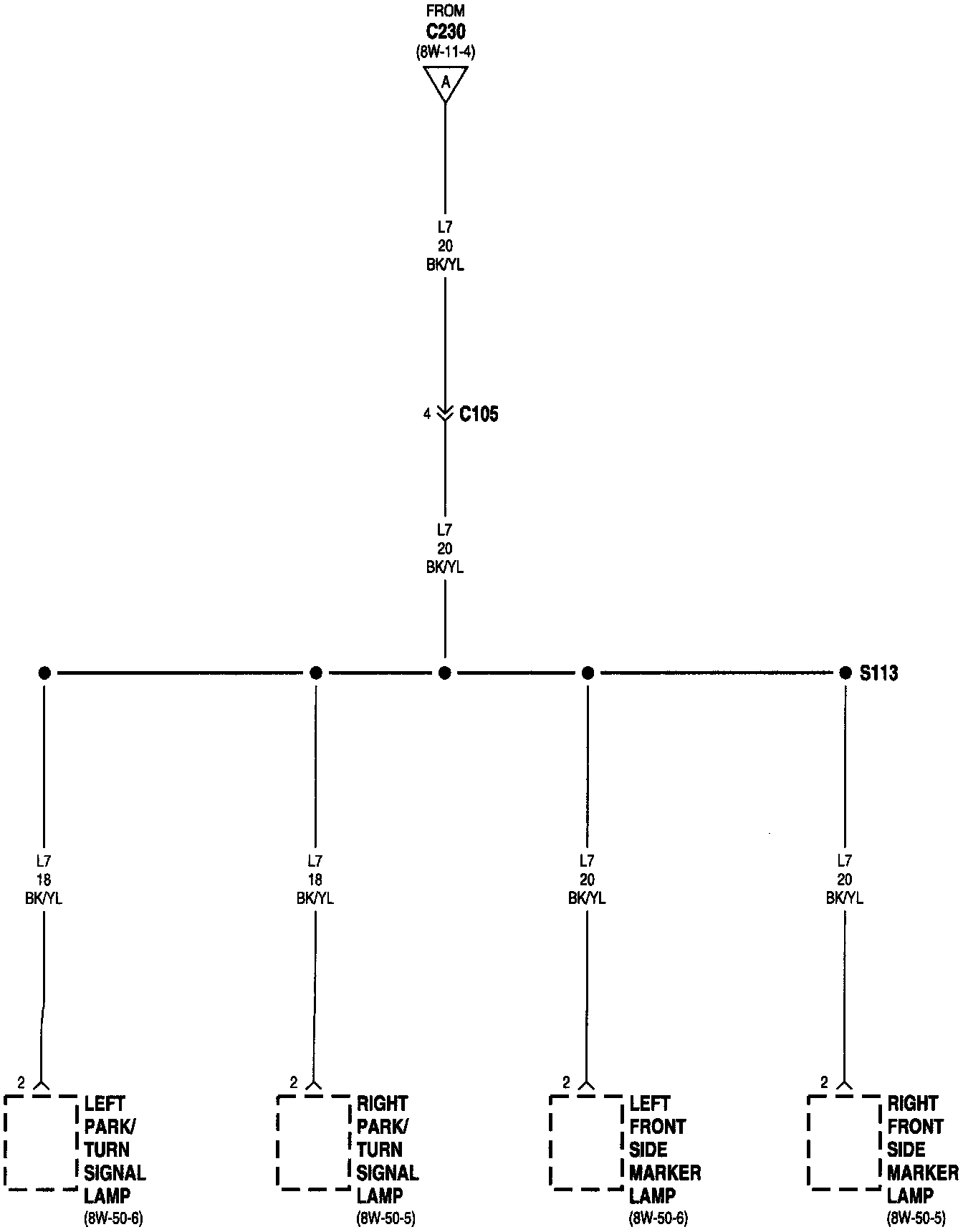

Fuse/Fuse Block (Part 3 Of 11):
Left Front Side Marker Lamp
Left Park/Turn Signal Lamp
Right Front Side Marker Lamp
Right Park/Turn Signal Lamp

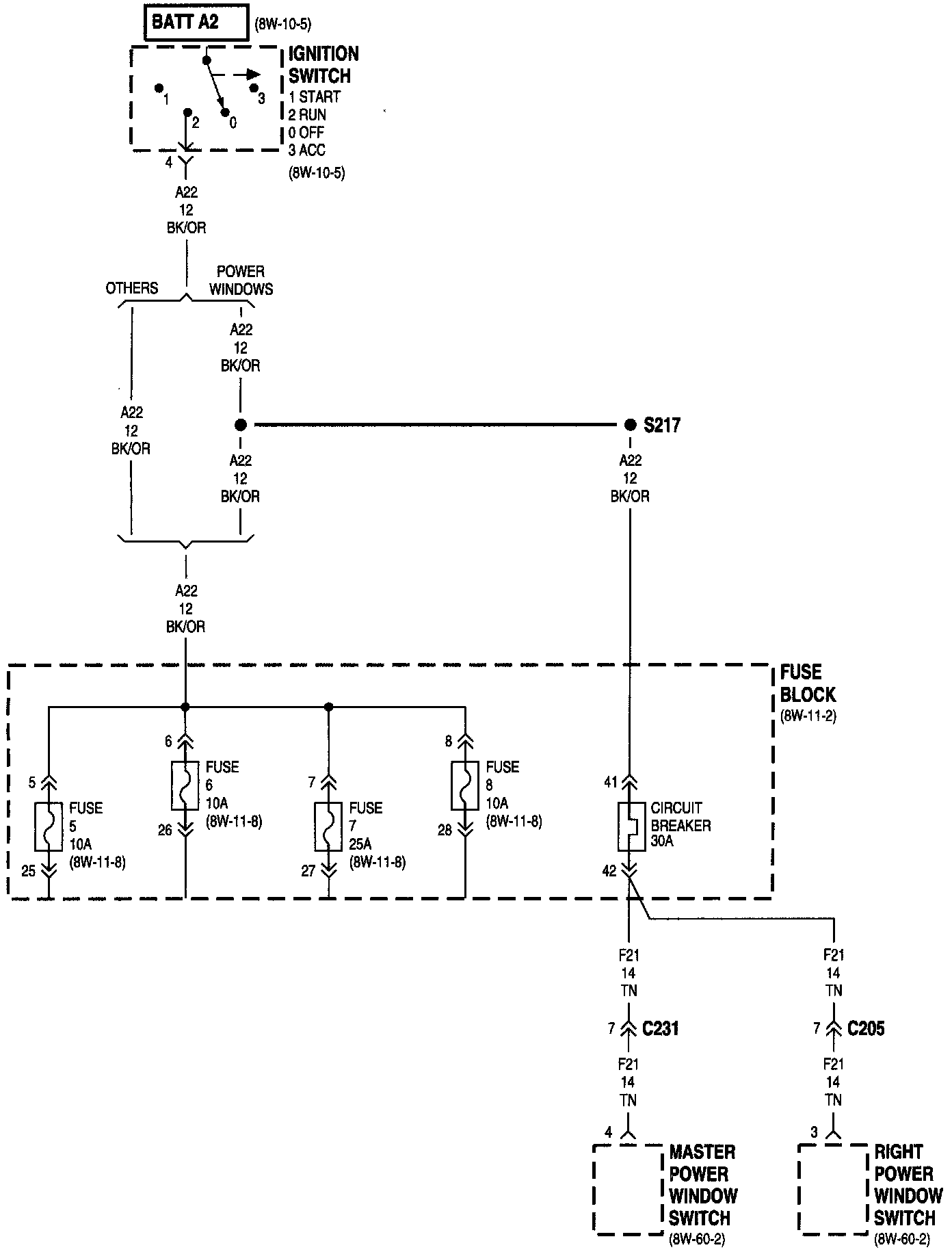

Fuse/Fuse Block (Part 4 Of 11):
Circuit Breaker
Fuse 5 (FB)
Fuse 6 (FB)
Fuse 7 (FB)
Fuse 8 (FB)
Fuse Block
Ignition Switch
Master Power Window Switch
Right Power Window Switch

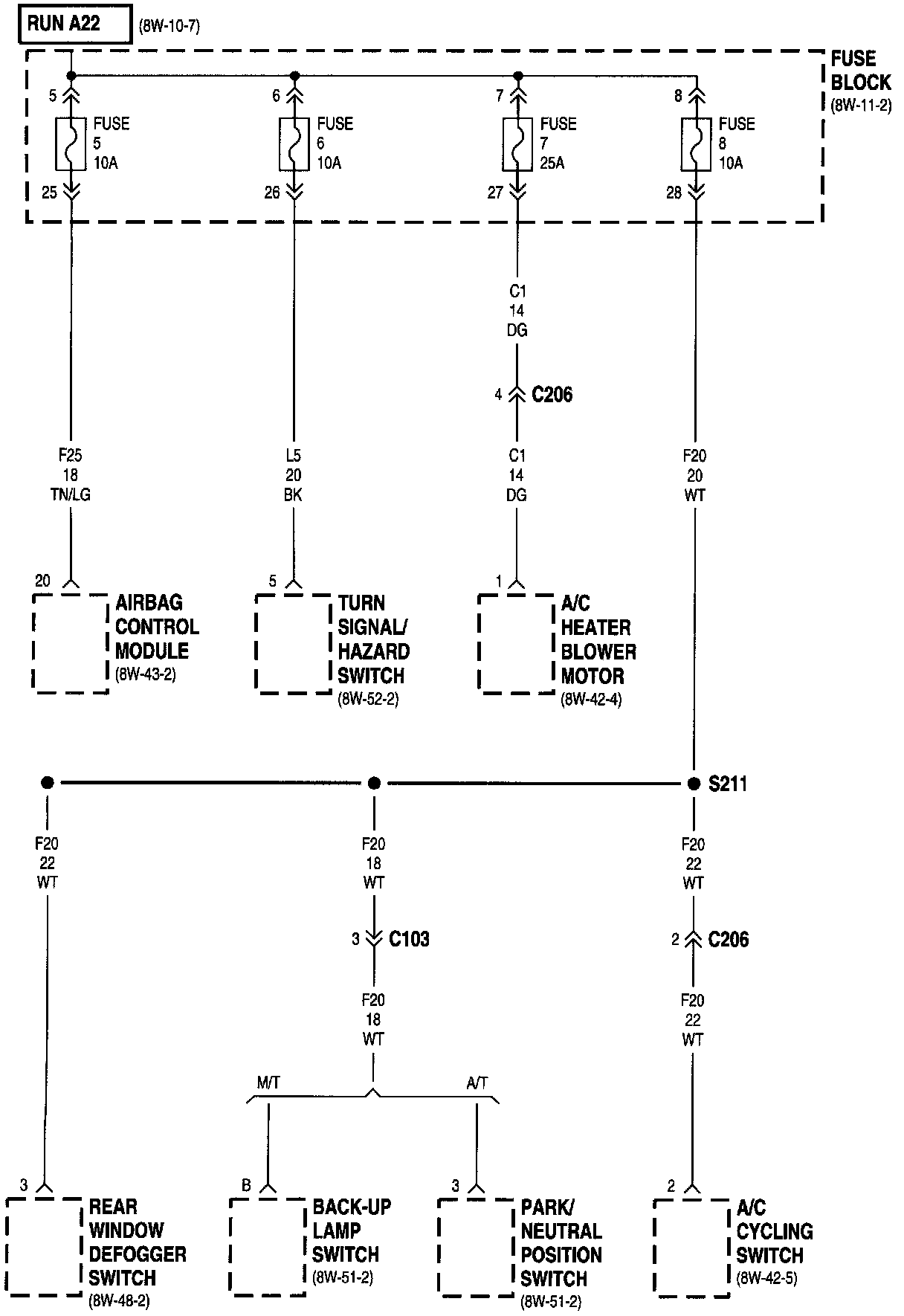

Fuse/Fuse Block (Part 5 Of 11):
A/C Cycling Switch
A/C Heater Blower Motor
Airbag Control Module
Back-Up Lamp Switch
Fuse 5 (FB)
Fuse 6 (FB)
Fuse 7 (FB)
Fuse 8 (FB)
Fuse Block
Park/Neutral Position Switch
Rear Window Defogger Switch
Turn Signal/Hazard Switch

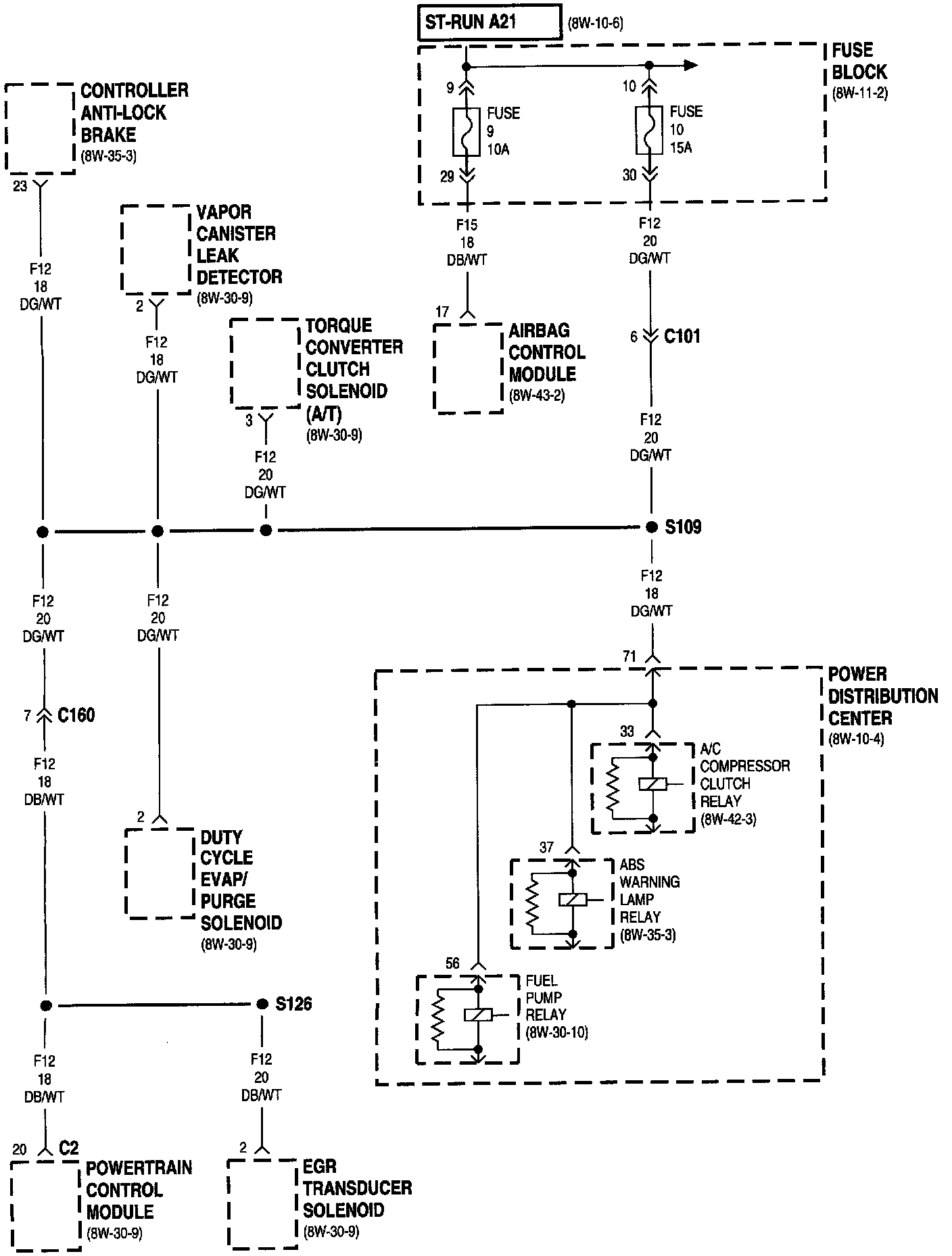

Fuse/Fuse Block (Part 6 Of 11):
A/C Compressor Clutch Relay
ABS Warning Lamp Relay
Airbag Control Module
Controller Anti-Lock Brake
Duty Cycle Evap/Purge Solenoid
EGR Transducer Solenoid
Fuel Pump Relay
Fuse 9 (FB)
Fuse 10 (FB)
Fuse Block
Power Distribution Center
Powertrain Control Module
Vapor Canister Leak Detector
Fuse/Fuse Block (Part 7 Of 11):
Fuse 11 (FB)
Fuse Block
Instrument Cluster
RKE Module

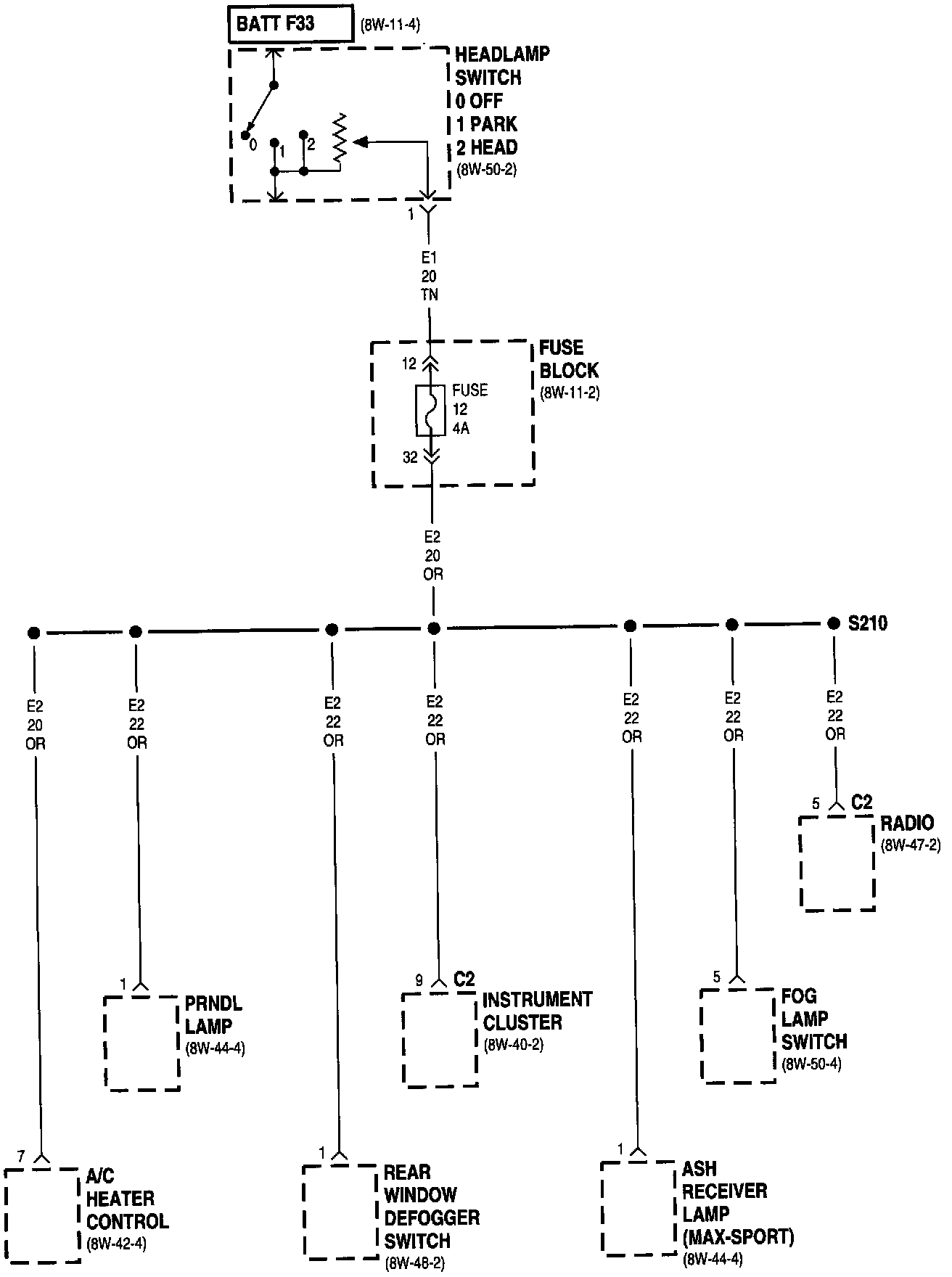

Fuse/Fuse Block (Part 8 Of 11):
Ash Receiver Lamp
Fog Lamp Switch
Fuse 12 (FB)
Fuse Block
Instrument Cluster
PRNDL Lamp
Radio
Rear Window Defogger Switch

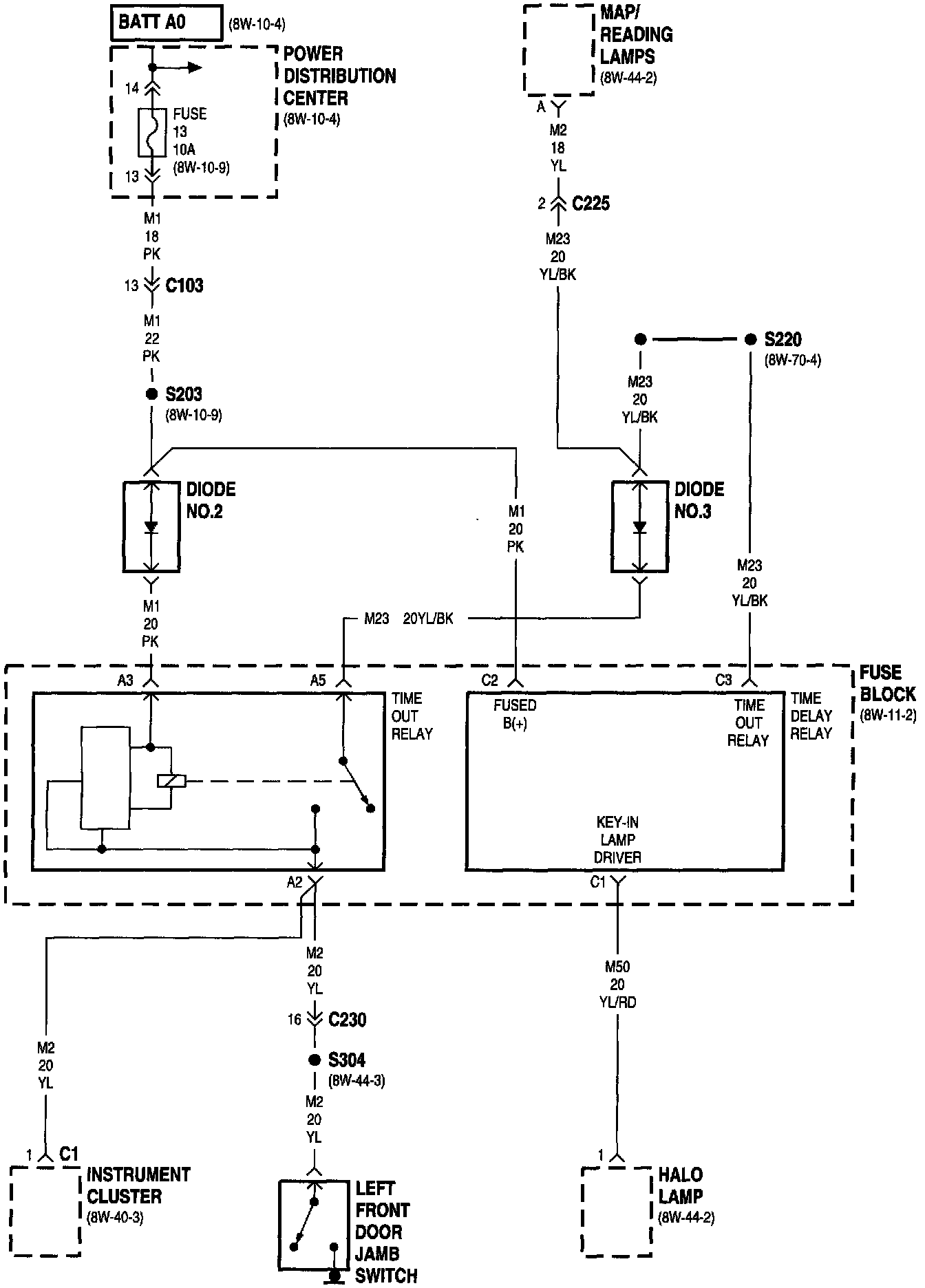

Fuse/Fuse Block (Part 9 Of 11):
Diode No.2
Diode No.3
Fuse 13 (PDC)
Fuse Block
Halo Lamp
Instrument Cluster
Left Front Door Lamb Switch
Map/Reading Lamps
Power Distribution Center
Time Delay Relay
Time Out Relay

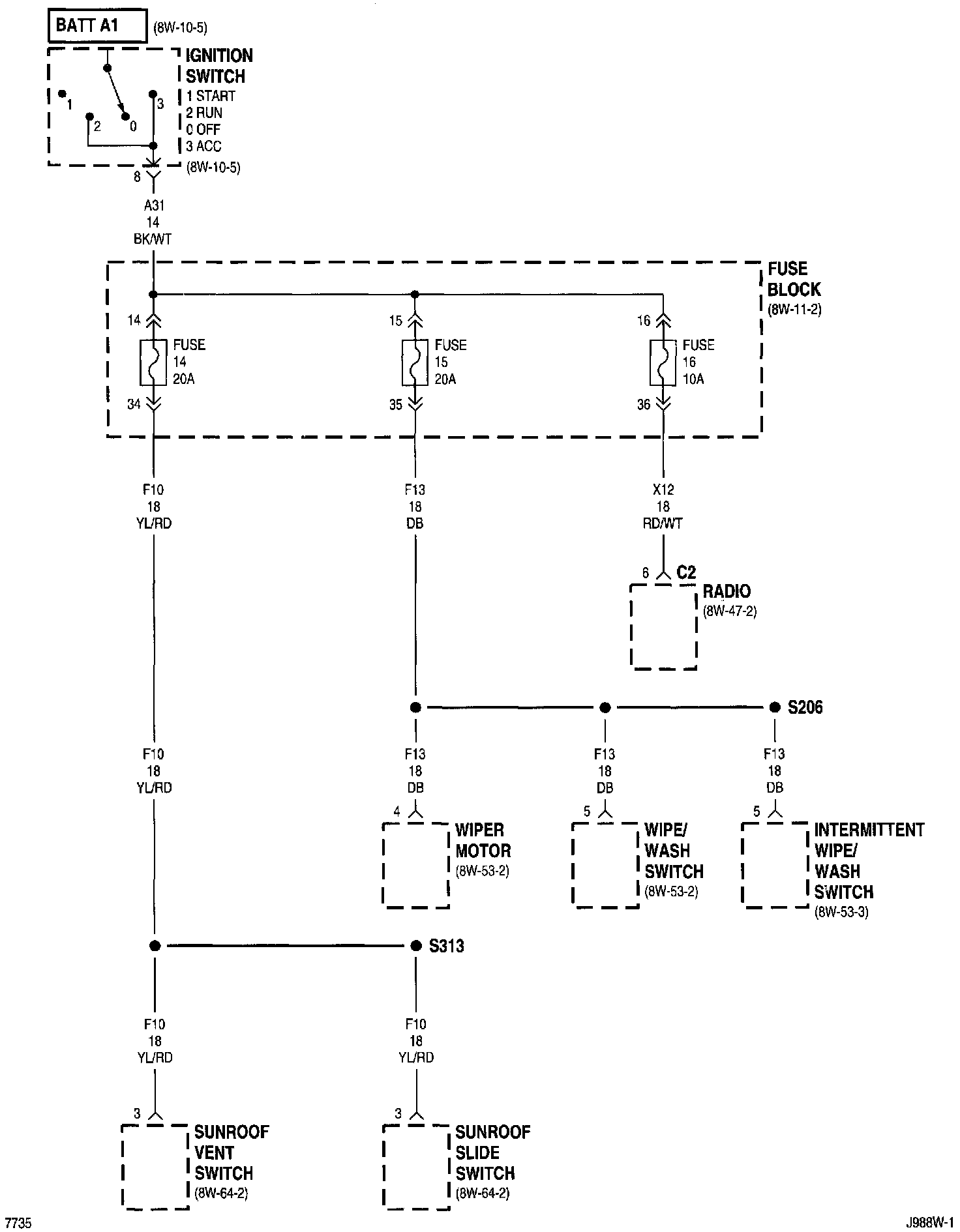

Fuse/Fuse Block (Part 10 Of 11):
Fuse 14 (FB)
Fuse 15 (FB)
Fuse 16 (FB)
Fuse Block
Ignition Switch
Intermittent Wipe/Wash Switch
Radio
Sunroof Slide Switch
Sunroof Vent Switch
Wipe/Wash Switch
Wiper Motor

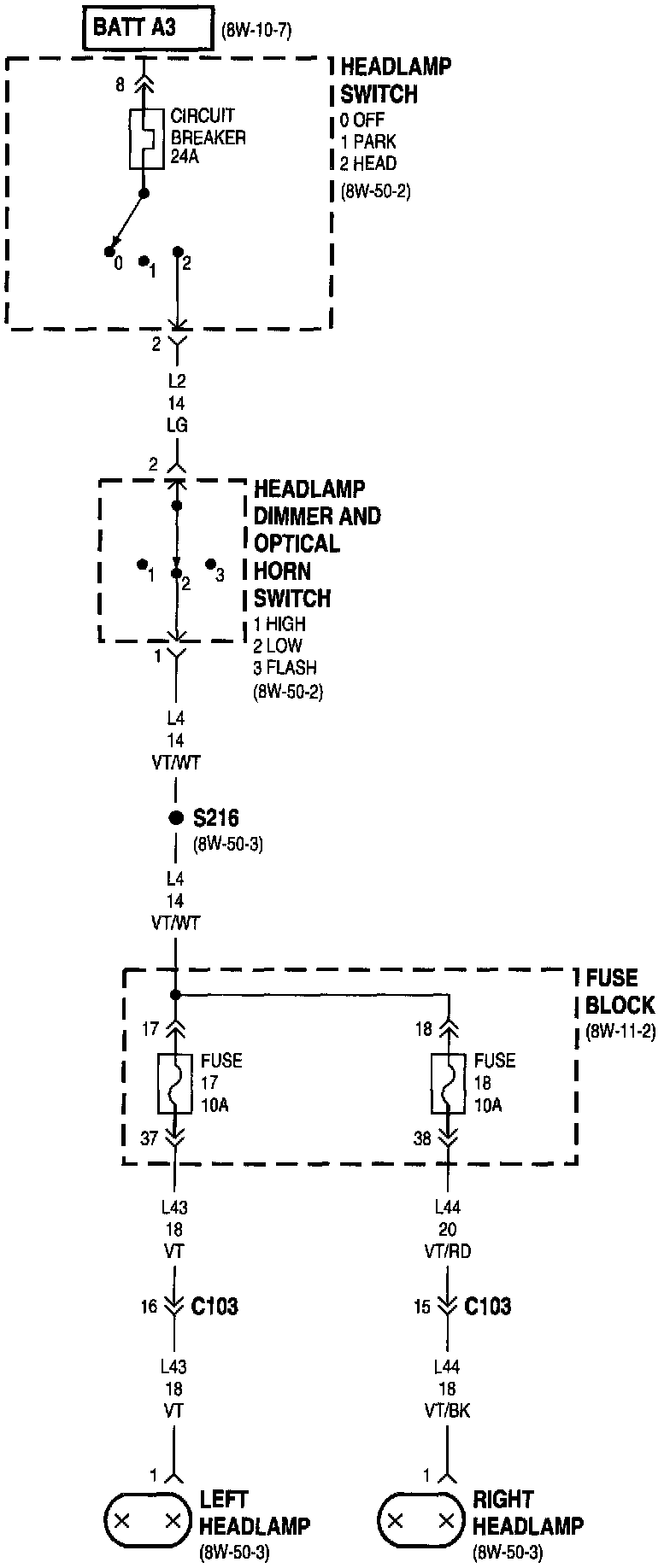

Fuse/Fuse Block (Part 11 Of 11):
Circuit Breaker
Fuse 18 (FB)
Fuse Block
Headlamp Dimmer And Optical Horn Switch
Headlamp Switch
Left Headlamp
Left Tail/Stop/Turn Signal Lamp
Radio
Right Headlamp
NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
