Home >> Dodge >> 1998 >> Neon L4-2.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Charging System >> Testing and Inspection >> Component Tests and General Diagnostics >> Non-Trouble Code Procedures >> Charging System Tests

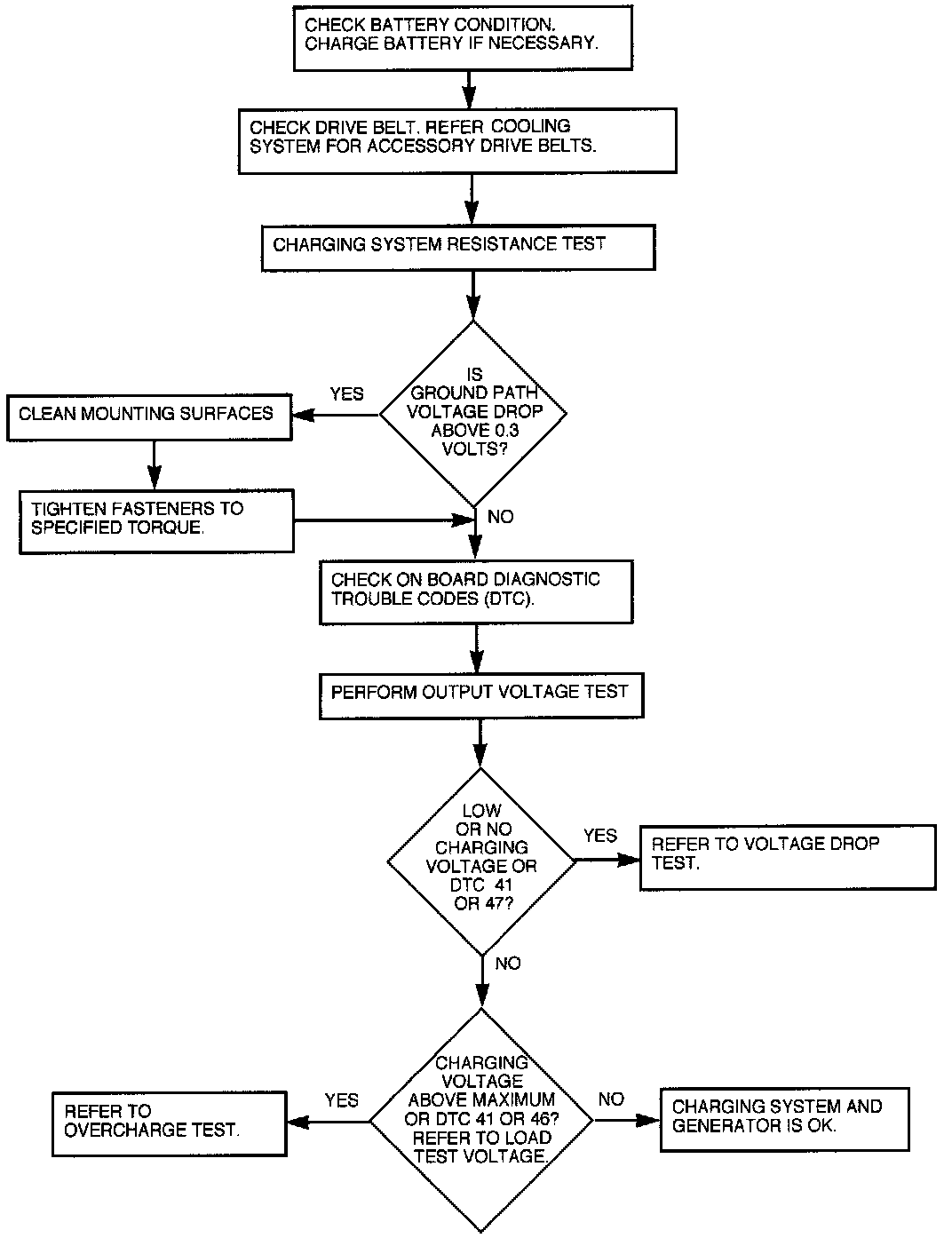

Charging System Tests

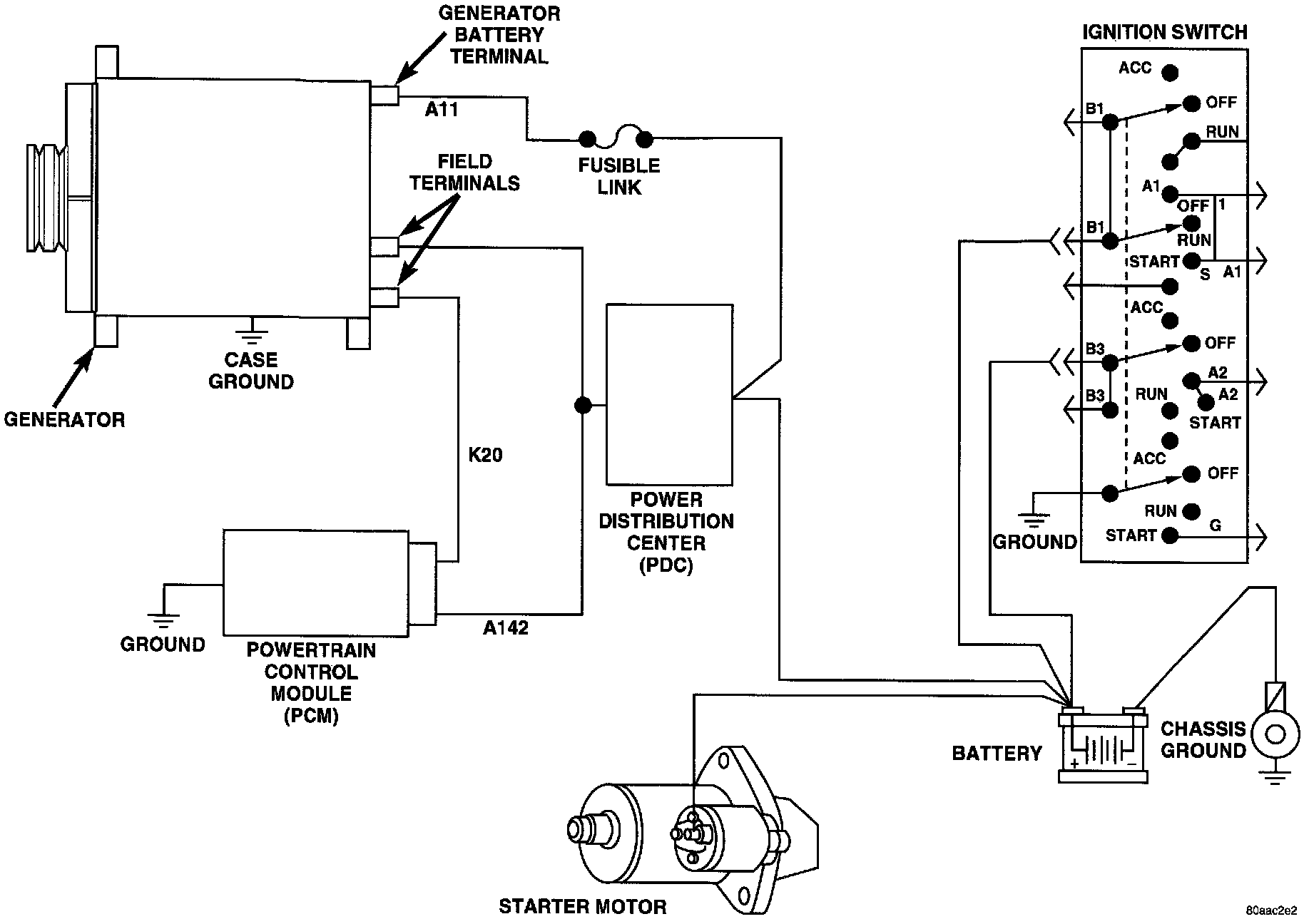

Charging System Schematic - Typical:



Charging System Resistance Tests:

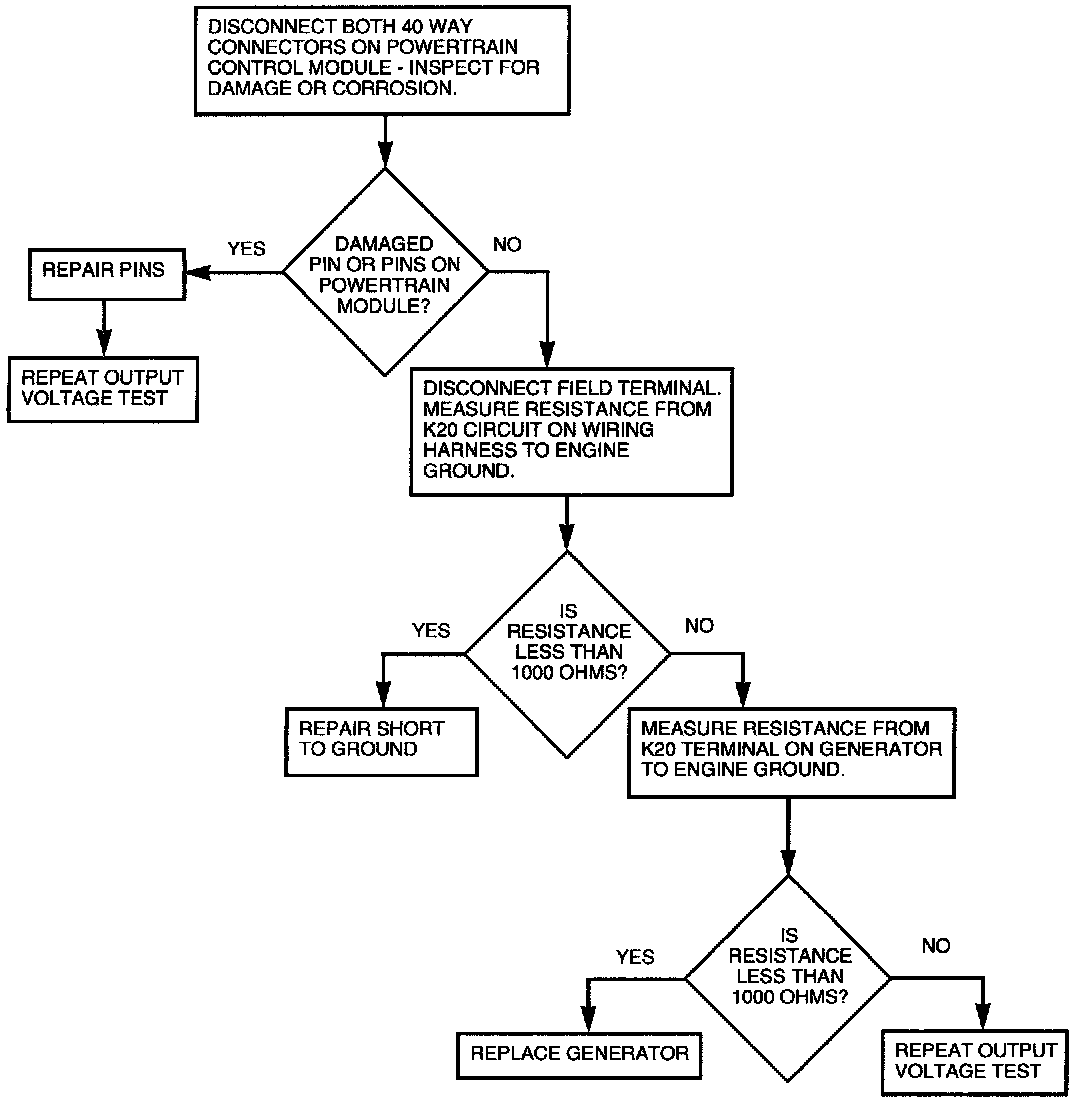

Overcharge Test:

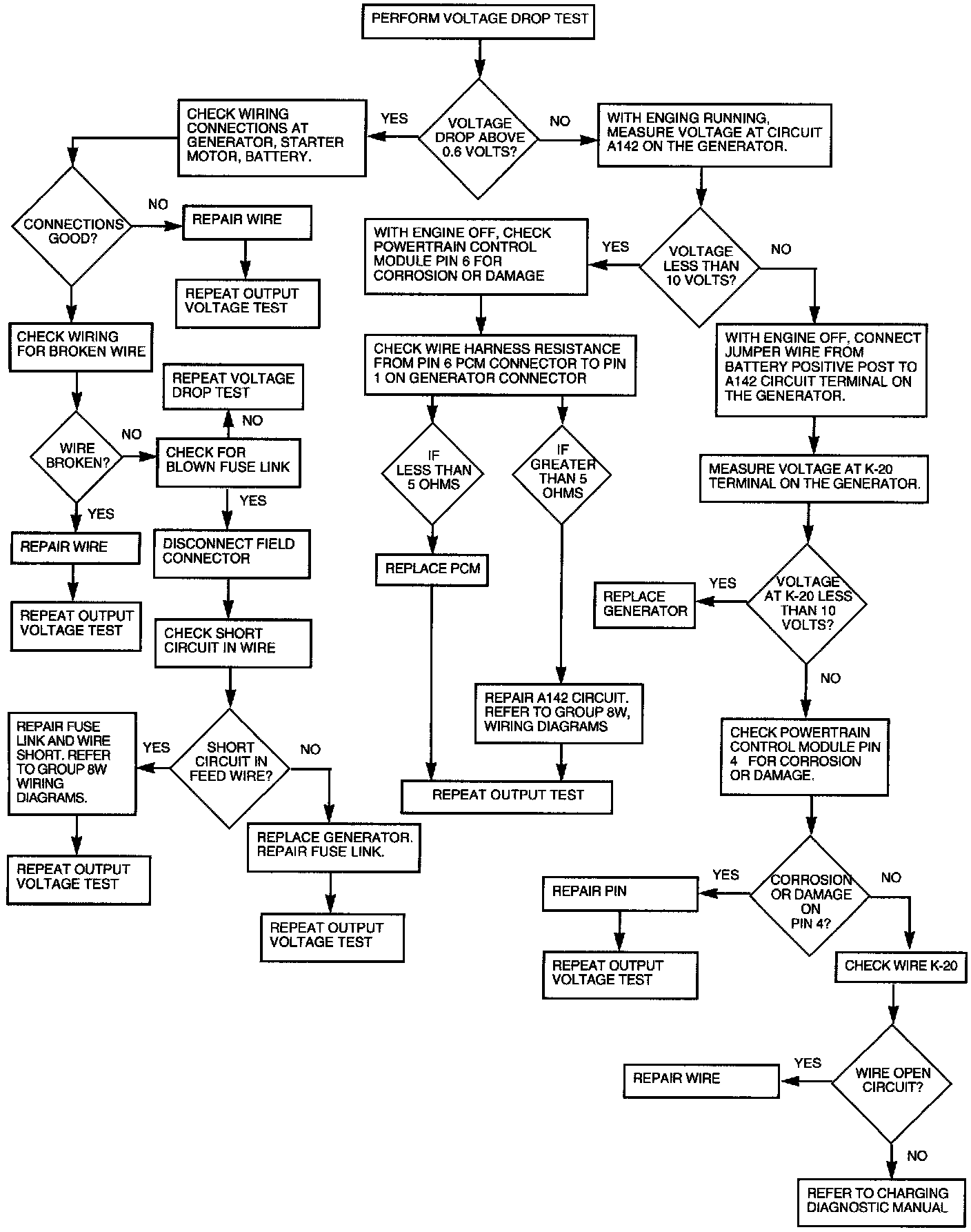

Voltage Drop Test:
