High Pressure Sensor / Switch: Description and Operation

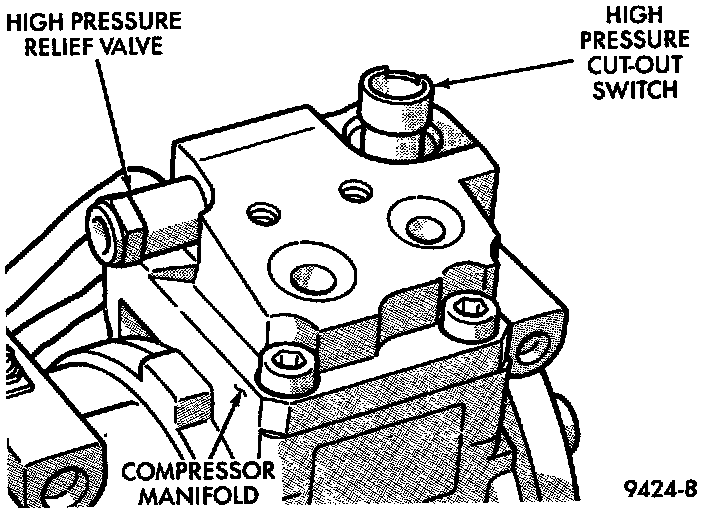

SYSTEM OPERATIONHigh Pressure Cut Out Switch Location:
The high pressure cut out switch is located in the compressor manifold. It turns off the compressor if the system pressure exceeds 3240 kPa (470 psi)
