NOTE: Proper installation of the Wheel Speed Sensor Cables is critical to continued system operation. Be sure that cables are installed, routed and clipped properly. Failure to install speed sensor cables as shown, may result in contact with moving parts or over extension of cables, resulting in an open circuit.REMOVE
1. Raise vehicle on jack stands or centered on a frame contact type hoist.
2. Remove the tire and wheel assembly from the vehicle.

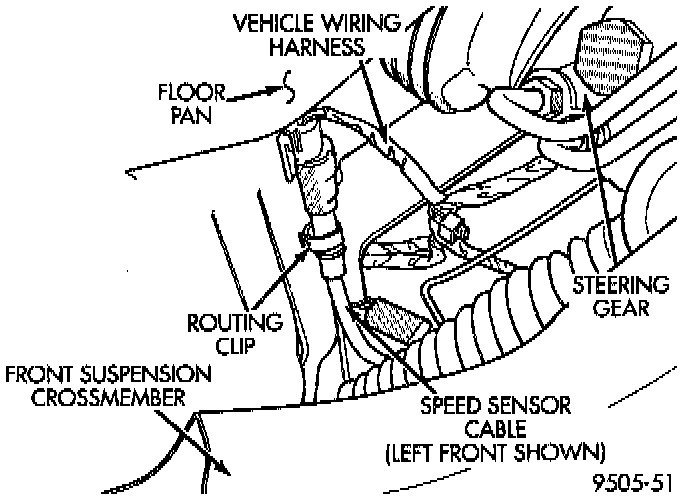

Speed Sensor Cable To Wiring Harness Connection:
3. Unplug speed sensor cable connector from vehicle wiring harness. Remove clip attaching speed sensor cable connector to vehicle body.

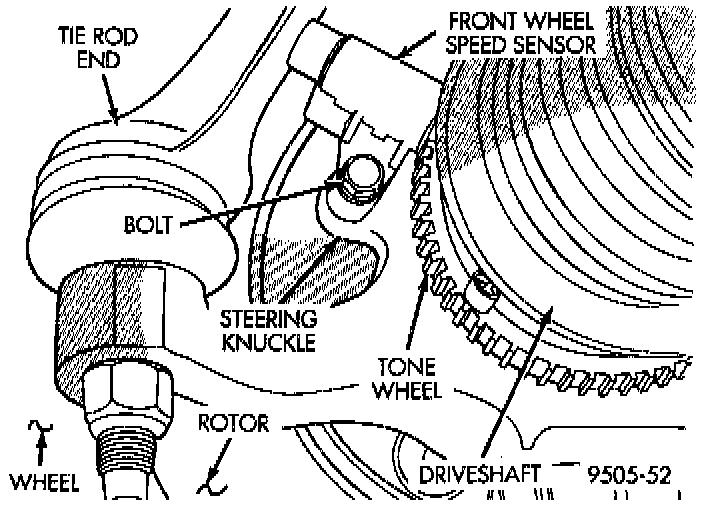

Front Wheel Speed Sensor Attaching Bolt:
4. Remove wheel speed sensor head to steering knuckle attaching bolt.
5. Carefully, remove sensor head from steering knuckle. If the sensor has seized, due to corrosion, DO NOT USE PLIERS ON SENSOR HEAD. Use a hammer and a punch and tap edge of sensor ear, rocking the sensor side to side until free.

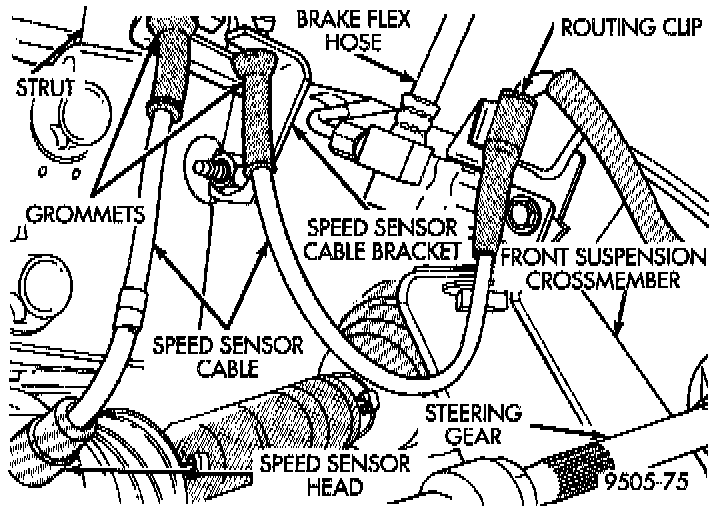

Front Wheel Speed Sensor Cable Routing:
6. Remove the speed sensor cable assembly grommets from the retaining bracket. Remove speed sensor cable routing clip from the frame of the vehicle.
INSTALL
1. Connect the wheel speed sensor cable connector to the vehicle wiring harness.
2. Install the speed sensor cable assembly grommets into the retaining bracket. Install speed sensor cable routing clip onto the frame of the vehicle.
3. Install wheel speed sensor to steering knuckle attaching screw. Torque the attaching screw to 7 Nm (60 inch lbs.).
4. Install the wheel and tire assembly on vehicle.
5. Road test vehicle to ensure proper operation of the base and ABS systems.
