Fuel Filler Hose: Service and Repair

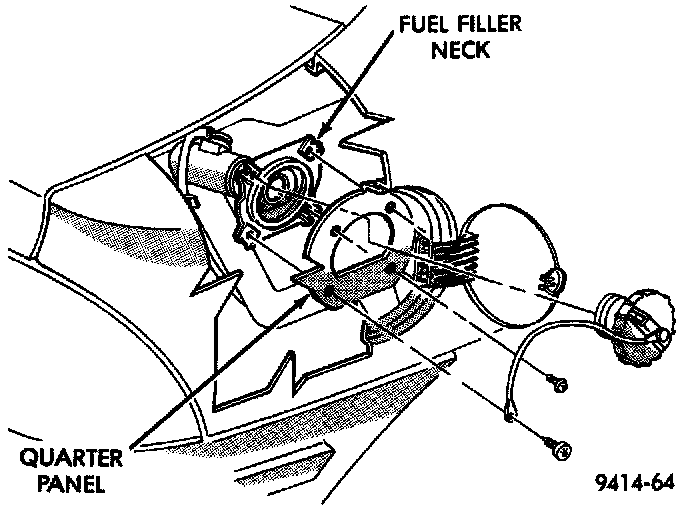

Fig. 33 Fuel Filler Neck:

REMOVAL
1. Loosen fuel filler tube cap.
2. Remove fuel filler neck screws (Fig. 33).
3. Disconnect fuel fill vapor tube.
4. Disconnect fuel filler tube from fuel tank. Remove filler neck.


INSTALLATION
1. Reverse for installation.
