Fuel Line Coupler: Description and Operation

Fig 6 Plastic Quick-connect Fittings:

Different types of quick-connect fittings are used to attach various fuel system components. These are: a single-tab type, a two-tab type or a plastic retainer ring type. Some are equipped with safety latch clips.

CAUTION: The interior components (O-rings, spacers) of quick connect fittings are not serviced separately. Do not attempt to repair damaged fittings or fuel lines/tubes. If repair is necessary, replace the complete fuel tube assembly.

Fuel tubes connect fuel system components with plastic quick-connect fuel fittings. The fitting contains non-serviceable O-ring seals.

CAUTION: Quick-connect fittings are not serviced separately. Do not attempt to repair damaged quick-connect fittings or fuel tubes. Replace the complete fuel tube/quick-connect fitting assembly.

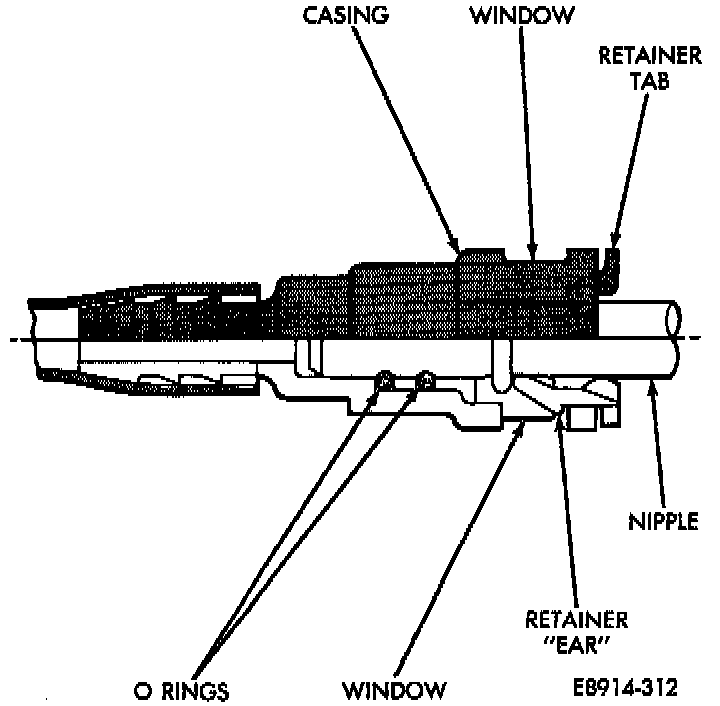

The quick-connect fitting consists of the O-rings, retainer and casing. When the fuel tube enters the fitting, the retainer locks the shoulder of the nipple in place and the O-rings seal the tube.
