Canister Purge Solenoid: Service and Repair

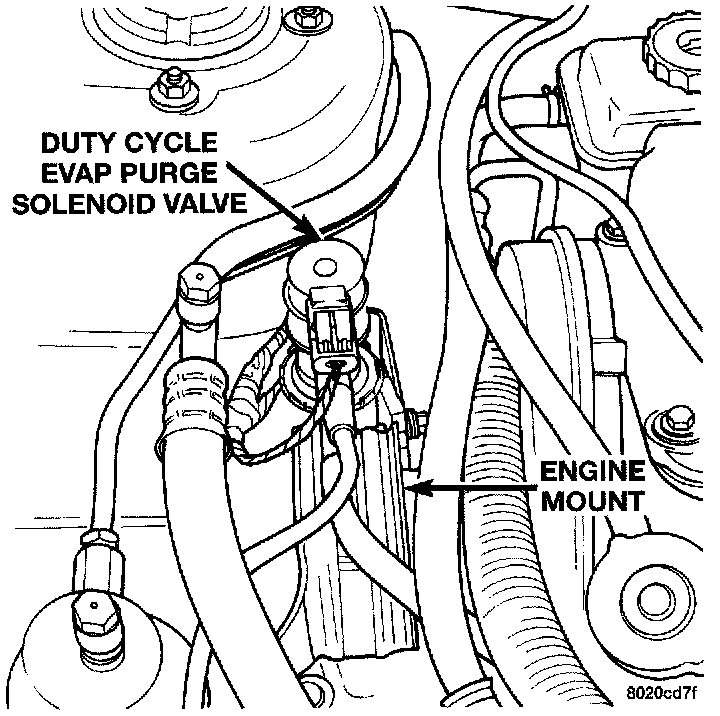

Fig. 101 Upstream Heated Oxygen Sensor Removal/Installation & EVAP Purge Solenoid Location:

NOTE: The solenoid attaches to a bracket near the front engine mount. The solenoid will not operate unless it is installed correctly

REMOVAL
1. Disconnect electrical connector from solenoid.
2. Disconnect vacuum tubes from solenoid.
3. Remove solenoid from bracket.

NOTE: The top of the solenoid has TOP printed on it. The solenoid will not operate unless it is installed correctly.

INSTALLATION
1. Install solenoid on bracket.
2. Connect vacuum tube to solenoid.
3. Connect electrical connector to solenoid.
