Canister Purge Solenoid: Locations

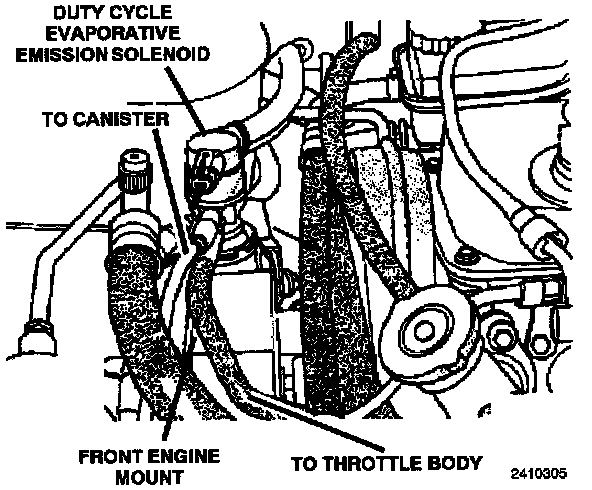

Duty Cycle Evoporative Emission Solenoid, Front Engine:



Fig. 101 Upstream Heated Oxygen Sensor Removal/Installation & EVAP Purge Solenoid Location:

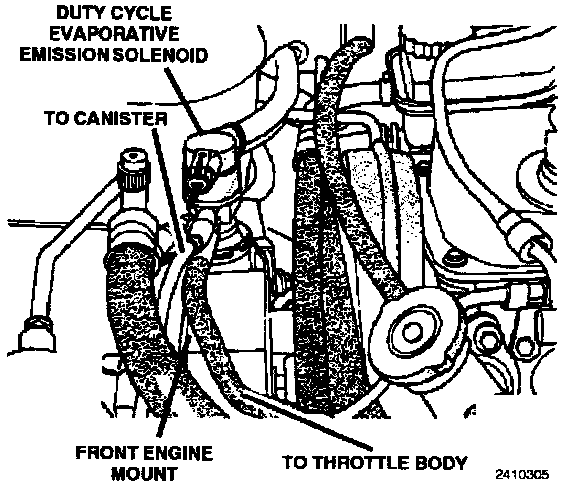

EVAP Purge Solenoid:
