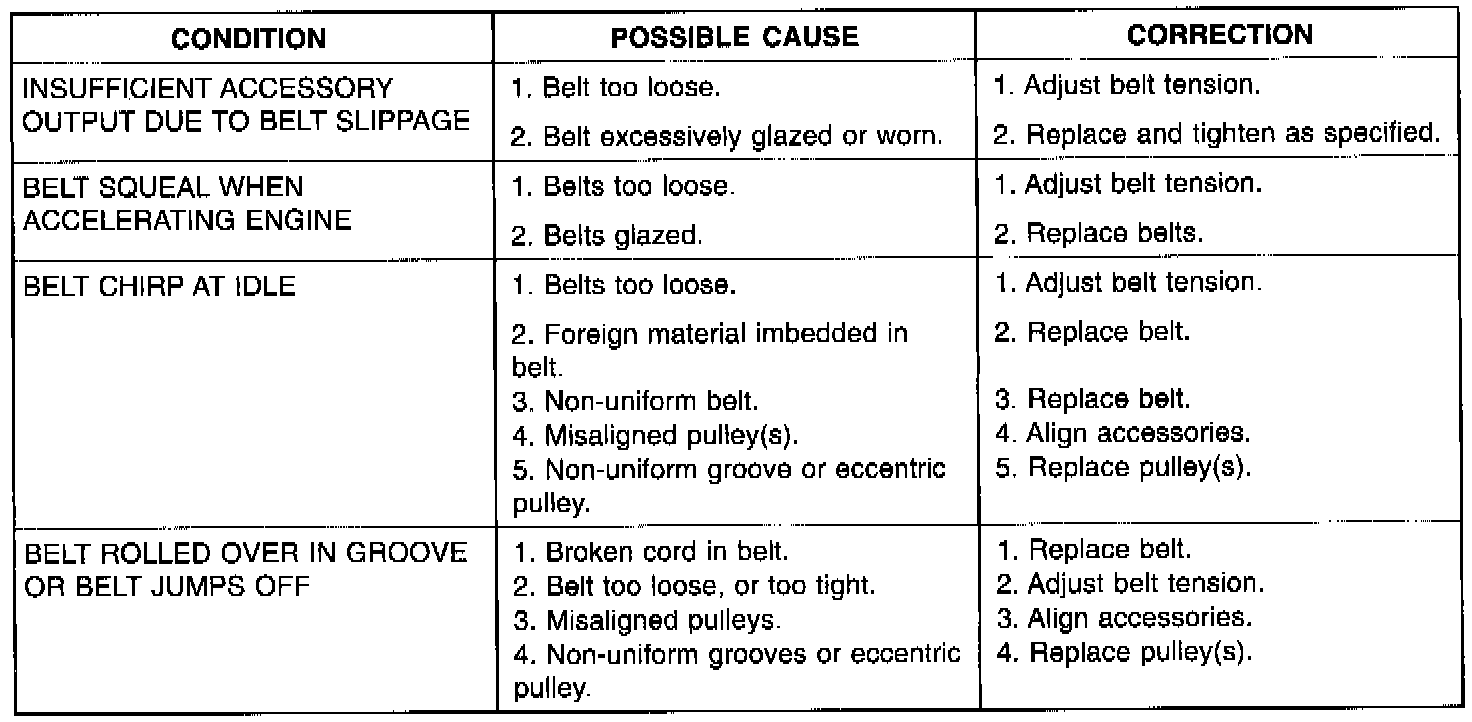

Drive Belt: Testing and Inspection

Belt replacement under any or all of the following conditions is required, excessive wear, frayed cords or severe glazing.

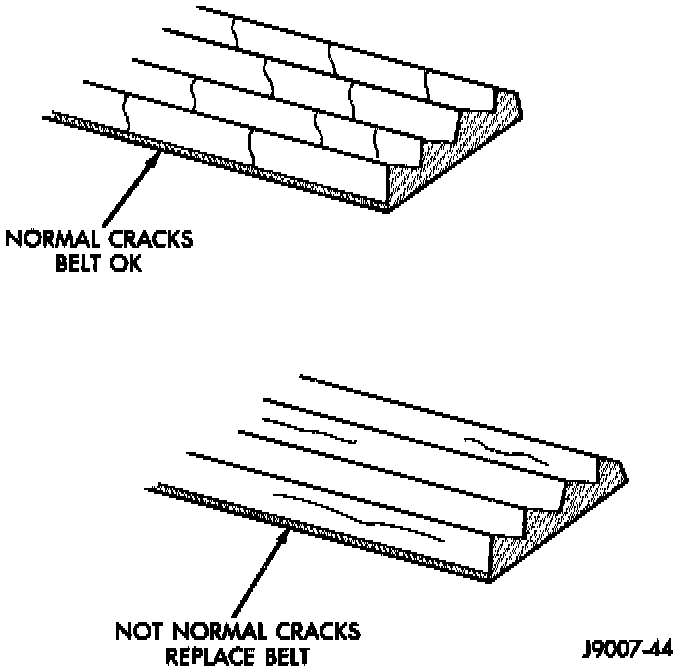

Drive Belt Wear Pattern:

Poly-V-Belt system may develop minor cracks across the ribbed side. These minor cracks are considered normal and acceptable. Cracks parallel are not.

NOTE: Do not use any type of belt dressing or restorer on Poly-V-Belts.
