Alternator Belt

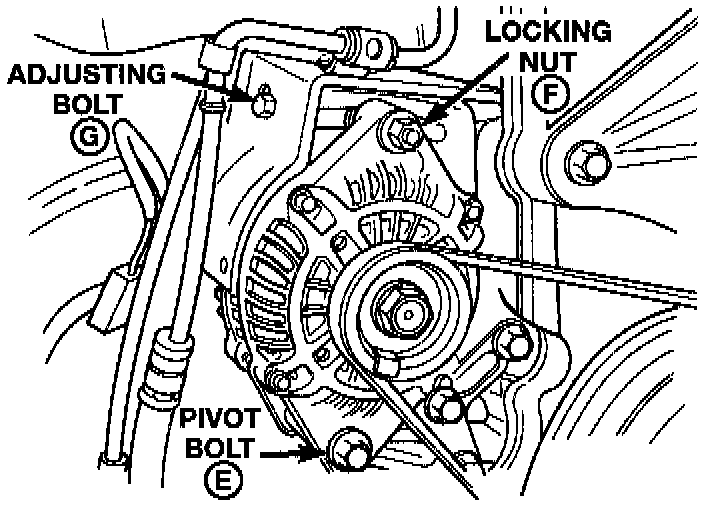

Generator Adjustment:

1. Loosen pivot bolt E then locking nut F and adjusting bolt G to remove and install belt and/or adjust belt tension.
2. Tighten adjusting bolt G. adjust belt tension to specification shown in Belt Tension Chart.
3. Tighten pivot bolt E to 54 Nm (40 ft. lbs.). Locking nut F to 54 Nm (40 ft. lbs.).
