Tail, Stop and Turn Signal Lamp

REMOVAL
1. Release trunk latch and open trunk lid
2. Remove trunk trim panel from tail lamp area, if equipped.
3. Remove sockets and bulbs from lamp.

Tail, Stop And Turn Signal Lamp:

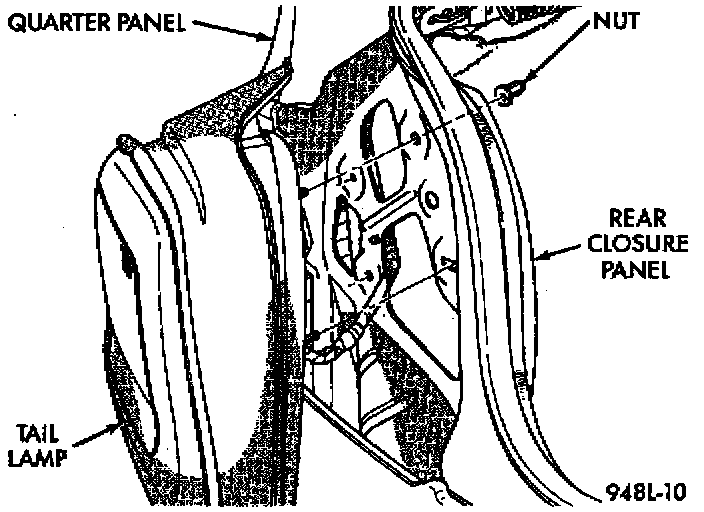

4. Remove nuts holding tail lamp to rear closure panel.
5. Separate tail lamp from vehicle.

INSTALLATION
- Reverse the preceding operation.
