Replacement

REMOVAL

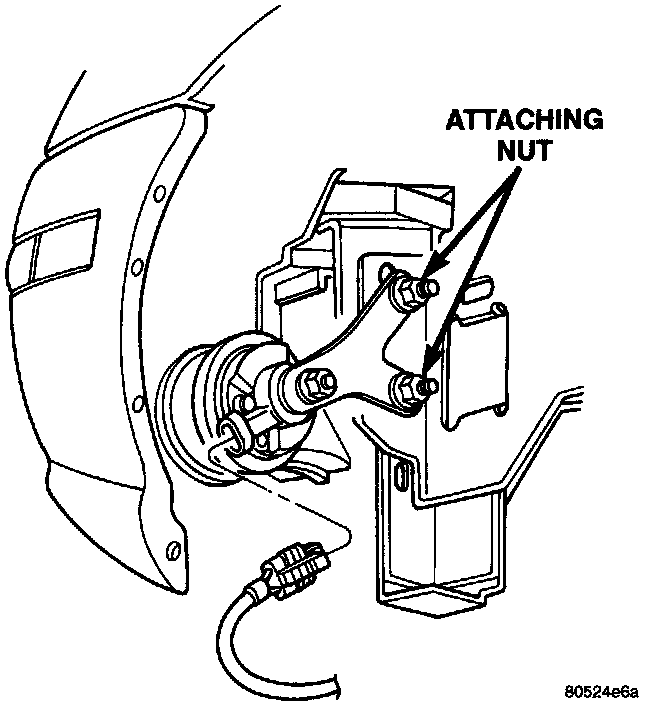

Horn Location:




- Disconnect connector and remove horn attaching nuts from the bumper support bracket.

INSTALLATION
- For installation, reverse the above procedures. Insure that the horn projector does not touch bumper reinforcement or the sound output may be altered.
