Fog/Driving Lamp: Service and Repair

REMOVAL

Fog Lamp:

1. Remove bolt holding fog lamp to radiator closure panel.
2. Separate fog lamp from radiator closure panel.
3. Pull fog lamp through opening in fascia.

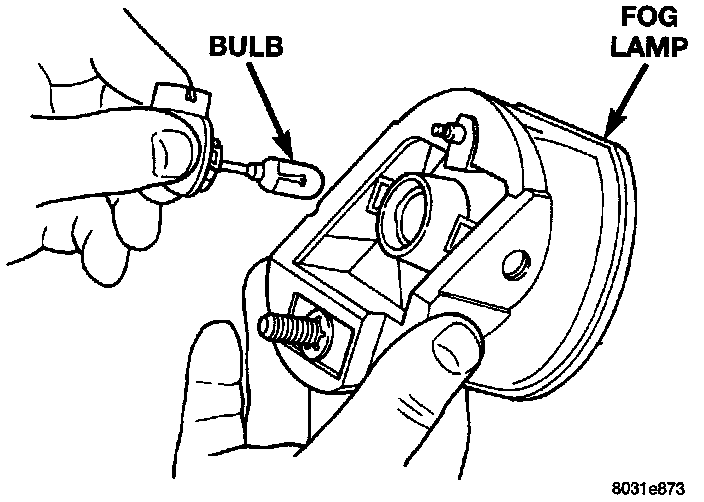

4. Disengage wire connector from fog lamp bulb base.
5. Separate fog lamp from vehicle.

INSTALLATION
- Reverse the preceding operation.
