Fog/Driving Lamp: Adjustments

Headlamp Alignment Preparation
1. Verify headlamp dimmer switch and high beam indicator operation.
2. Inspect and correct damaged or defective components that could interfere with proper headlamp alignment.
3. Verify proper tire inflation.
4. Clean headlamp lenses.
5. Verify that luggage area is not heavily loaded.
6. Fuel tank should be FULL. Add 2.94 kg (6.5 lbs.) of weight over the fuel tank for each estimated gallon of missing fuel.

Lamp Alignment Screen:

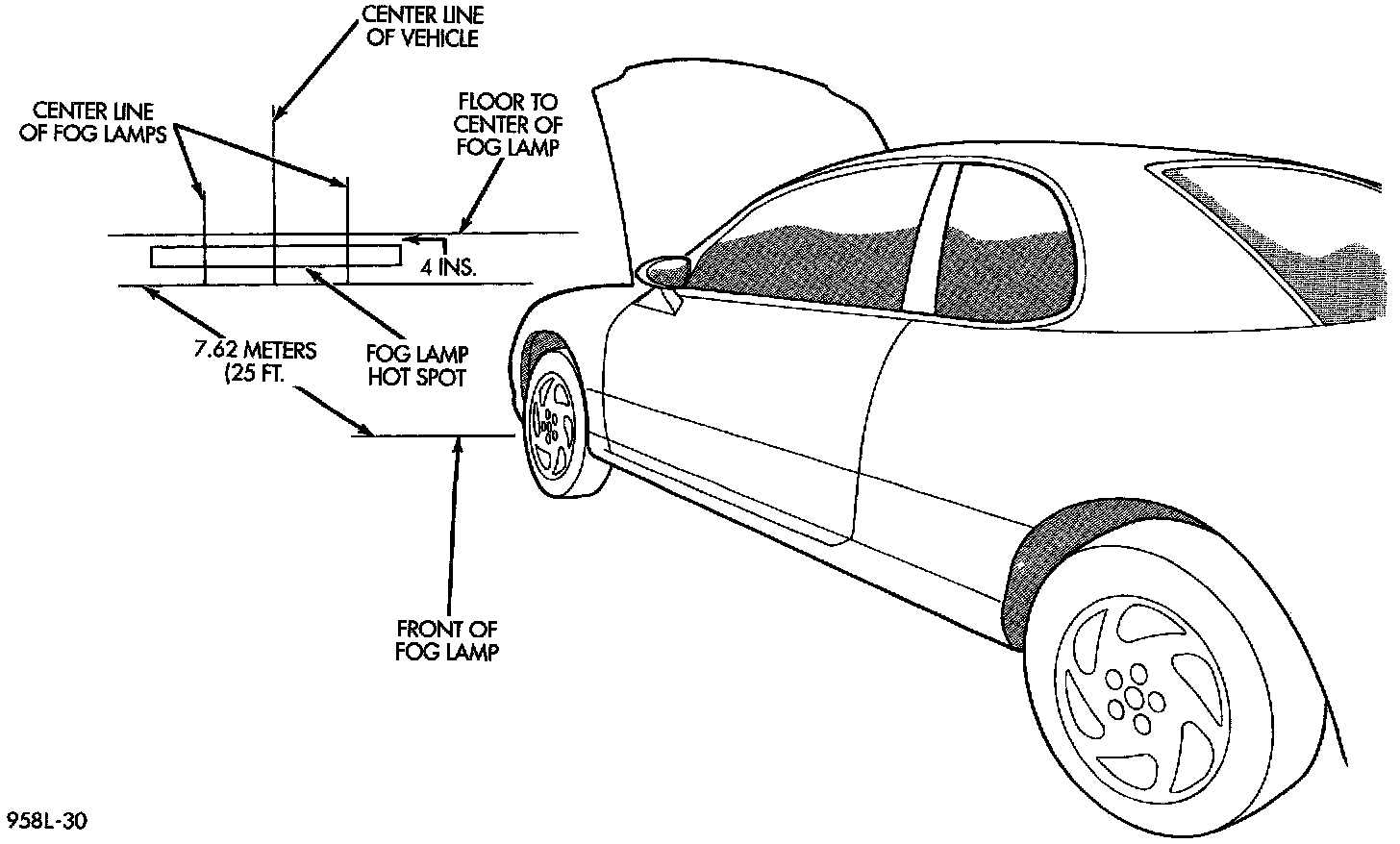

Prepare an alignment screen. Refer to Alignment Screen Preparation paragraph. Disengage the wire connectors from the back of the headlamp bulbs to disable the headlamps. This will allow a more accurate projection reading of the fog lamps. Turn on the headlamp switch and actuate the fog lamp switch. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp centerline and straight ahead.
