Center Mounted Brake Lamp: Service and Repair

REMOVAL
1. Release trunk latch and open trunk lid.
2. Remove socket and bulb from lamp.

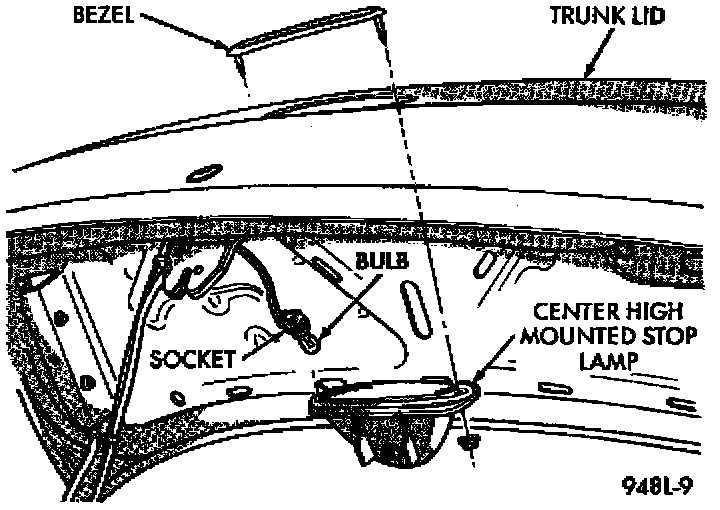

Center High Mounted Stop Lamp:

3. Remove nuts holding center high mounted stop lamp to trunk lid.
4. Pull CHMSL from trunk lid.
5. Separate CHMSL bezel from trunk lid

INSTALLATION
- Reverse the preceding operation.
