Instrument Cluster Lamp Replacement

REMOVAL AND INSTALLATION

Instrument Cluster Illumination Lamps:

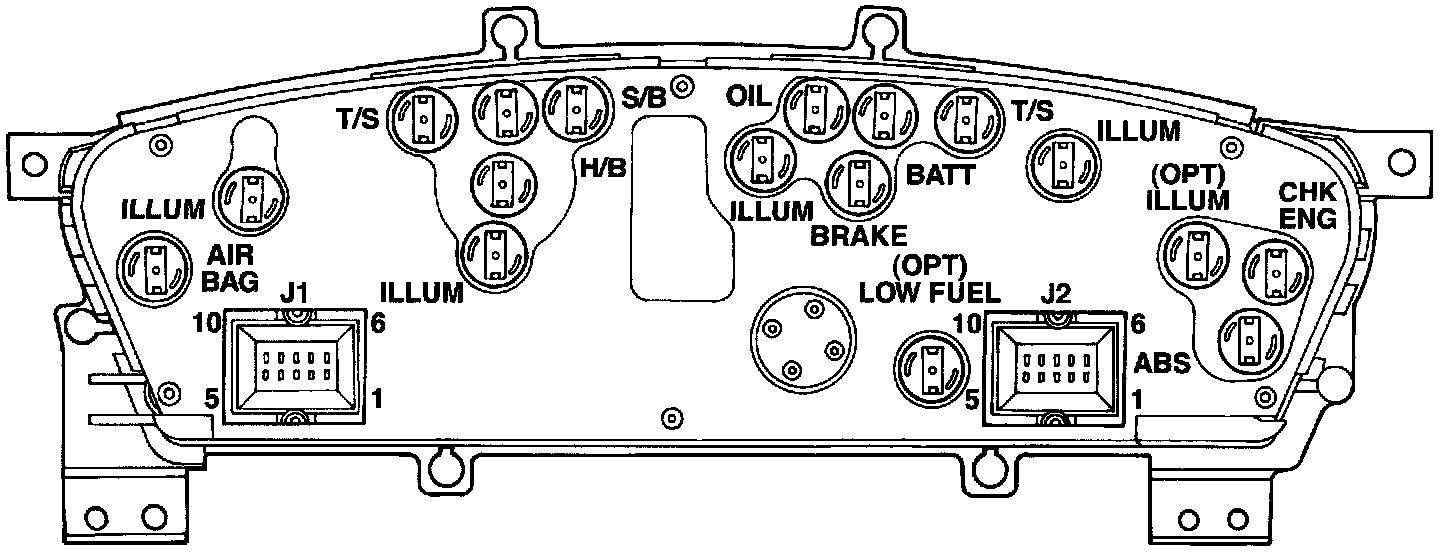

The Instrument Cluster illumination Lamps location are shown. The cluster is viewed from the rear. To replace lamp(s), the cluster must be removed. Refer to Instrument Panel Gauges and Warning Indicators/Instrument Panel/Cluster Replacement.
