Evaporator Drain Tube: Service and Repair

REMOVAL
1. Raise vehicle.

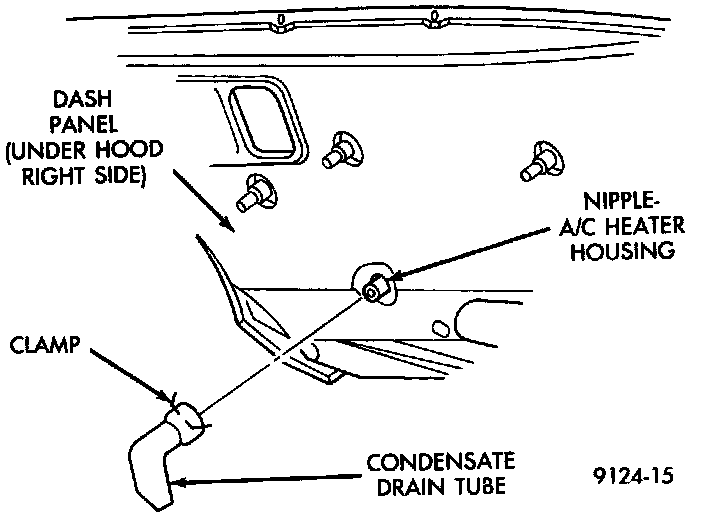

Condensate Water Drain Tube - Typical:

2. Locate rubber drain tube on right side of dash panel.
3. Squeeze clamp and remove drain tube.

INSTALLATION
- To install, reverse the preceding operation. Check the drain tube nipple on the heater-A/C housing for any obstructions.
