With Air Conditioning

The blower motor is located on the bottom right side of the unit housing. The blower motor can be removed from the vehicle without having to remove the unit housing assembly.

REMOVAL
1. Remove right side scuff plate.
2. Pull back carpet.
3. Cut wheel housing silencer in line with blower motor wiring.
4. Disconnect blower motor wiring connector.
5. RHD vehicle remove the motor cover.

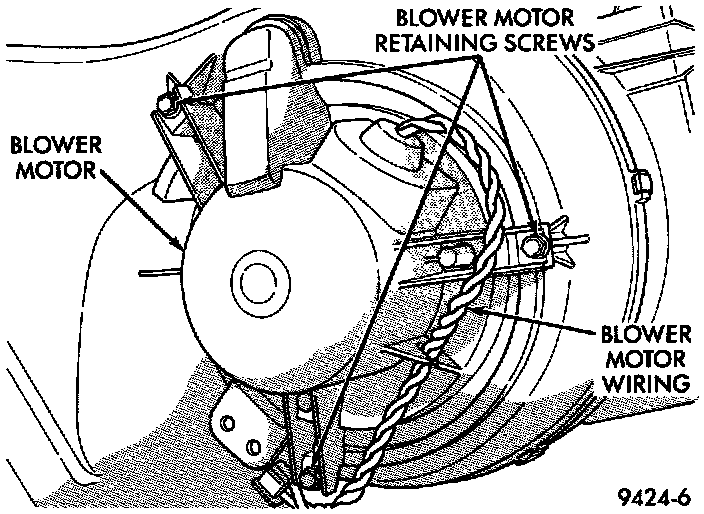

Blower Motor Retaining Screws:

6. Remove three blower motor retaining screws.
7. Lower blower motor assembly from unit housing.

INSTALLATION
- For installation, reverse the above procedures. Then tape silencer into position.
