With Hydraulic Tensioner

- Remove number one spark plug.
- Using a dial indicator, set number one cylinder to TDC on the compression stroke.

Timing Belt System-With Hydraulic Tensioner:





- Remove the access plug from the outer timing belt cover.

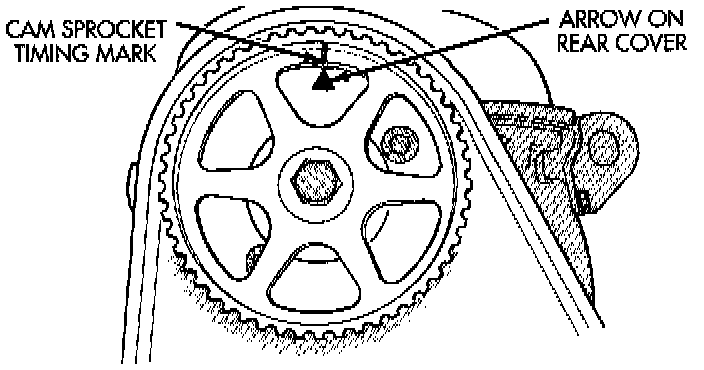

Camshaft Timing Marks:





- Check the timing mark on the camshaft sprocket, it should align with the arrow on the rear belt cover.
