Fan Blade: Service and Repair

NOTE: There are no repairs to be made to the fan. If the fan is warped, cracked, or otherwise damaged, it must be replaced with only the recommended part for adequate strength, performance and safety.

REMOVAL

Servicing Radiator Fan:

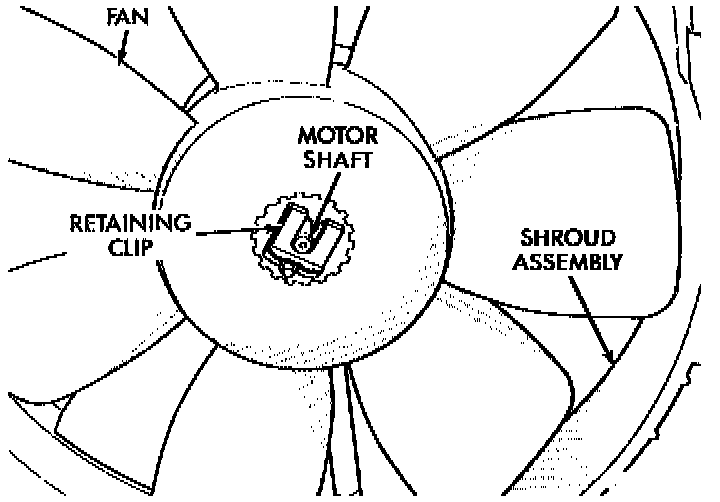

To remove fan from motor shaft, bench support the motor and motor shaft, while removing the fan retaining clip, so that the shaft and motor will not be damaged by excessive force. Do not permit the fan blades to touch the bench.

NOTE: Surface burr removal may be required to remove fan from motor shaft.

INSTALLATION
To install fan on motor shaft, slide the fan over shaft. Support motor and shaft as above while installing fen retraining relic
