COOLING SYSTEM
The cooling system consists of an engine cooling module, thermostat, coolant, and a water pump to circulate the coolant. The engine cooling module may consist of a radiator, electric fan motor, fan, shroud, coolant reserve system, transmission oil cooler, hoses, clamps, air condition condenser and transmission oil lines.

When The Engine Is Cold:
The thermostat is closed; the cooling system has no flow through the radiator. The coolant flows through the engine, heater system and bypass.

Cooling System Operation:

When The Engine Is Warm:

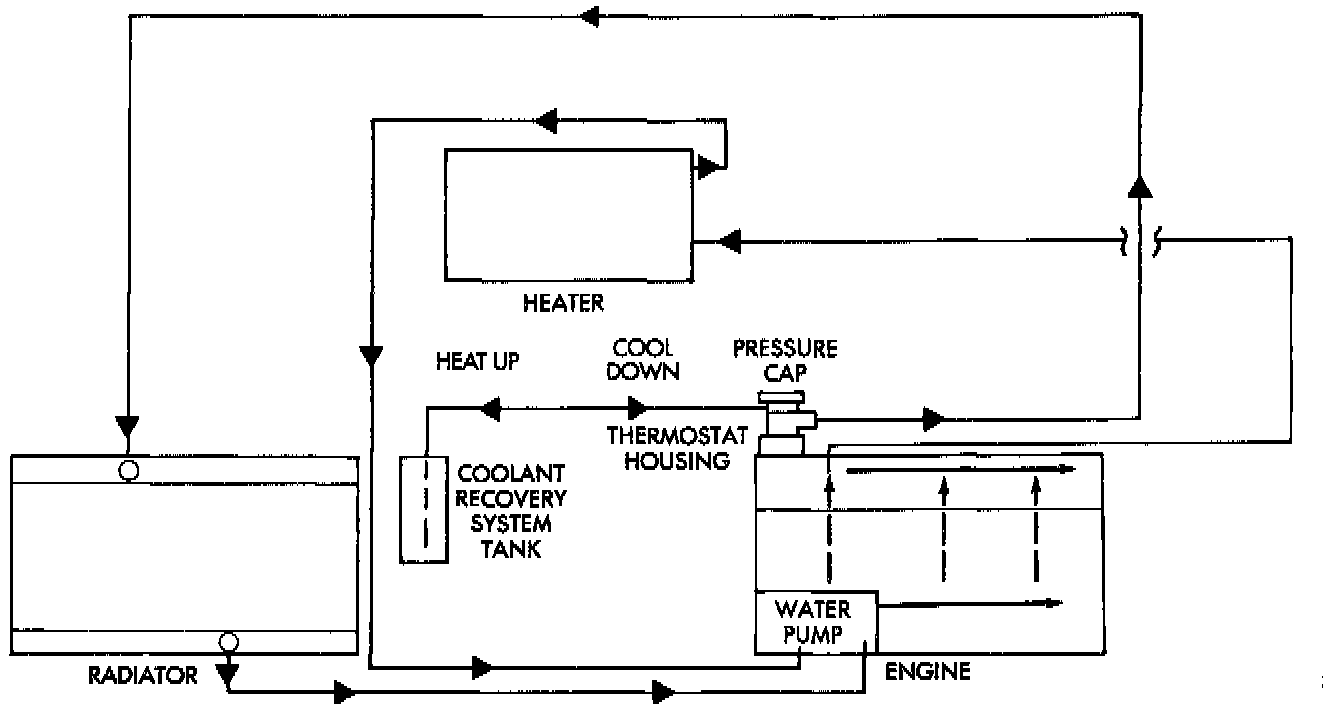

Thermostat is open; the cooling system has flow through radiator, engine, heater system and bypass. Coolant flow circuit for the 2.0L engine is shown.

During any reassembly procedures all pipe fittings in water jacket, and water-box require cleaning and application of thread sealant for entire length of threads.
